Product overview

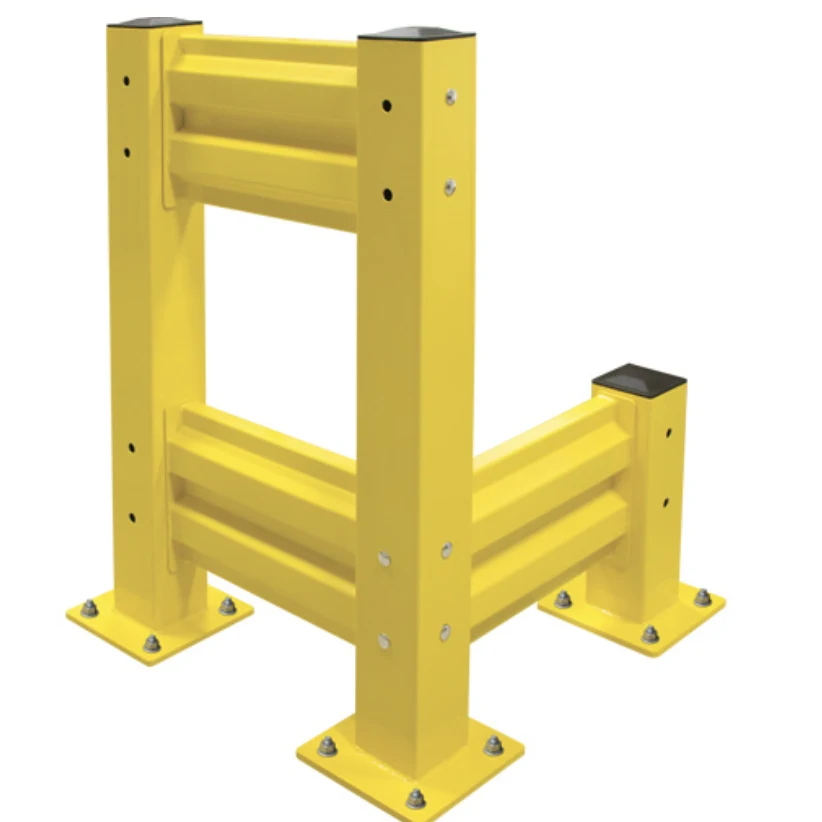

Industrial safety guard rails create a strong, highly visible barrier between vehicle traffic and the people, equipment and structures you need to protect. The system is modular: choose rail lengths to suit your layout, then connect them with single or double height posts anchored to the floor.
Construction and features
- Steel construction with a durable powder-coated safety yellow finish for high visibility.
- Rail profile: 12 inches high by 3 inches wide.
- Posts measure 5 x 5 inches and include mounting hardware and a plastic cap.
- Floor anchors are sold separately.
- Modular design lets you extend or reconfigure the system as your floor plan changes.

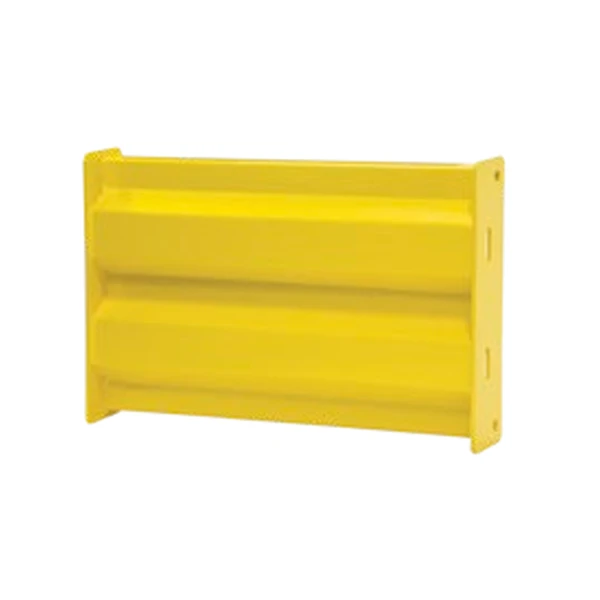

Guard rails
Overall length is the actual rail length; nominal length is the post-to-post spacing the rail is designed for.
Lengths are in inches.
| Part number | Overall length (in) | Nominal length (in) |
|---|---|---|
| JKBI237 | 19 | 24 |
| JKBI238 | 31 | 36 |
| JKBI239 | 43 | 48 |
| JKBI240 | 55 | 60 |
| JKBI241 | 67 | 72 |
| JKBI242 | 79 | 84 |
| JKBI243 | 91 | 96 |
| JKBI244 | 103 | 108 |
| JKBI245 | 115 | 120 |

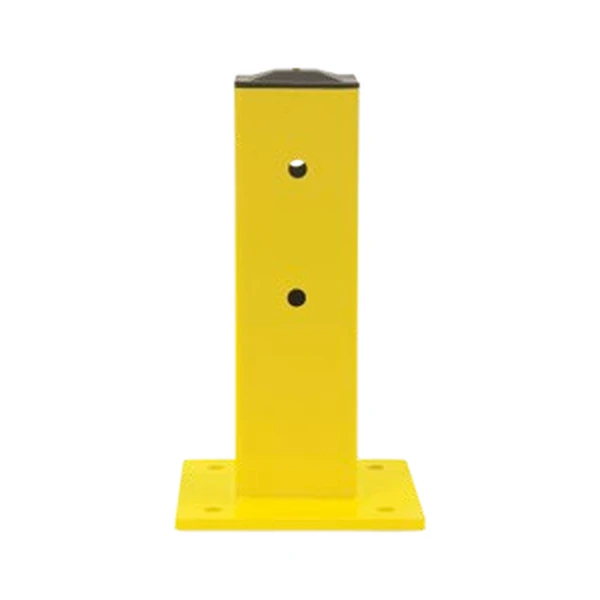

Guard rail posts
Use single posts for one rail level and double posts for two rail levels.
Heights are in inches.
| Part number | Type | Overall height (in) |
|---|---|---|
| JKBI246 | Single | 17 |
| JKBI247 | Double | 44 |
Ordering notes
Send us your run lengths, the number of corners and ends, and whether you need one or two rail levels, and we will put together a complete parts list. Contact us for floor anchors and custom layouts.
