Product overview

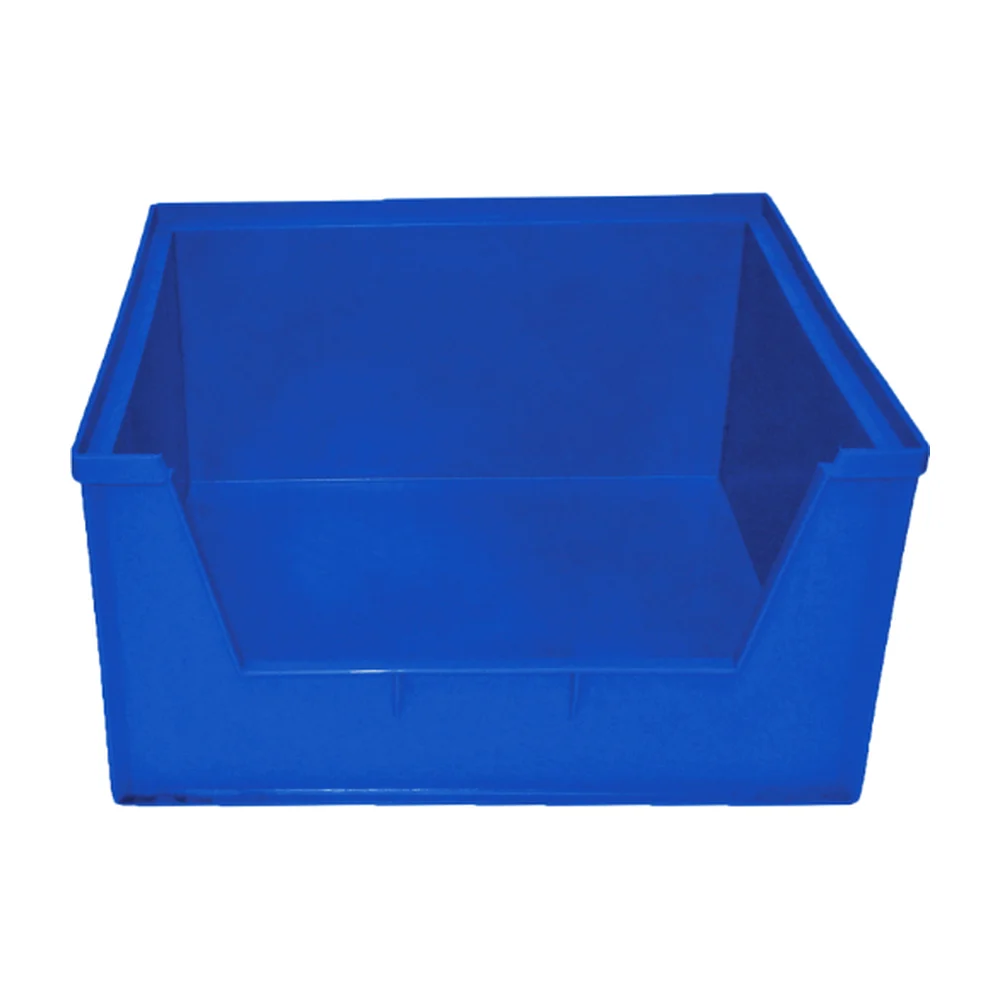

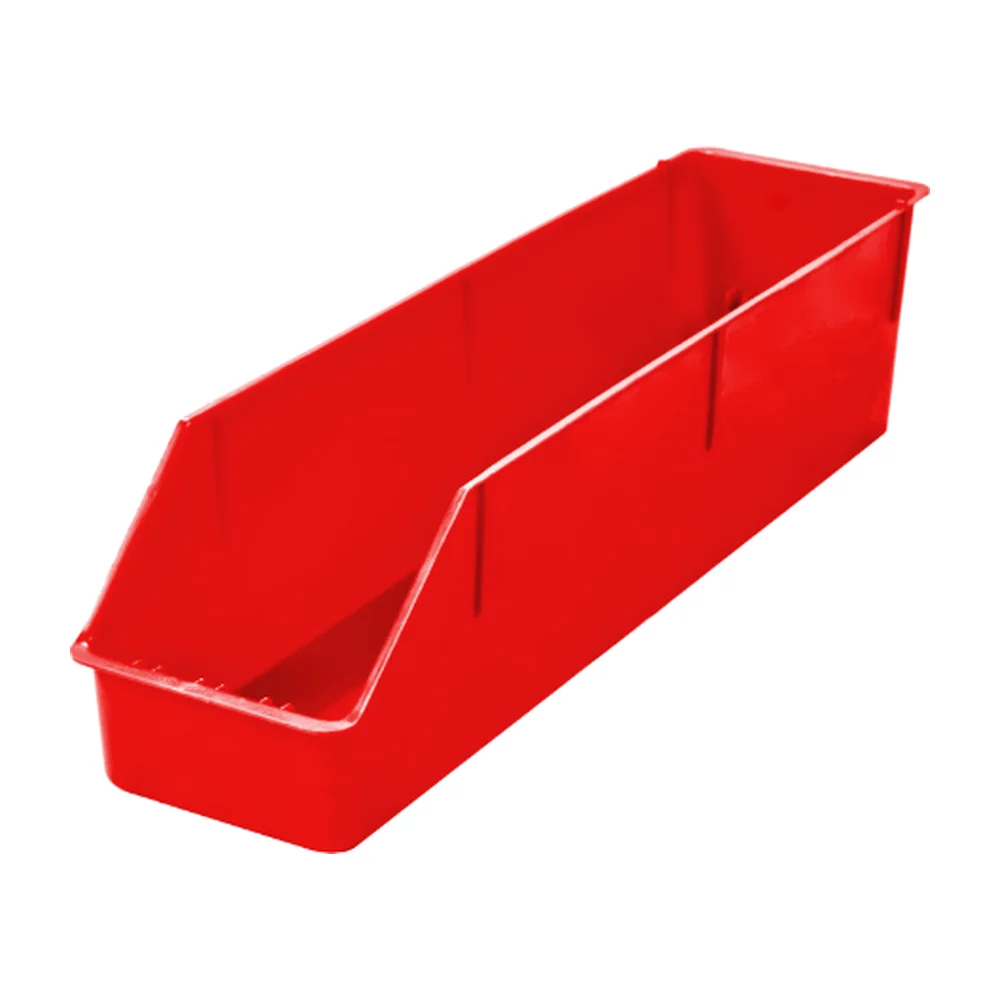

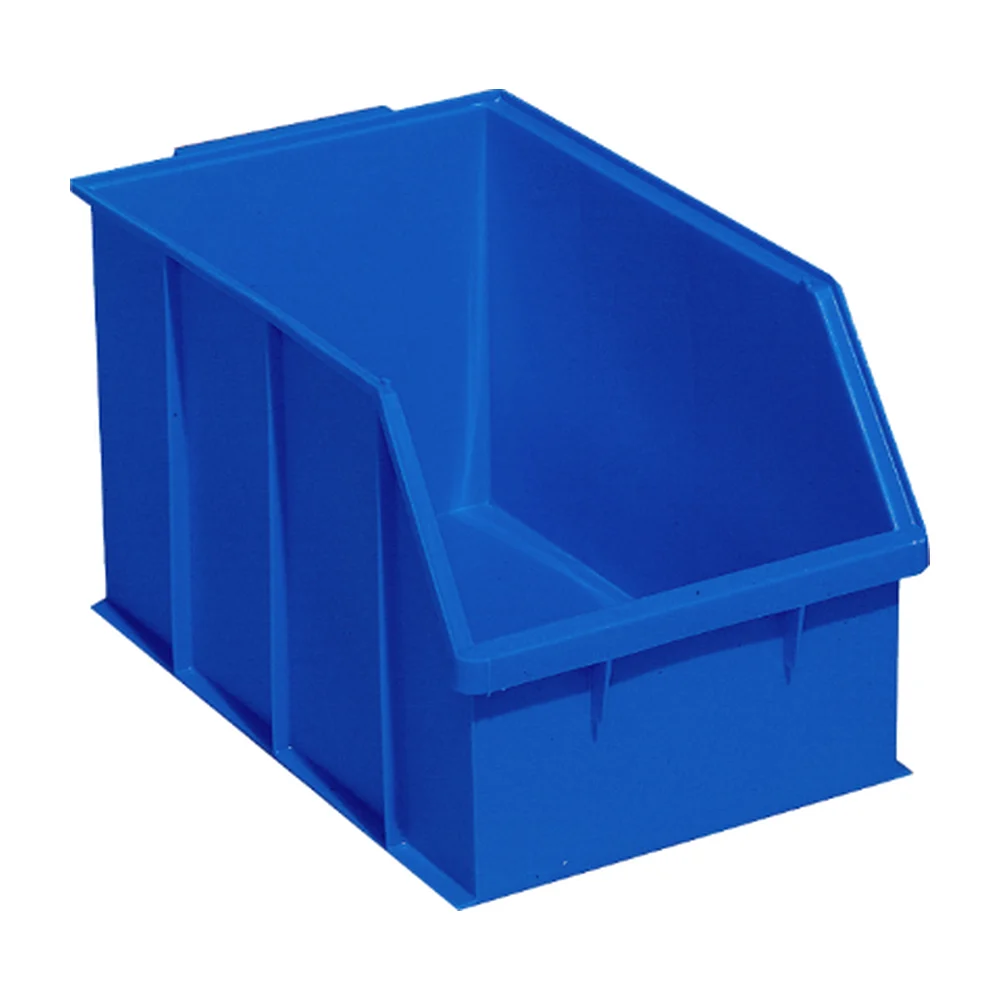

High-visibility stack and shelf bins have an extra-large hopper front, so you can see and reach the contents from the aisle. The long JABW30550 is ideal for long, narrow parts on 24 inch shelving. The JABW30600 and JABW30605 are big, stackable bins for bulkier items on shelving or the floor. All are resistant to weak acids, alkalis, water and corrosion.
Construction and features
- Large hoppered front for visibility and quick picking
- Works with standard steel and wire shelving and racks
- JABW30600 and JABW30605 stack securely
- Large label area
- JABW30550 available with rear holes for bin chaining (minimum order)
- Colours: JABW30550 in blue, red, yellow or beige; JABW30600 and JABW30605 in blue
Stack and shelf bin sizes
Scroll sideways to see all specification columns. L is the front-to-back depth. Capacity is per bin with an evenly distributed load. Order in full carton quantities.
| Part number | Outside L × W × H (in) | Inside L × W × H (in) | Capacity (lbs) | Carton qty |
|---|---|---|---|---|
| JABW30550 | ideal × for × long | items; × optional × rear-hole | available | for |
| JABW30600 | 18 × 10-3/8 × 10 | 15-3/4 × 9-1/8 × 9-13/16 | 50 | 4 |
| JABW30605 | 16 × 16 × 8-1/8 | 14-11/16 × 14-11/16 × 7-11/16 | 50 | 1 |
Ordering notes
Include the part numbers, colours and quantities you need. Use the inquiry form below and include your delivery location.
