Heavy-Duty Pallet Trucks
The listed models provide different rated capacities within a standard-size fork footprint. High load weight also makes the floor, wheels, pallet condition and safe manual handling procedure important selection considerations.
Features and selection
- Several heavy-load ratings
- Manual lift and travel
- Model-specific fork and wheel details
Provide the actual loaded weight, pallet construction and floor conditions. Confirm that manual movement is appropriate for the application rather than selecting on capacity alone.
Models and specifications
Select a JB part number to view its photo. Representative photos may differ from the selected size or configuration. On smaller screens, swipe the table to see all columns.
| JB part number / photo | Rated capacity | Height / range | Platform or forks | Model details |
|---|---|---|---|---|
| JTBA-HPTAC30DR2748 | 6,600 lb | Lowered 2.9 in; raised height to be confirmed | 27 in W × 48 in L (overall fork width × fork length) | Polyurethane wheels and heavy-duty load rollers |

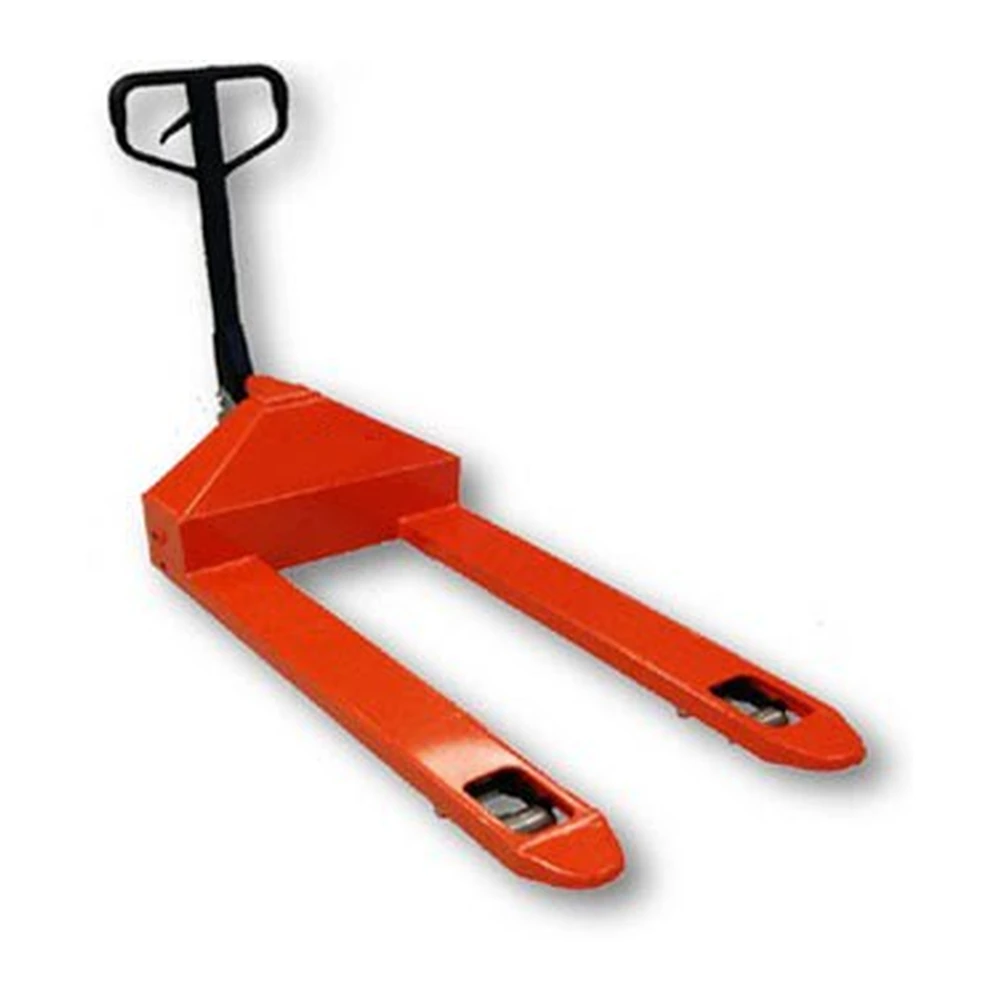

| JTBA-HPTAC35DR2748 | 7,700 lb | Lowered 3.3 in; raised height to be confirmed | 27 in W × 48 in L (overall fork width × fork length) | Polyurethane wheels and heavy-duty load rollers |

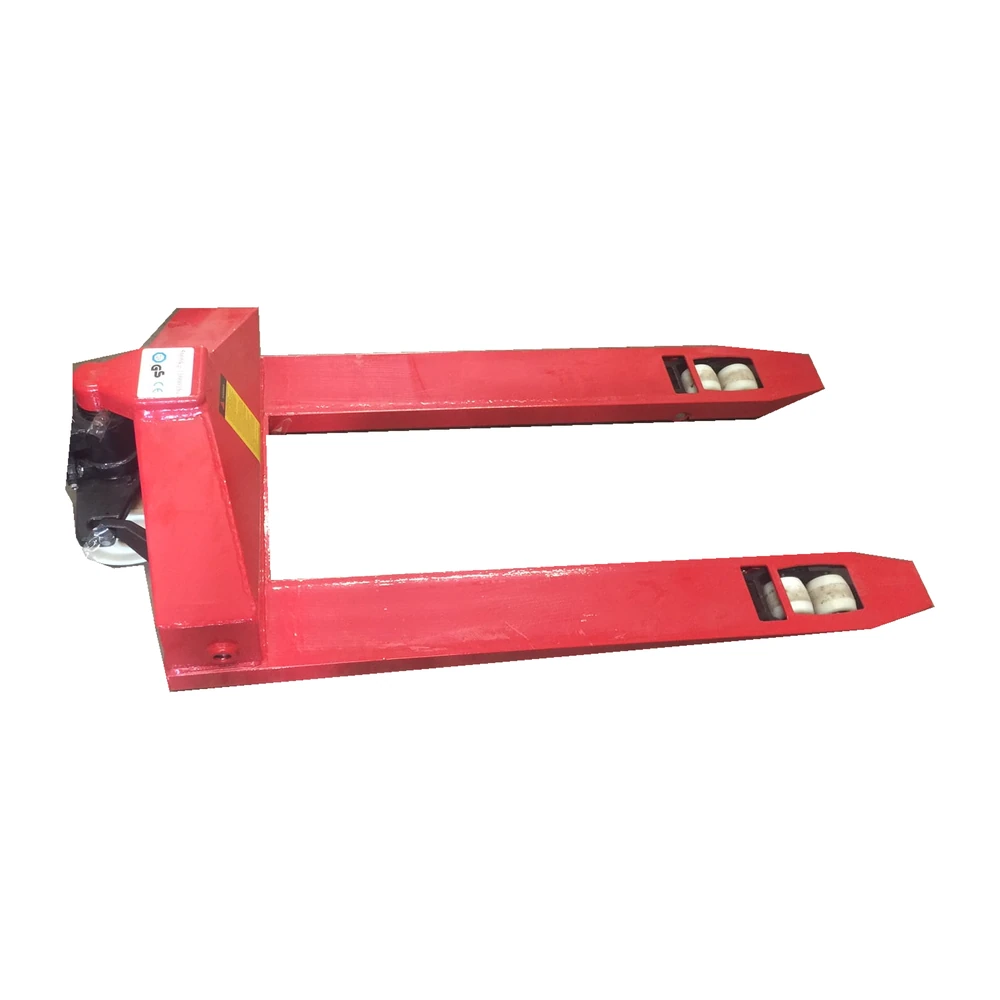

| JTBA-HPTAC502748 | 11,000 lb | Lowered 3.3 in; raised height to be confirmed | 27 in W × 48 in L (overall fork width × fork length) | Polyurethane wheels and heavy-duty load rollers |
Dimensions are in inches unless otherwise stated. Capacity is subject to the selected model’s load centre, load distribution and operating instructions. Height-specific ratings are not interchangeable.
Common questions
Does rated capacity establish acceptable push force?
No. Load rating does not by itself determine the effort required to move the load.
Are all heavy-duty models identical apart from capacity?
No. Confirm wheel and construction details for the selected JB number.
Request a quote
Send the JB part number, quantity, load weight, load dimensions and required working height. Include your delivery postal code and any pallet-base, power-supply or operating-space requirements so we can check the configuration.
