Product overview
Move loads with a heavy-duty hand truck featuring a loop handle and basket-style back. Its double-reinforced toe plate provides a broad support surface, and the steel tube frame has a durable blue powder coat finish.
Construction and features
- Basket-style back
- 1-inch by 14-gauge tube construction
- Double-reinforced toe plate measuring 14 by 8 inches
- Loop handle
- Blue powder coat finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Overall Height (in) | Weight (lbs) | Toe Plate | Capacity (lbs) | Material | Handle Type | Finish | Colour | Wheel Size (in) | Wheel Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MLB-8C | 19 | 17 | 47 | 47 | 29 | 14 x 8 | 1000 | Steel | Loop | Powder Coat | Blue | 8 x 2 | Cushion Rubber | 19 x 17 x 47 |
| MLB-10C | 19 | 19 | 47 | 47 | 34 | 14 x 8 | 1000 | Steel | Loop | Powder Coat | Blue | 10 x 2.5 | Cushion Rubber | 19 x 19 x 47 |
| MLB-10FF | 22 | 20 | 47 | 47 | 29 | 14 x 8 | 600 | Not listed | Loop | Powder Coat | Blue | 10.5 x 4 | Flat Free Polyurethane | Not listed |
| MLB-10PN | 19 | 19 | 47 | 47 | 28 | 14 x 8 | 700 | Not listed | Loop | Powder Coat | Blue | 10 x 3 | Pneumatic | 21 x 20 x 47 |
| MLB-FDN-8C | 19 | 17 | 47 | 47 | 34 | 14 x 8 | 1000 | Steel | Loop | Powder Coat | Blue | 8 x 2 | Cushion Rubber | 19 x 17 x 47 |
| MLB-FDN-10C | 19 | 19 | 47 | 47 | 34 | 14 x 8 | 1000 | Steel | Loop | Powder Coat | Blue | 10 x 2.5 | Cushion Rubber | 19 x 19 x 47 |
| MLB-FDN-10PN | 19 | 19 | 47 | 47 | 34 | 14 x 8 | 700 | Steel | Loop | Powder Coat | Blue | 10 x 3 | Pneumatic | 21 x 20 x 47 |
| MLB-LL-8C | 19 | 17 | 41 | 41 | 26 | 14 x 8 | 1000 | Steel | Loop | Powder Coat | Blue | 8 x 2 | Cushion Rubber | 20 x 17 x 41 |
| MLB-LL-10PN | 21 | 20 | 41 | 41 | 26 | 14 x 8 | 700 | Steel | Loop | Powder Coat | Blue | 10 x 3 | Pneumatic | 21 x 20 x 41 |
| MLB-LL-FDN-8C | 19 | 17 | 41 | 41 | 32 | 14 x 8 | 1000 | Steel | Loop | Powder Coat | Blue | 8 x 2 | Cushion Rubber | 20 x 17 x 41 |
| MLB-LL-FDN-10PN | 21 | 20 | 41 | 41 | 32 | 14 x 8 | 700 | Steel | Loop | Powder Coat | Blue | 10 x 3 | Pneumatic | 21 x 20 x 47 |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Toe plate extension, up to 15 inches maximum depth
- Wheel guards
Photo and ordering notes

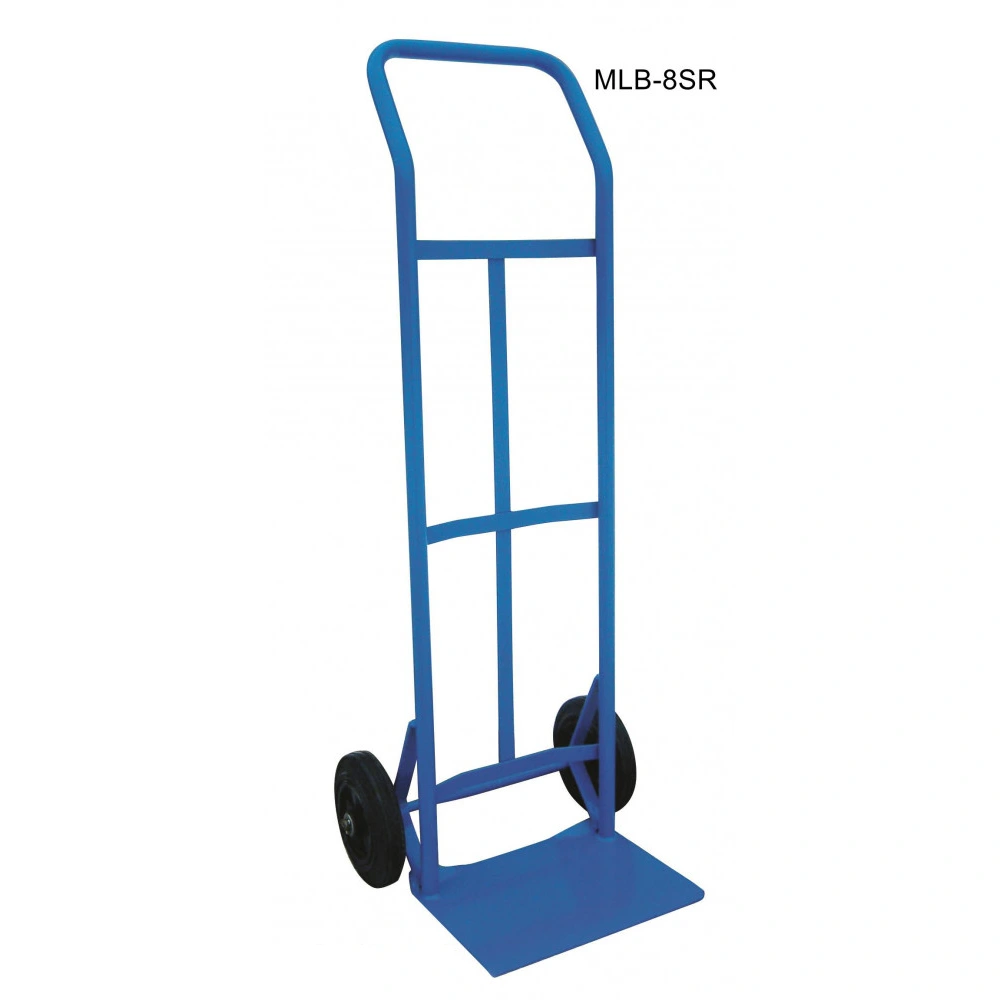

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
