Product overview
This heavy-duty hand truck combines a double-grip handle with a basket-style back for moving loads. Its steel tube construction and reinforced toe plate provide a robust frame, with wheel configurations available to suit different handling needs.
Construction and features
- 1-inch by 14-gauge tube construction
- Double-reinforced toe plate measuring 14 by 8 inches
- 1,000 lb. frame capacity
- Available with 8-inch cushion wheels or 10-inch cushion or pneumatic wheels
- Blue powder coat finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Overall Height (in) | Weight (lbs) | Toe Plate | Capacity (lbs) | Material | Handle Type | Finish | Colour | Wheel Size (in) | Wheel Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MDB-8C | 19 | 17 | 47 | 47 | 29 | 14 x 8 | 1000 | Steel | Double Grip | Powder Coat | Blue | 8 x 2-1/2 | Cushion Rubber | 19 x 17 x 47 |
| MDB-10C | 19 | 19 | 47 | 47 | 34 | 14 x 8 | 1000 | Steel | Double Grip | Powder Coat | Blue | 10 x 2.5 | Cushion Rubber | 19 x 19 x 47 |
| MDB-10PN | 21 | 20 | 47 | 47 | 28 | 14 x 8 | 700 | Steel | Double Grip | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 21 x 20 x 47 |
| MDB-FDN-8C | 20 | 17 | 47 | 47 | 35 | 14 x 8 | 1000 | Steel | Double Grip | Powder Coat | Blue | 8 x 2-1/2 | Cushion Rubber | 20 x 17 x 47 |
| MDB-FDN-10C | 20 | 19 | 47 | 47 | 40 | 14 x 8 | 1000 | Steel | Double Grip | Powder Coat | Blue | 10 x 2.5 | Cushion Rubber | 20 x 19 x 47 |
| MDB-FDN-10PN | 21 | 20 | 47 | 47 | 34 | 14 x 8 | 700 | Steel | Double Grip | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 21 x 20 x 47 |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Toe plate extension, up to 15 inches maximum
- Wheel guards
Photo and ordering notes

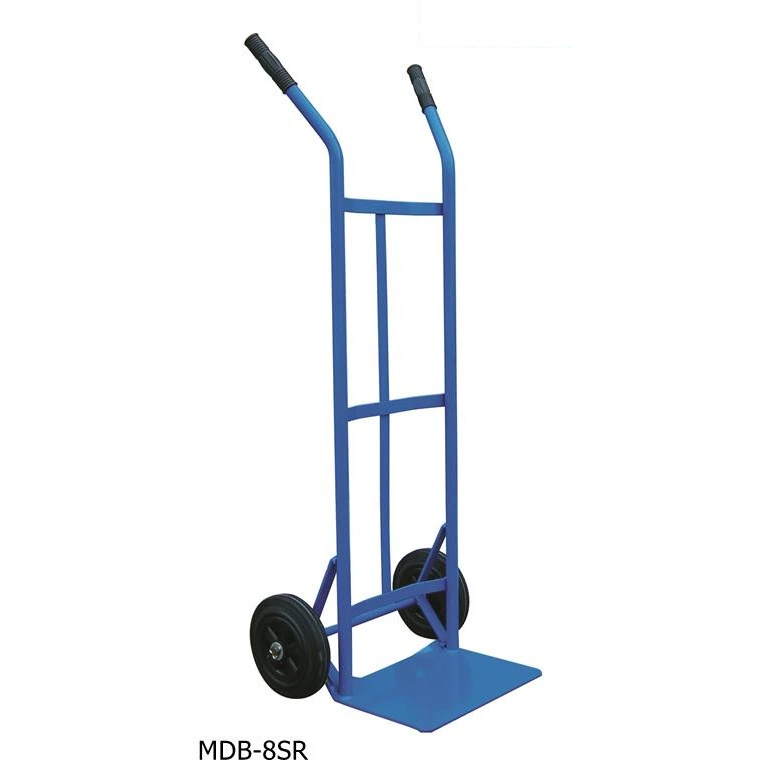

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
