Product overview
Hanging and stacking bins keep inventory organized, speed up assembly and cut down on parts handling. A full-width hanger on the back lets each bin hang securely from louvered panels, rails, racks and carts. An anti-slide stop and an extra-wide stacking ledge keep stacked bins stable. The open hopper front makes small parts easy to grab, and reinforced side ribs keep the bin from spreading under load. A matching nest-and-stack version (JABKW210 and JABKW220) nests when empty to save space.
Construction and features
- Hangs from louvered panels, rails, racks and carts; also stacks and sits on shelving
- Anti-slide stop and extra-wide stacking ledge
- Open hopper front for easy picking
- Reinforced side ribs prevent spreading
- Large front label area for labels and bar codes
- Resistant to weak acids and alkalis; waterproof and rust-proof

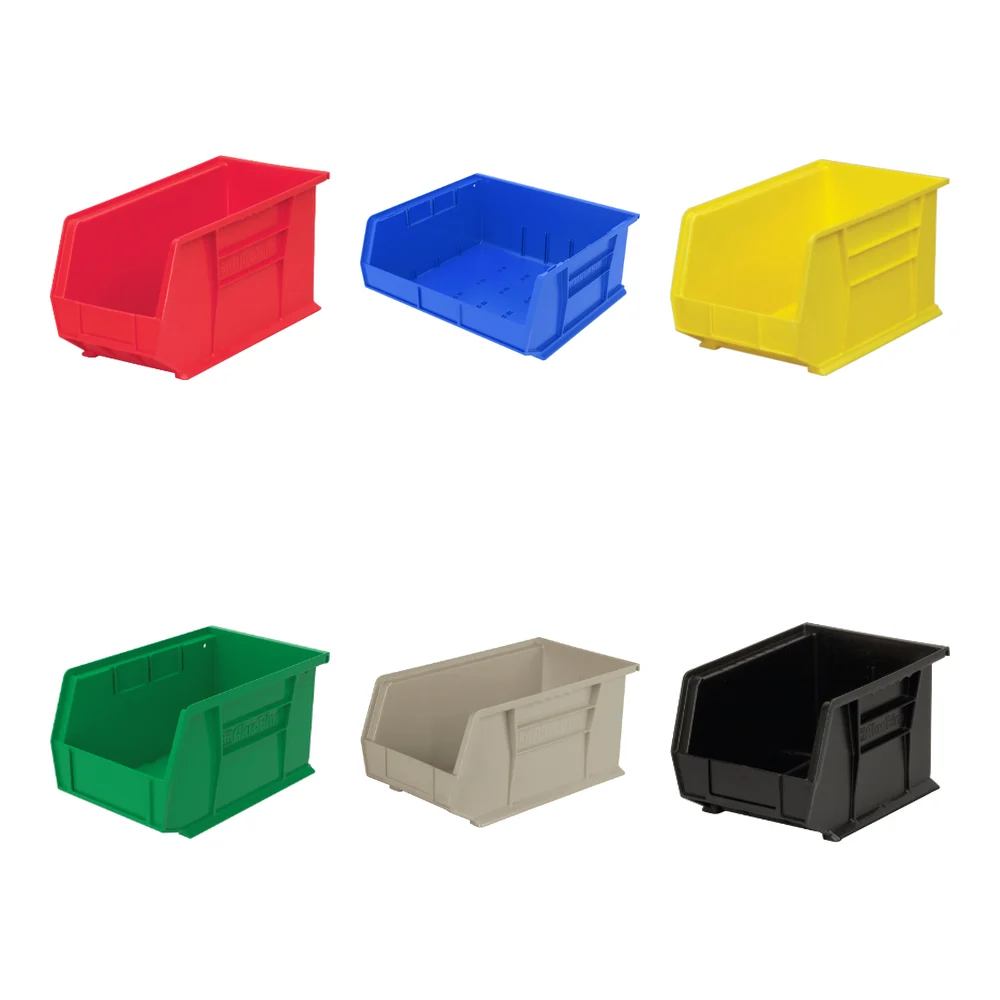

- Standard colours: red, blue, yellow, stone, green, black and clear
Hanging and stacking bin sizes
Card stock holders: JB29301 for JB30210 to JB30224, JB29302 for JB30230 to JB30255.
Scroll sideways to see all specification columns. L is the front-to-back depth. Capacity is per bin with an evenly distributed load. Order in full carton quantities. JABKW210 and JABKW220 are nesting versions in blue.
| Part number | Outside L × W × H (in) | Inside L × W × H (in) | Capacity (lbs) | Carton qty | Dividers |
|---|---|---|---|---|---|
| JB30210 | 5-3/8 × 4-1/8 × 3 | 4-3/4 × 3-7/16 × 2-13/16 | 10 | 24 | JB40210 |
| JB30220 | 7-3/8 × 4-1/8 × 3 | 6-3/4 × 3-7/16 × 2-13/16 | 10 | 24 | JB40220 |
| JB30224 | 10-7/8 × 4-1/8 × 4 | 10-1/4 × 3-3/16 × 3-3/4 | 20 | 12 | JB40224 |
| JB30230 | 10-7/8 × 5-1/2 × 5 | 10-1/4 × 4-3/8 × 4-3/4 | 30 | 12 | JB40230, JB41230 |
| JB30234 | 14-3/4 × 5-1/2 × 5 | 14-1/16 × 4-3/8 × 4-3/4 | 50 | 12 | JB40234 |
| JB30235 | 10-7/8 × 11 × 5 | 10-1/4 × 10 × 4-3/4 | 50 | 6 | JB40230 |
| JB30237 | 9-1/4 × 6 × 5 | 8-9/16 × 4-7/8 × 4-3/4 | 20 | 12 | – |
| JB30239 | 10-7/8 × 8-1/4 × 7 | 10 × 6-9/16 × 6-3/4 | 50 | 6 | JB40239 |
| JB30240 | 14-3/4 × 8-1/4 × 7 | 14 × 6-9/16 × 6-3/4 | 60 | 12 | JB40245 |
| JB30250 | 14-3/4 × 16-1/2 × 7 | 14 × 14-3/4 × 6-3/4 | 75 | 6 | JB40245, JB41250 |
| JB30255 | 10-7/8 × 16-1/2 × 5 | 9-3/4 × 15 × 4-3/4 | 60 | 6 | JB40230 |
| JB30260 | 18 × 11 × 10 | 17 × 9-1/2 × 9-3/4 | 60 | 6 | JB40260 |
| JB30265 | 18 × 8-1/4 × 9 | 17-1/8 × 6-3/4 × 8-1/4 | 60 | 6 | JB40265 |
| JB30270 | 18 × 16-1/2 × 11 | 17-1/8 × 14-3/4 × 10-1/4 | 75 | 3 | JB40270, JB41270 |
| JB30320 | 8-5/8 × 33 × 5 | 7 × 31-1/2 × 4-3/16 | 80 | 4 | JB40321, JB40220 |
| JABKW210 | 5-3/8 × 4-1/8 × 3 | – | – | 36 | – |
| JABKW220 | 7-3/8 × 4-1/8 × 3 | – | – | 36 | – |
Ordering notes
Include part numbers, colours and quantities. Pair the bins with our louvered wall panels, floor racks or bench racks, and add dividers or clear lids from the Bin Accessories pages. Use the inquiry form below and include your delivery location.
