Product overview

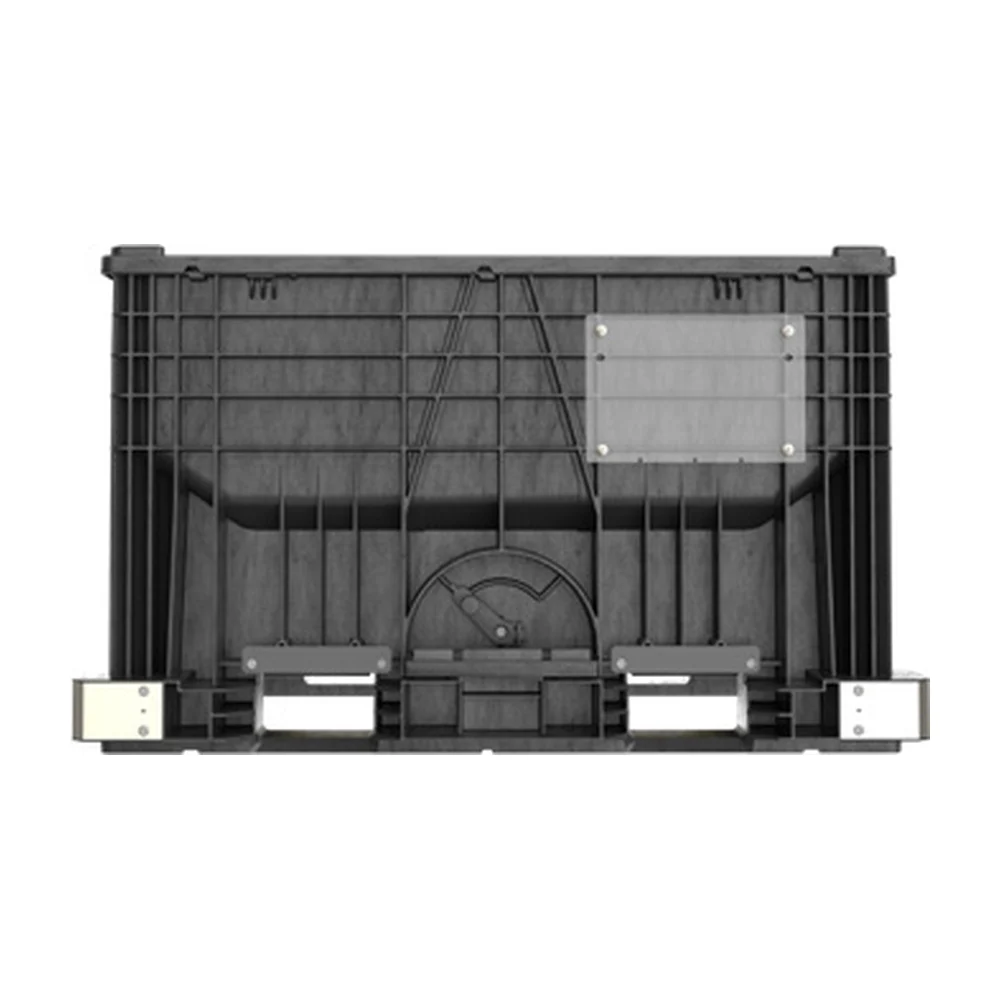

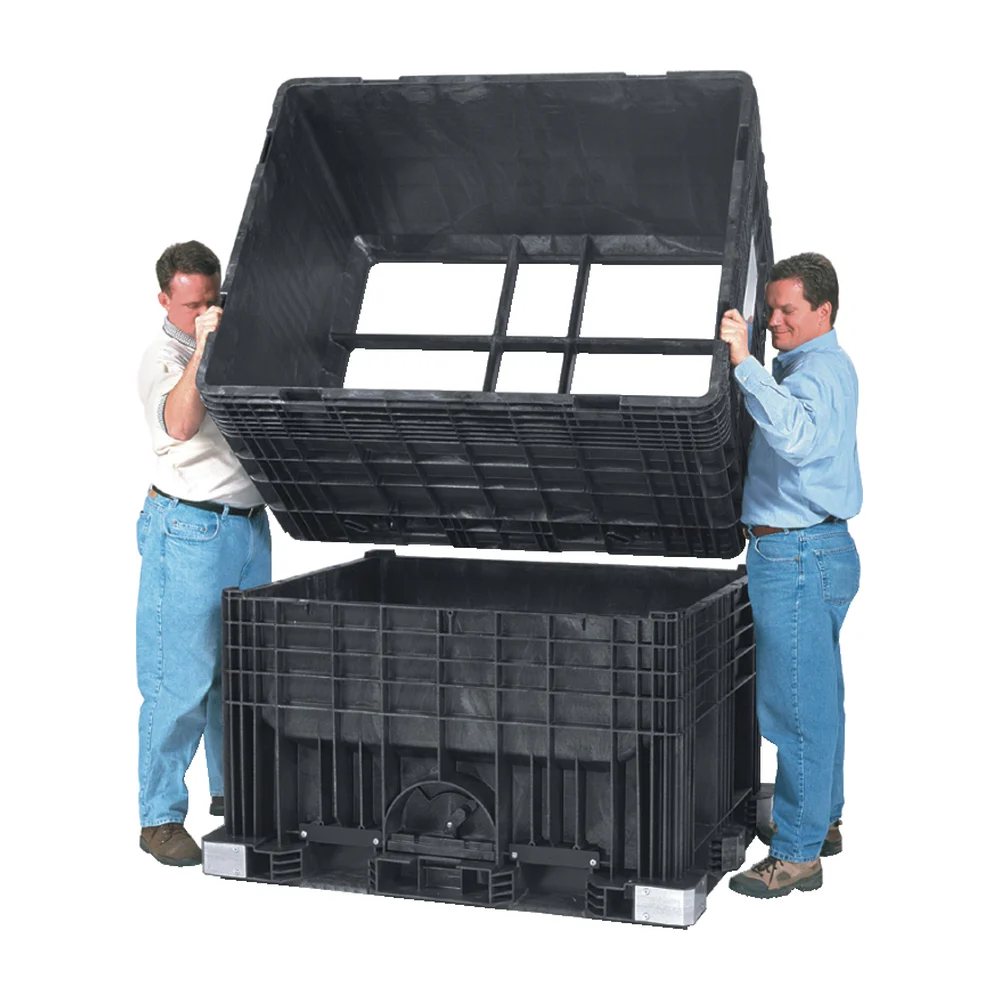

These dispensing containers are designed to move and empty free-flowing materials quickly and cleanly. The interior is funnel-shaped at 35° with a large discharge port, so a load can empty completely in as little as 30 seconds. A side access door allows one-person partial or full dispensing, and a tight-fitting lid keeps out dirt. Reinforced crossbars spread the load, solid oak base rails give forks a better grip, and recessed latches lock the ring to the base. Extension rings increase the height and capacity.
Construction and features
- 35° funnel interior with large discharge port
- Side access door for one-person dispensing
- Tight-fitting lid included
- Structural foam HDPE; works from -20°F to 120°F
- Stackable and nestable, 1.6:1 return ratio
- Capacity 1,000 to 3,000 lbs; colour: black
Dispensing container sizes
Scroll sideways to see all specification columns. Taller models include one or two extension rings.
| Part number | Outside L × W × H (in) | Inside L × W (in) | Capacity (lbs) | Volume (cu ft) |
|---|---|---|---|---|
| JCBF57453200 | 56-1/2 × 45 × 33 | 49-1/2 × 38 | 1,000 | 19.8 |
| JCBF57454100 | 56-1/2 × 45 × 42 | 49-1/2 × 38 | 1,500 | 29.5 |
| JCBF57456500 | 56-1/2 × 45 × 64 | 49-1/2 × 38 | 2,800 | 58.3 |
| JCBF57457400 | 56-1/2 × 45 × 73 | 49-1/2 × 38 | 3,000 | 68.0 |
Ordering notes
Tell us the material you are handling, the load weight and quantity. Use the inquiry form below and include your delivery location.
