Product overview

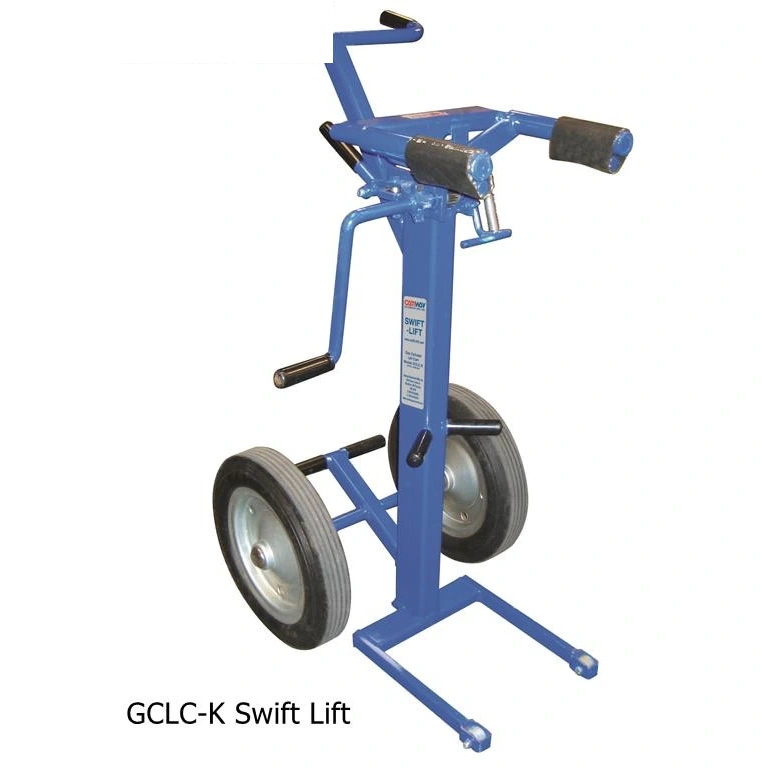

This lift cart is designed to move gas cylinders and raise them onto or off welding machines. Its mechanical winch provides an 18-inch lift, while the balanced design and double-grip handle support controlled handling indoors or outdoors.
Construction and features
- For K-size cylinders measuring 9 to 10 inches in diameter
- Mechanical winch raises cylinders 18 inches
- Designed for mounting and dismounting cylinders on welding machines
- All-welded construction
- Blue powder-coat finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Weight (lbs) | Capacity (lbs) | Handle Type | Finish | Colour | Wheel Size (in) | Wheel Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GCLC-K | 21 | 27 | 43 | 100 | 220 | Double Grip | Powder Coat | Blue | 15 x 3 | Solid Rubber | 21 x 27 x 43 |
Application notes
Use only with K-size cylinders measuring 9 to 10 inches in diameter.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
