Product overview
This two-cylinder cart is built for moving cylinders with a centre fire-rated barrier between them. Welded steel construction, securement chains and a lifting lug support handling, while the integrated tray keeps tools close at hand.
Construction and features
- Holds two cylinders with safety chains for restraint
- Centre fire-rated wall separates the cylinders
- Integrated lifting lug
- Welded steel frame
- Tool tray measures 5 inches wide by 25.5 inches long
- Blue powder-coat finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Weight (lbs) | Toe Plate | Capacity (lbs) | Handle Type | Finish | Colour | Wheel Size (in) | Wheel Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

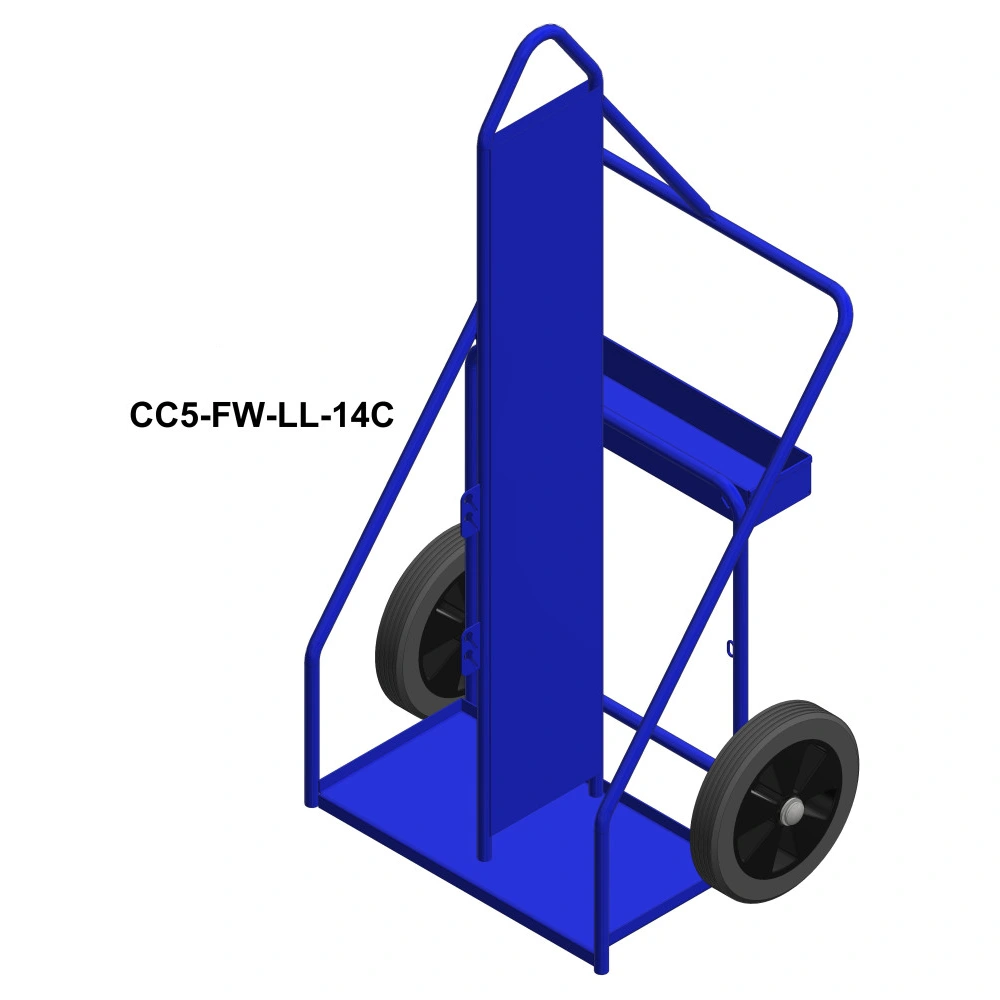

| CC5-FW-LL-14C | 35 | 26 | 66 | 80 | 26 x 13-1/2 | 300 / 800 | Loop | Powder Coat | Blue | 14 x 3 | Cushion Rubber | 35 x 26 x 66 |
| CC5-FW-LL-16PN | 35 | 26 | 66 | 80 | 26 x 13-1/2 | 300 / 800 | Loop | Powder Coat | Blue | 16 x 3 | Pneumatic | 35 x 26 x 66 |
Application notes
Secure cylinders with the safety chains during transport.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
