Product overview
These extra-heavy-duty platform trucks use a reinforced steel deck for moving materials across facilities. The removable handle fits at either end, allowing the truck to be configured for the direction of travel, while welded construction and a blue powder coat finish complete the design.
Construction and features
- Deck is reinforced with 12-gauge steel.
- Removable 1-5/16-inch-diameter tube handle fits at either end.
- Welded construction supports material handling.
- Blue powder coat finish.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Deck Height (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Handle Type | Finish | Colour | Caster Size (in) | Caster Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24x48SDEH-8CIC | 24 | 48 | 12-1/2 | 39 | 114 | 3000 | Removable | Powder Coat | Blue | 8×2 | Crown Cast Iron | 52 x 24 x 18 |
| 24x48SDEH-8PH | 24 | 48 | 12-1/4 | 39 | 114 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 52 x 24 x 18 |
| 24x48SDEH-8PUP | 24 | 48 | 12-1/2 | 39 | 114 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Polyurethane on Plastic | 52 x 24 x 18 |
| 24x60SDEH-8CIC | 24 | 60 | 12-1/2 | 39 | 126 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Crown Cast Iron | 64 x 24 x 18 |
| 24x60SDEH-8PH | 24 | 60 | 12-1/2 | 39 | 126 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 64 x 24 x 18 |
| 24x60SDEH-8PUP | 24 | 60 | 12-1/2 | 39 | 126 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Polyurethane on Plastic | 64 x 24 x 18 |
| 30x48SDEH-8CIC | 30 | 48 | 13 | 40 | 126 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Crown Cast Iron | 52 x 30 x 18 |
| 30x48SDEH-8PH | 30 | 48 | 13 | 40 | 126 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 52 x 30 x 18 |
| 30x48SDEH-8PUP | 30 | 48 | 13 | 40 | 126 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Polyurethane on Plastic | 52 x 30 x 18 |
| 30x60SDEH-8CIC | 30 | 60 | 13 | 40 | 138 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Crown Cast Iron | 64 x 30 x 18 |
| 30x60SDEH-8PH | 30 | 60 | 13 | 40 | 138 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 64 x 30 x 18 |
| 30x60SDEH-8PUP | 30 | 60 | 13 | 40 | 138 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Polyurethane on Plastic | 64 x 30 x 18 |
| 36x60SDEH-8CIC | 36 | 60 | 13 | 40 | 152 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Crown Cast Iron | 64 x 36 x 18 |
| 36x60SDEH-8PH | 36 | 60 | 13 | 40 | 152 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 64 x 36 x 18 |
| 36x60SDEH-8PUP | 36 | 60 | 13 | 40 | 152 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Polyurethane on Plastic | 64 x 36 x 18 |
| 36x72SDEH-8CIC | 36 | 72 | 13 | 40 | 168 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Crown Cast Iron | 76 x 36 x 18 |
| 36x72SDEH-8PH | 36 | 72 | 13 | 40 | 168 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Phenolic | 76 x 36 x 18 |
| 36x72SDEH-8PUP | 36 | 72 | 13 | 40 | 168 | 3000 | Removable | Powder Coat | Blue | 8 x 2 | Polyurethane on Plastic | 76 x 36 x 18 |
Photo and ordering notes

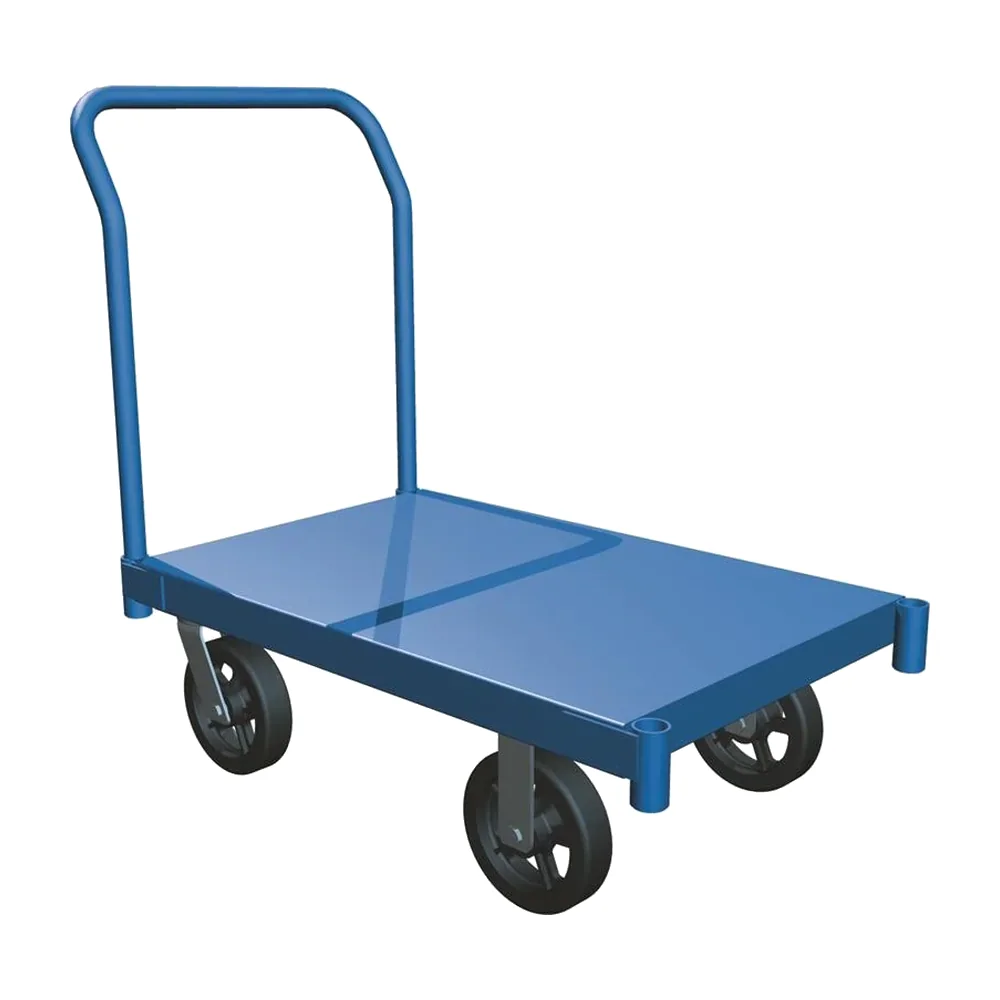

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
