Choose the right configuration
The straight upper loop and additional grips give operators more than one place to hold the truck. The open basket-style back supports the load without a solid back panel.
Model comparison
Dimensions are overall width × depth × height in inches. All models have a 14″ × 8″ toe plate; FDN models add a 24″-deep fold-down nose.
| Part number | Capacity | W × D × H (in.) | Weight | Wheel size (in.) | Wheel type | Nose |
|---|---|---|---|---|---|---|
| ERGLB-8C | 1,000 lb | 19 × 17 × 52 | 33 lb | 8 × 2-1/2 | Cushion Rubber | Standard |
| ERGLB-10PN | 700 lb | 21 × 20 × 52 | 33 lb | 10 × 3-1/2 | Pneumatic | Standard |
| ERGLB-FDN-8C | 1,000 lb | 19 × 17 × 52 | 39 lb | 8 × 2-1/2 | Cushion Rubber | 24″ fold-down |
| ERGLB-FDN-10PN | 700 lb | 21 × 20 × 52 | 40 lb | 10 × 3-1/2 | Pneumatic | 24″ fold-down |
Use the capacity listed for the selected model. A frame-capacity statement is not an increased rating for a model fitted with lower-rated wheels. Confirm the load, surface and operating requirements before ordering.
Options
Ask about wheel guards and a toe-plate extension up to 15″. Tell us the model number and how the truck will be used so we can confirm compatible options.
Photo and ordering notes

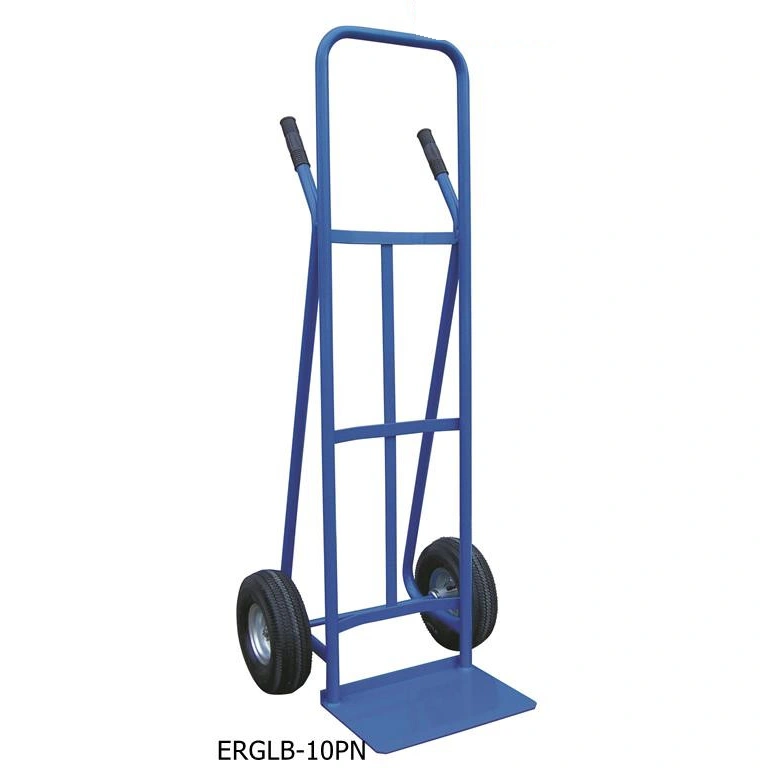

Photo shows ERGLB-10PN with pneumatic wheels. Wheel and nose configurations vary by part number. Include your preferred part number, quantity, load details and delivery location in the inquiry form.
