Economy Manual Pallet Trucks
This manual truck is a straightforward option for horizontal pallet movement. Model selection should include the pallet entry clearance, loaded weight and floor conditions.
Features and selection
- Manual lifting and travel
- Standard-size fork layout
- Published capacity and fork dimensions
Provide the pallet dimensions and loaded weight. Confirm wheel suitability for the floor and the pallet-entry clearance.
Models and specifications
Select a JB part number to view its photo. Representative photos may differ from the selected size or configuration. On smaller screens, swipe the table to see all columns.
| JB part number / photo | Rated capacity | Height / range | Platform or forks | Model details |
|---|---|---|---|---|

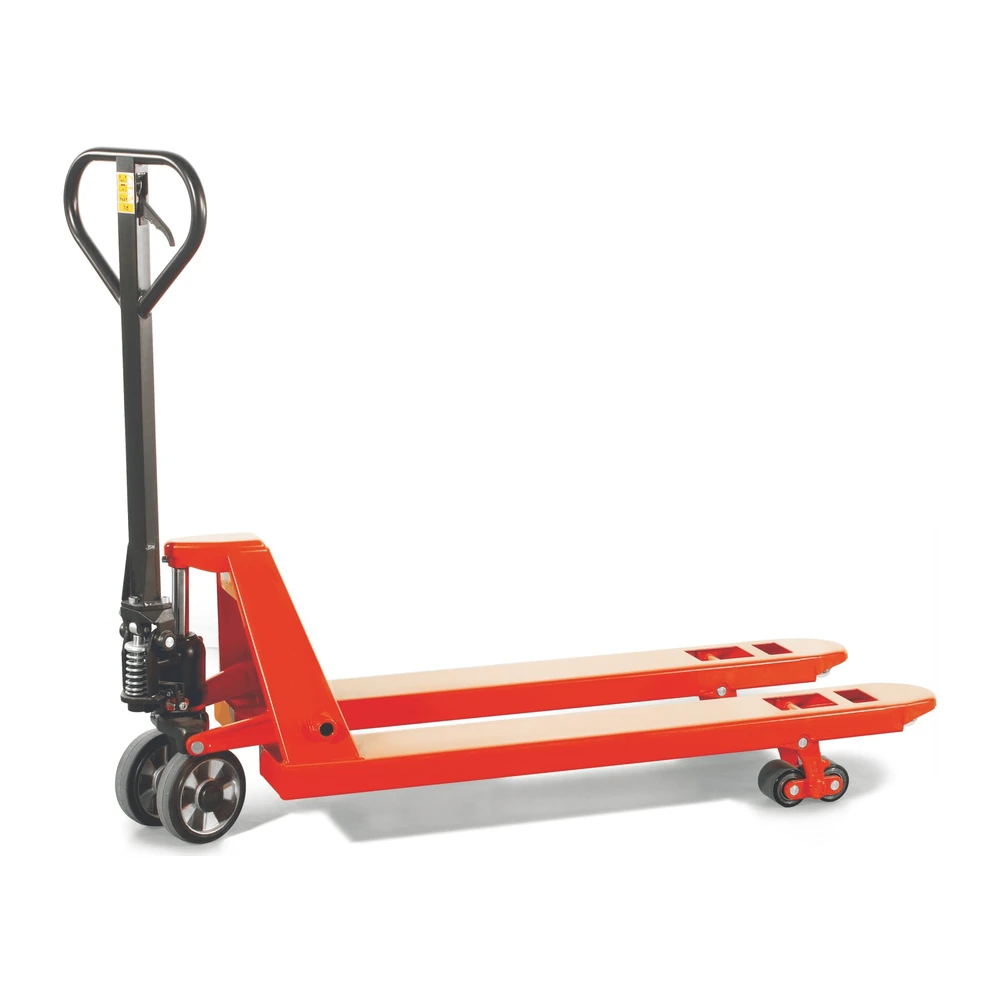

| JTBA-HPTDF252748 | 5,500 lb | Height range to be confirmed | 27 in W × 48 in L (overall fork width × fork length) | Polyurethane wheels |
Dimensions are in inches unless otherwise stated. Capacity is subject to the selected model’s load centre, load distribution and operating instructions. Height-specific ratings are not interchangeable.
Common questions
Does the product stack pallets at height?
No. A pallet truck is intended for pallet transport, not racking placement.
What dimensions should I check?
Check overall fork width, fork length and lowered fork height against the pallet.
Request a quote
Send the JB part number, quantity, load weight, load dimensions and required working height. Include your delivery postal code and any pallet-base, power-supply or operating-space requirements so we can check the configuration.
