Product overview
Dome safety mirrors give drivers and pedestrians a clear view around blind corners and intersections in warehouses, plants, parking garages and retail spaces. They are made of durable acrylic with black protective edges, and come in full (360°), half (180°) and quarter (90°) domes, plus a drop-in dome that replaces a ceiling tile.
Choosing a dome
- 360° full dome: 4-way intersections
- 180° half dome: T-intersections
- 90° quarter dome: corner intersections
- Drop-in ceiling dome: 4-way intersections with a 2 ft x 2 ft drop ceiling
360° full dome mirrors
- Increase surveillance and prevent accidents at blind corners.

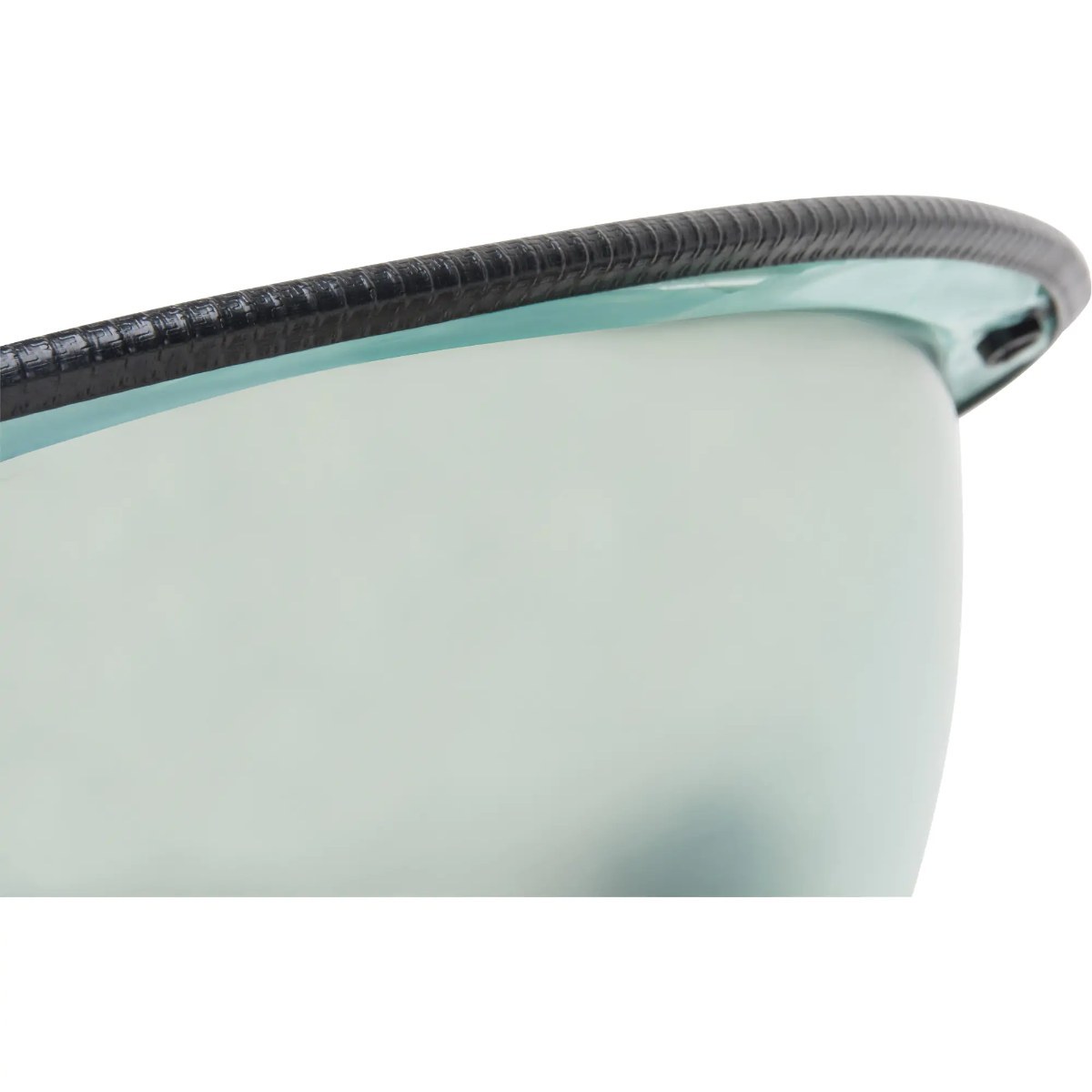

- Durable acrylic construction with a black protective edge.

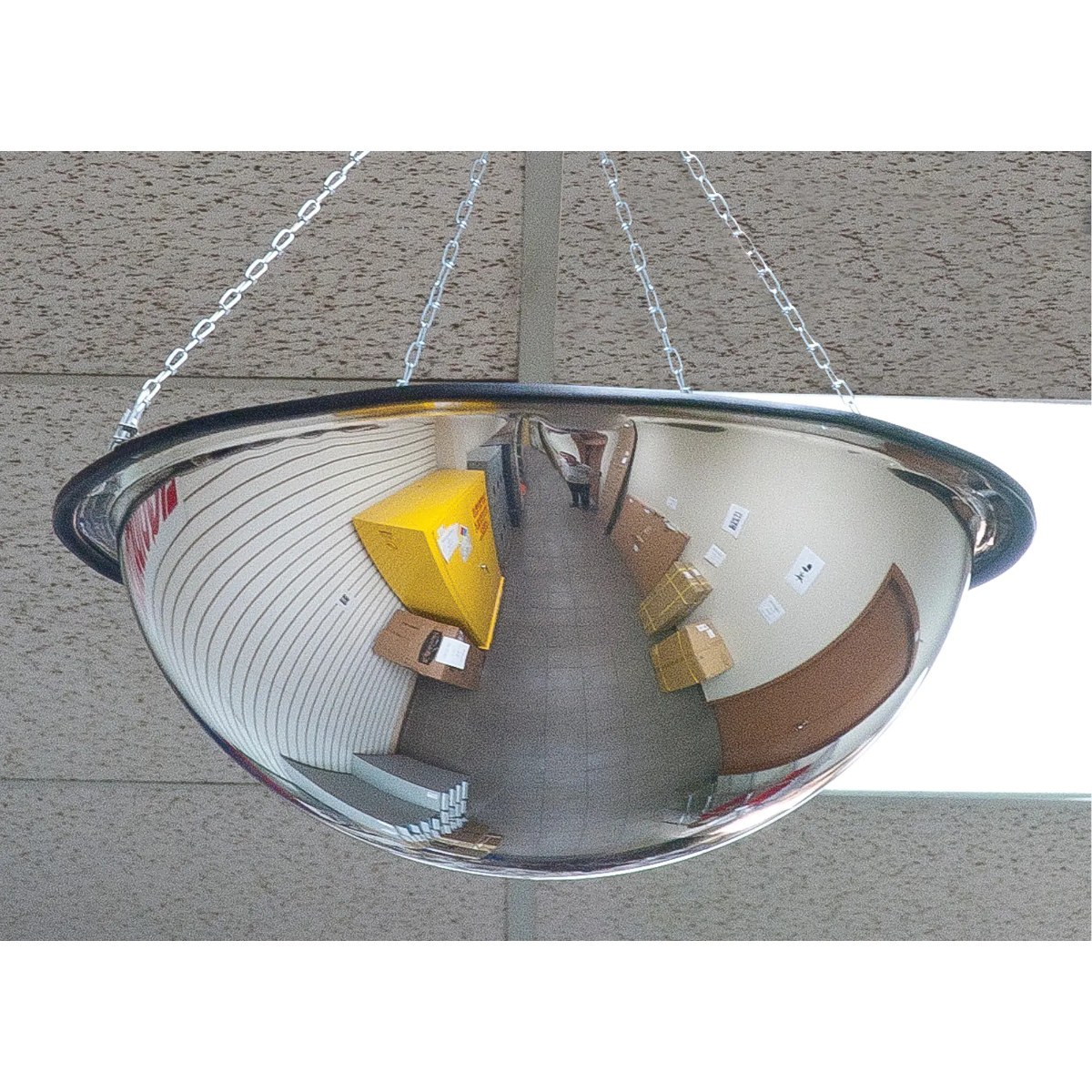

- Open-top models come with 4 hanging chains and hooks.

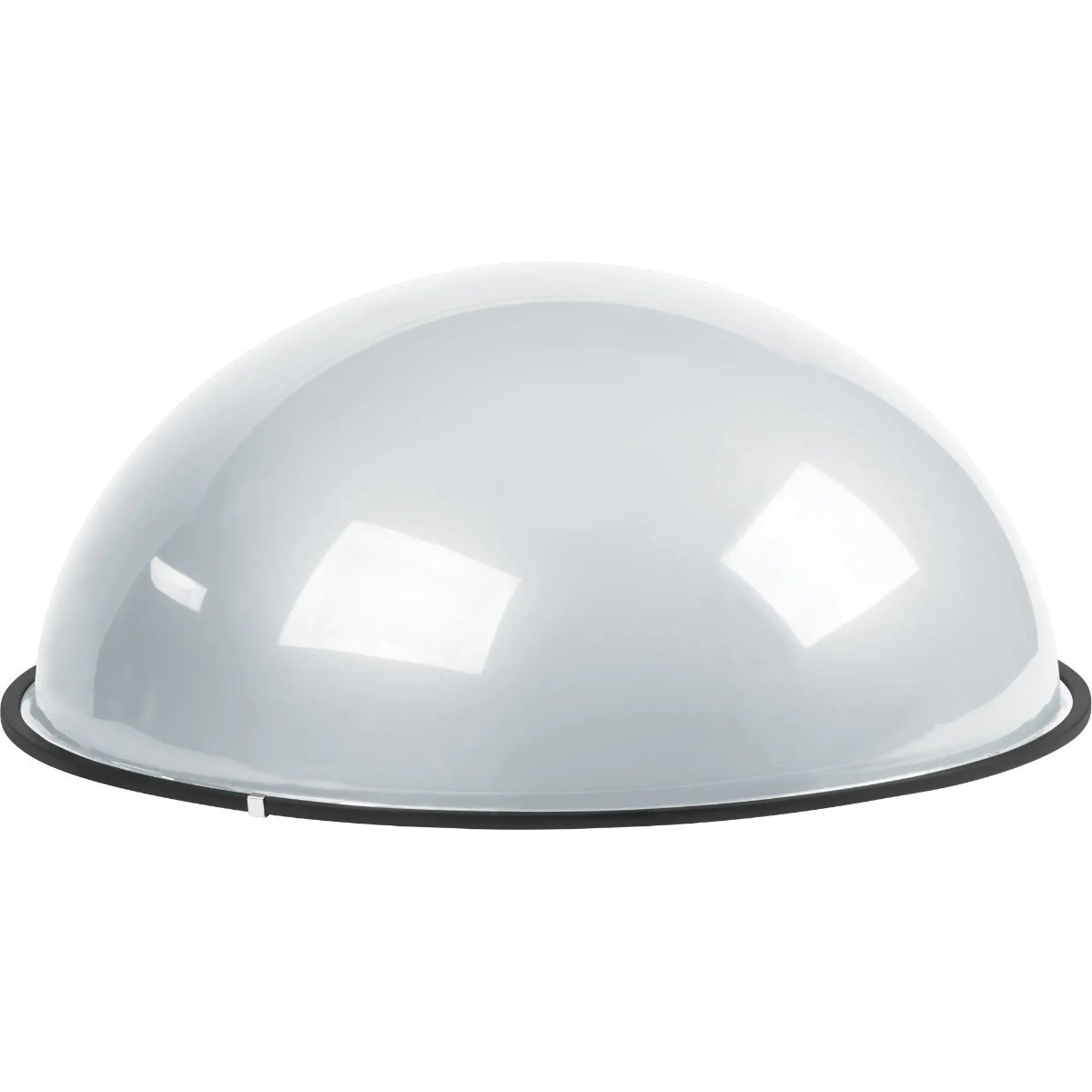

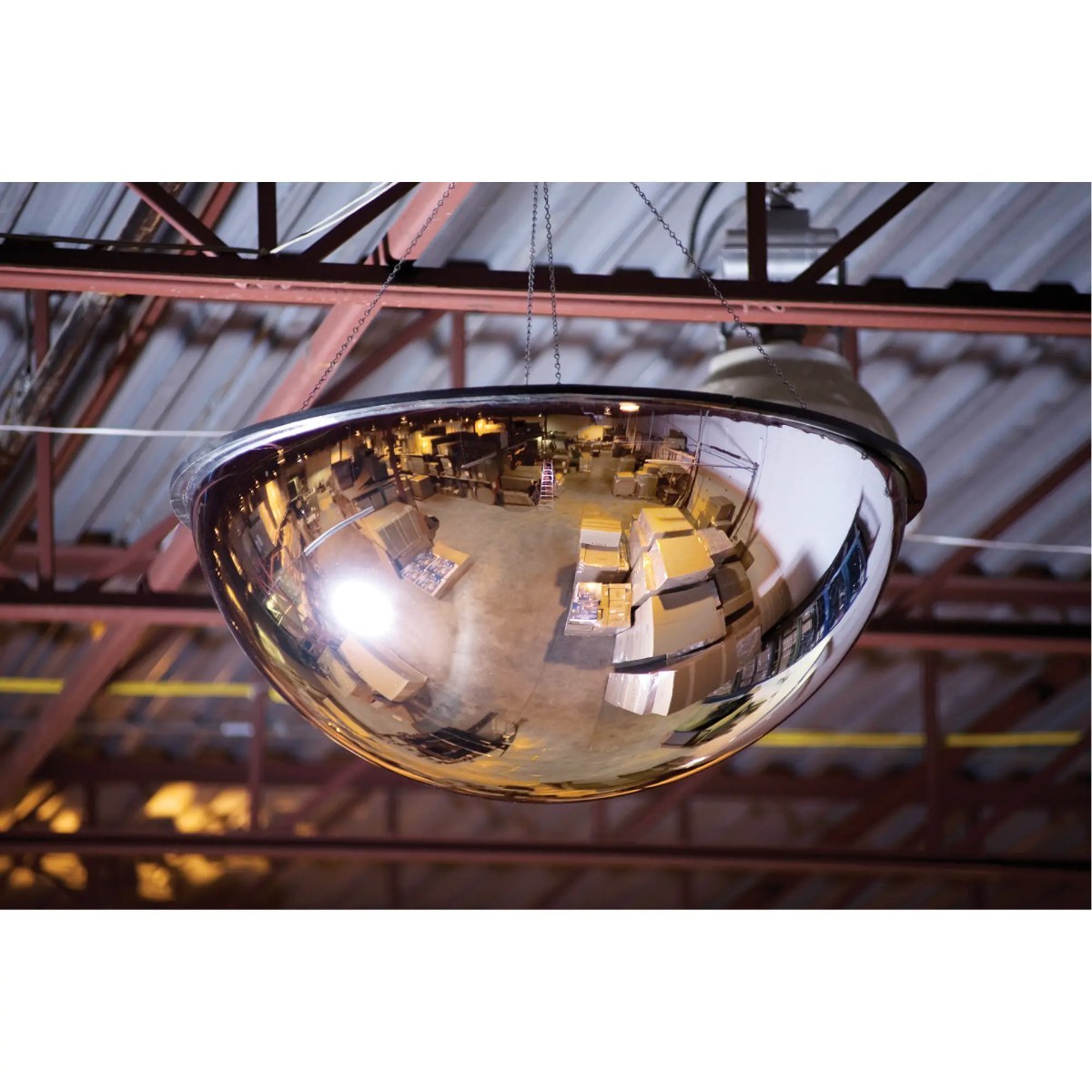

- Closed-top models have a galvanized steel backing and come with hanging hardware.
| Part number | Top | Diameter (in) | Weight (lbs) | Hanging |
|---|---|---|---|---|
| JSBEJ875 | Open top | 20 | 1.5 | 4 chains and hooks (24 in) |
| JSBEJ876 | Open top | 24 | 2 | 4 chains and hooks (24 in) |
| JSBEJ877 | Open top | 31 | 3 | 4 chains and hooks (24 in) |
| JSBEJ878 | Open top | 47 | 6.5 | 4 chains and hooks (24 in) |
| JSBDP520 | Closed top, galvanized steel backing | 18 | — | Hanging hardware included |
| JSBDP521 | Closed top, galvanized steel backing | 26 | — | Hanging hardware included |
| JSBDP522 | Closed top, galvanized steel backing | 32 | — | Hanging hardware included |
| JSBDP523 | Closed top, galvanized steel backing | 48 | — | Hanging hardware included |
Weights are listed where the manufacturer publishes them.

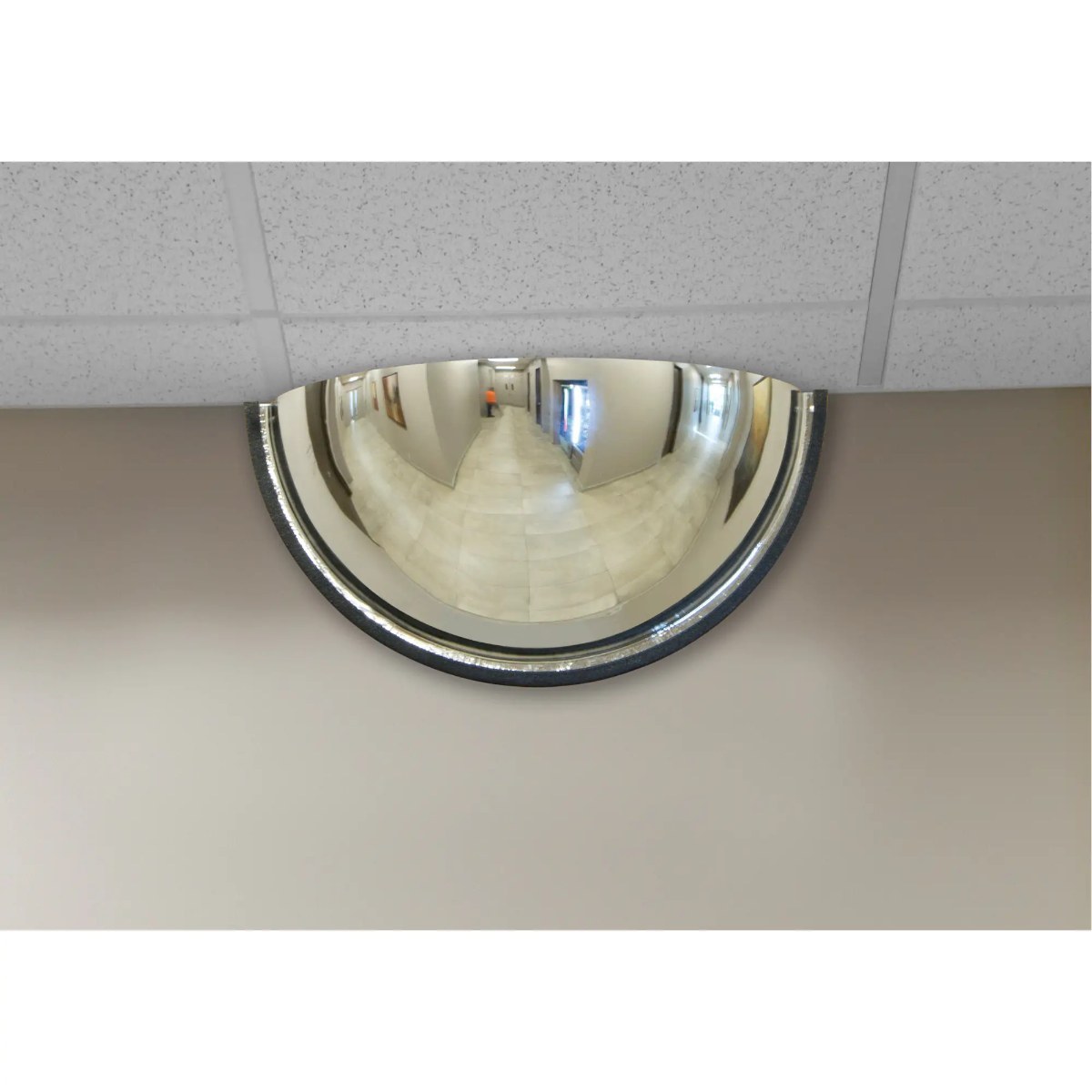

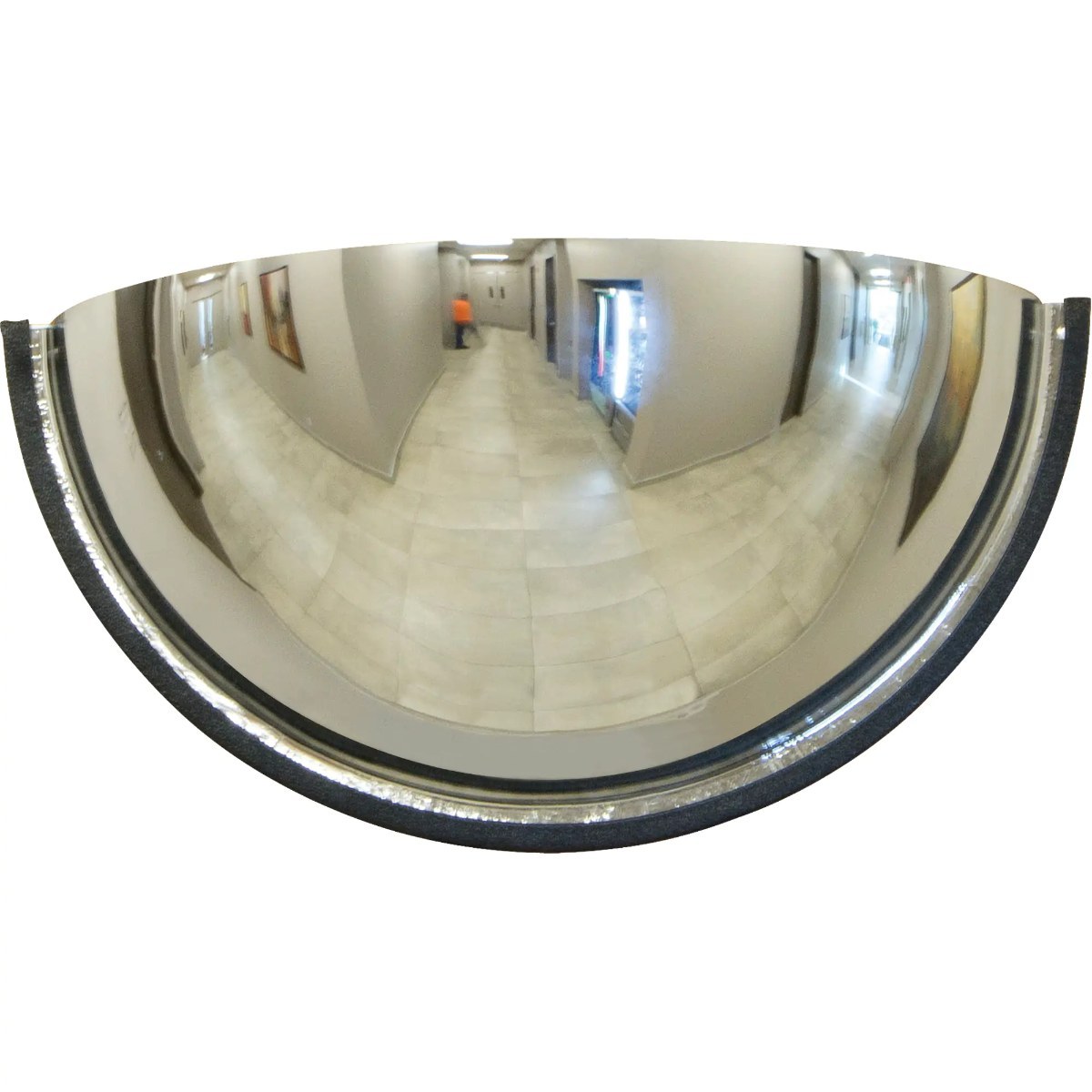

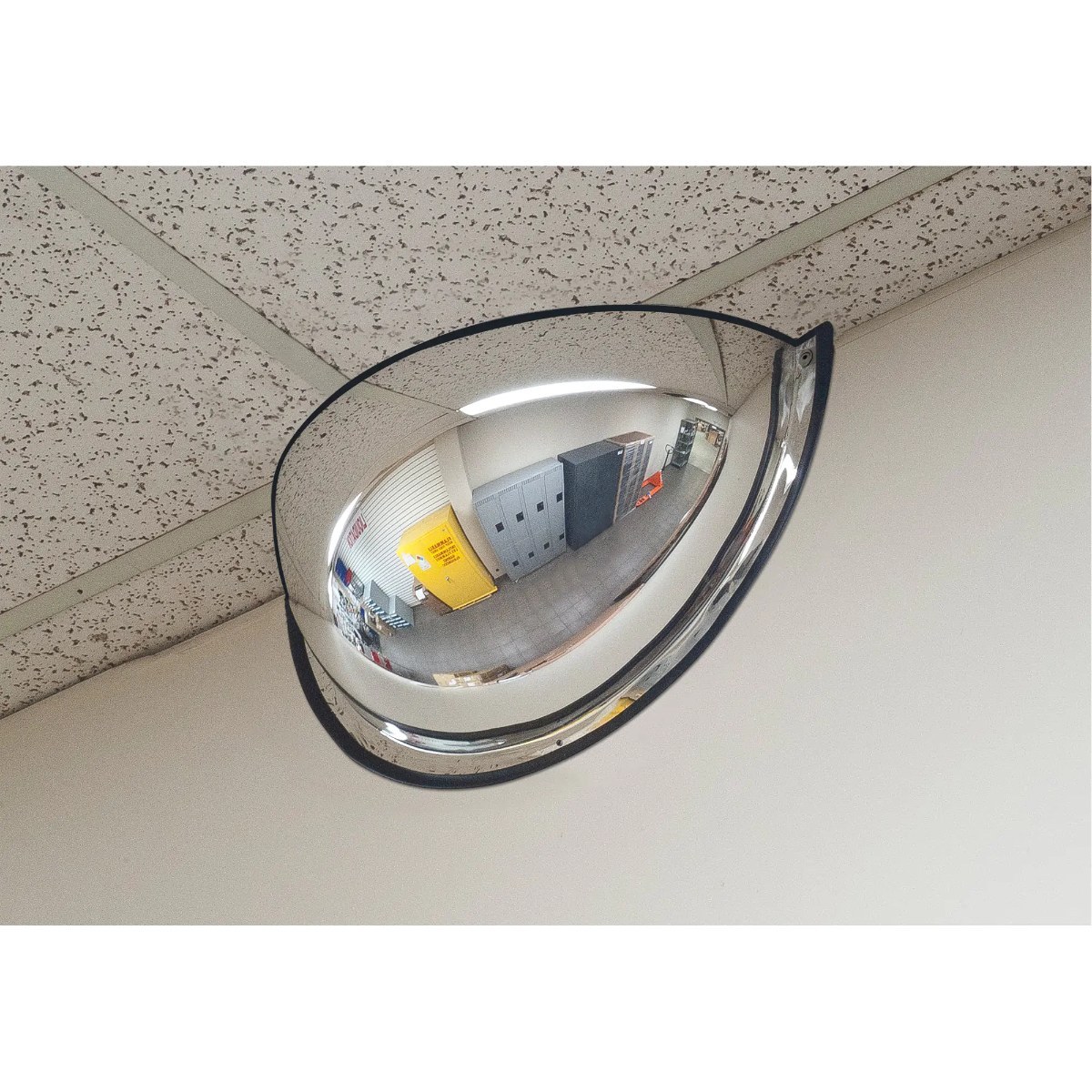

180° half dome mirrors
- Mount flat against a wall for a 180° view of T-intersections.
- Durable acrylic with black protective edges.
- Screw holes positioned on the edge for easy mounting.
| Part number | Top | Diameter (in) | Weight (lbs) |
|---|---|---|---|
| JSBEJ879 | Open top | 20 | 0.75 |
| JSBEJ880 | Open top | 24 | 1 |
| JSBEJ881 | Open top | 31 | 1.5 |
| JSBEJ882 | Open top | 47 | 3.25 |
| JSBDP524 | Closed top | 18 | — |
| JSBDP525 | Closed top | 26 | — |
| JSBDP526 | Closed top | 32 | — |
| JSBDP527 | Closed top | 48 | — |
Half dome diameters are those of the equivalent full dome.

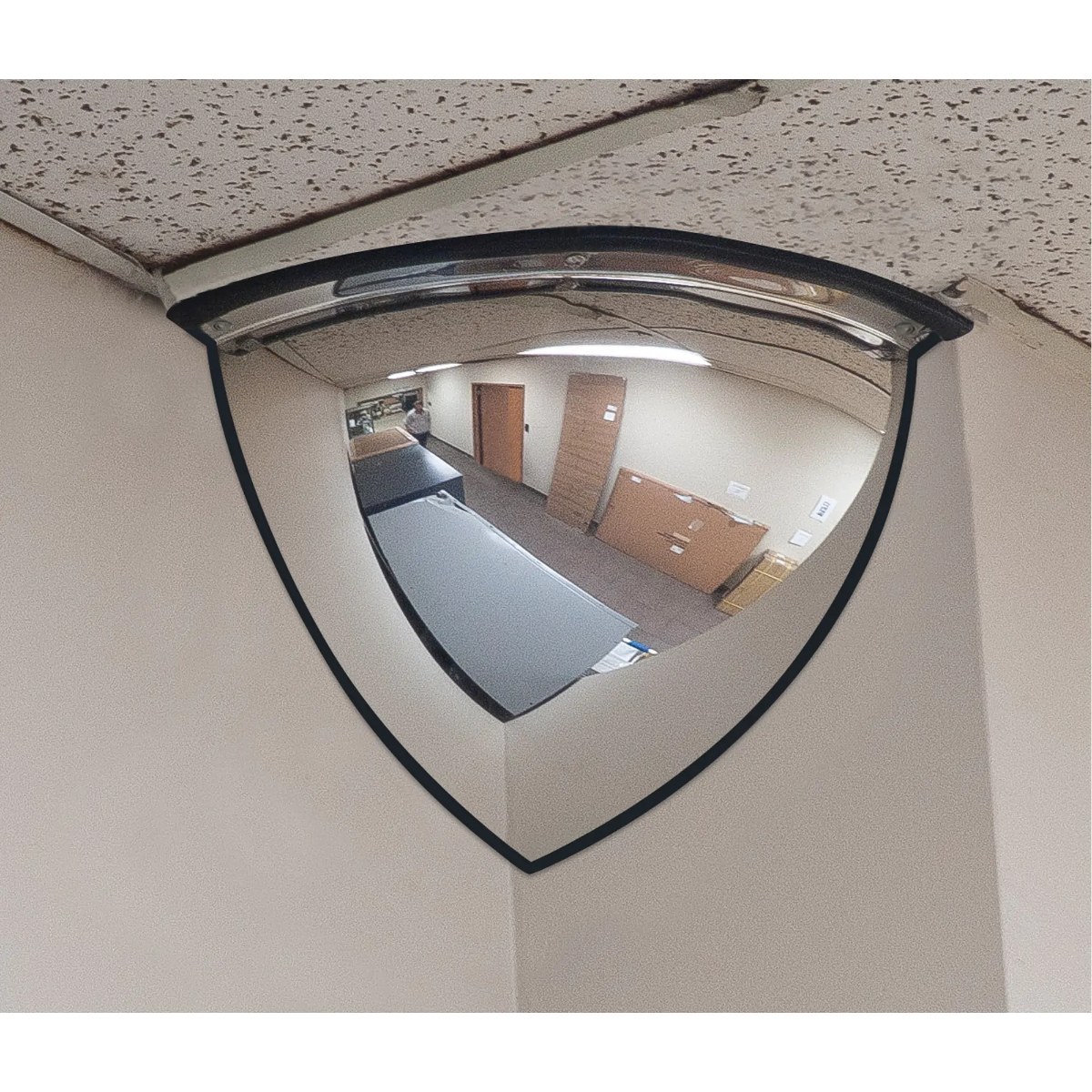

90° quarter dome mirrors
- Fits into a ceiling corner for a 90° view of corner intersections.
- Durable acrylic with black protective edges.
- Screw holes positioned on the edge for easy mounting.
| Part number | Top | Diameter (in) | Weight (lbs) |
|---|---|---|---|
| JSBEJ883 | Open top | 20 | 0.35 |
| JSBEJ884 | Open top | 24 | 0.5 |
Quarter dome diameters are those of the equivalent full dome.

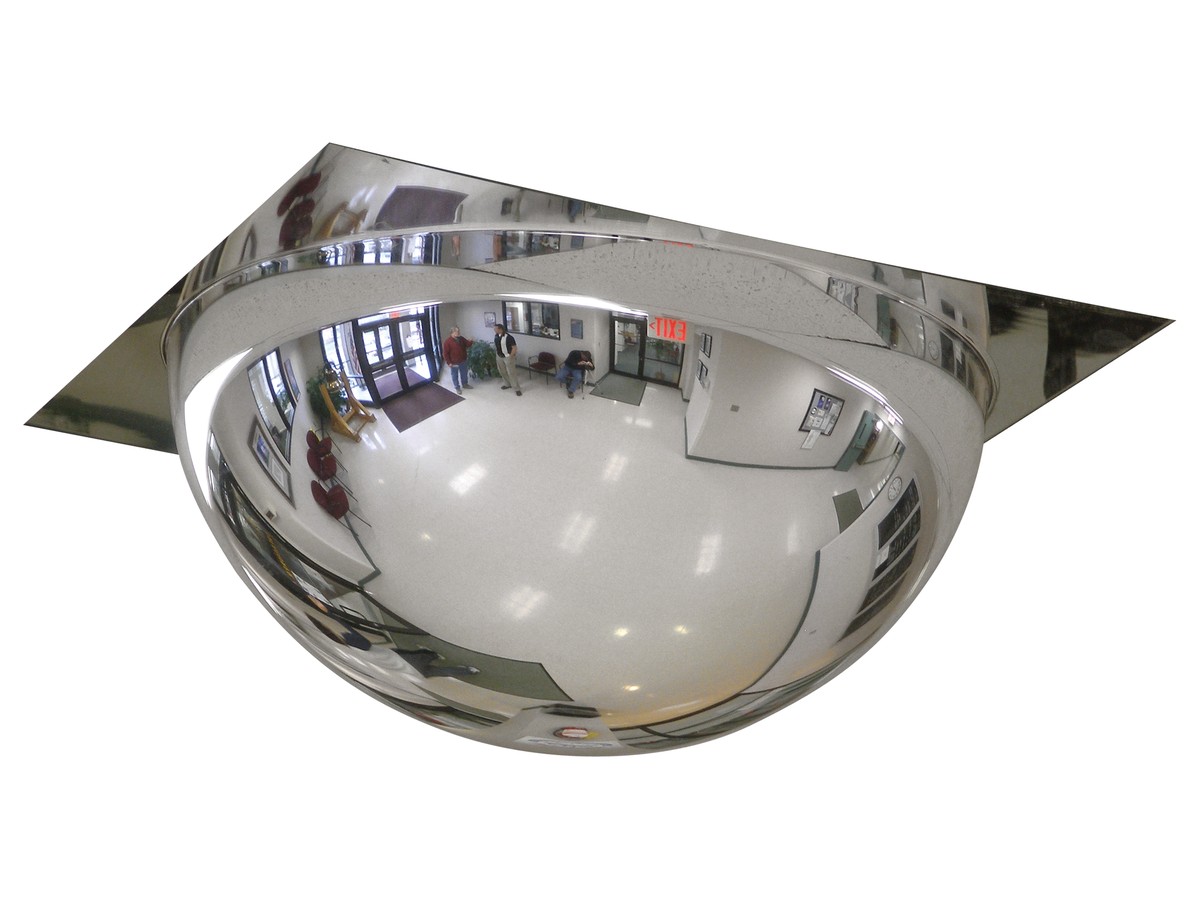

Drop-in ceiling panel dome
- One-piece drop-in dome replaces a standard 2 ft x 2 ft drop-ceiling tile.
- 360° viewing for optimal surveillance.
- Ideal for 4-way intersections.
- 24-inch diameter, open top.
| Part number | Fits | Diameter (in) | Viewing angle |
|---|---|---|---|
| JSBDP536 | 2 ft x 2 ft drop-ceiling grid | 24 | 360° |
Care and ordering
- Clean mirrors with furniture polish. Glass cleaner will damage the acrylic surface.
- Manufacturer’s warranty: 1 year limited.
Include the part numbers, quantities and your delivery location in the inquiry form. Not sure which dome fits? Tell us the type of intersection and the distance to be covered.
