Product overview
Delivery hand trucks in this family use a dual-fork toe design and 8-inch cushion rubber wheels. Their steel frames have a blue powder-coated finish and a shared capacity of 800 lbs.
Construction and features
- Dual-fork toe design
- Steel tubing with 1-inch diameter and 14-gauge walls
- 8-inch cushion rubber wheels
- Blue powder-coat finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Overall Height (in) | Weight (lbs) | Toe Plate | Capacity (lbs) | Material | Handle Type | Finish | Colour | Wheel Size (in) | Wheel Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

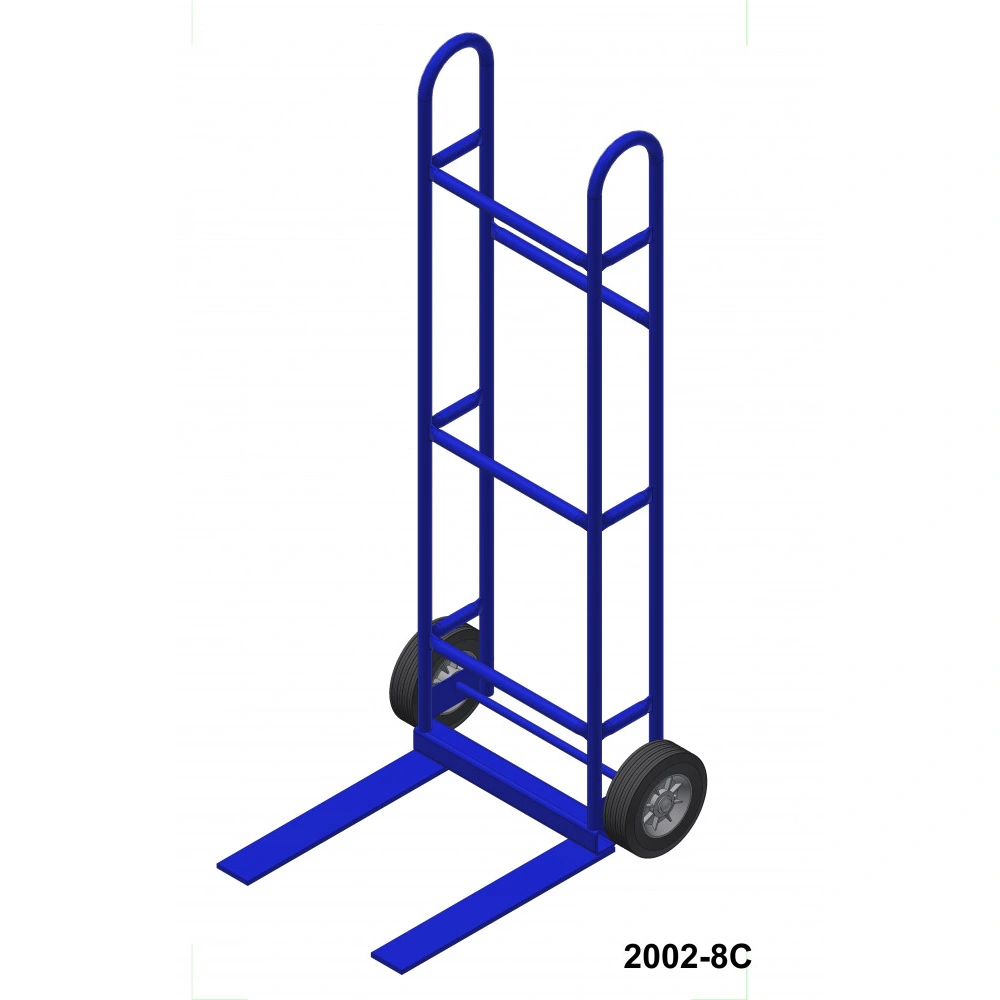

| 2002-8C | 24 | 28 | 59 | 59 | 48 | 18 x 19 | 800 | Steel | Double grip loop handle | Powder Coat | Blue | 8 x 2-1/2 | Cushion Rubber | 28 x 24 x 59 |
| 2003-8C | 20 | 16 | 47 | 47 | 30 | 14 x 7 | 800 | Steel | Double Grip | Powder Coat | Blue | 8 x 2-1/2 | Cushion Rubber | 20 x 16 x 47 |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Wheel guards
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
