Product overview
These D-handle hand trucks combine a steel frame with a basket-style back and a durable blue powder-coat finish. Their shared frame capacity is 1,000 lbs., and wheel configurations include cushion, flat-free, and pneumatic options to suit different handling needs.
Construction and features
- Basket-style back and D-handle design
- Steel tubing with 1-inch diameter and 14-gauge walls
- 14 x 8-inch toe plate
- Blue powder-coat finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Weight (lbs) | Toe Plate | Capacity (lbs) | Material | Handle Type | Finish | Colour | Wheel Size (in) | Wheel Type | Shipping Size (in) | Overall Height (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

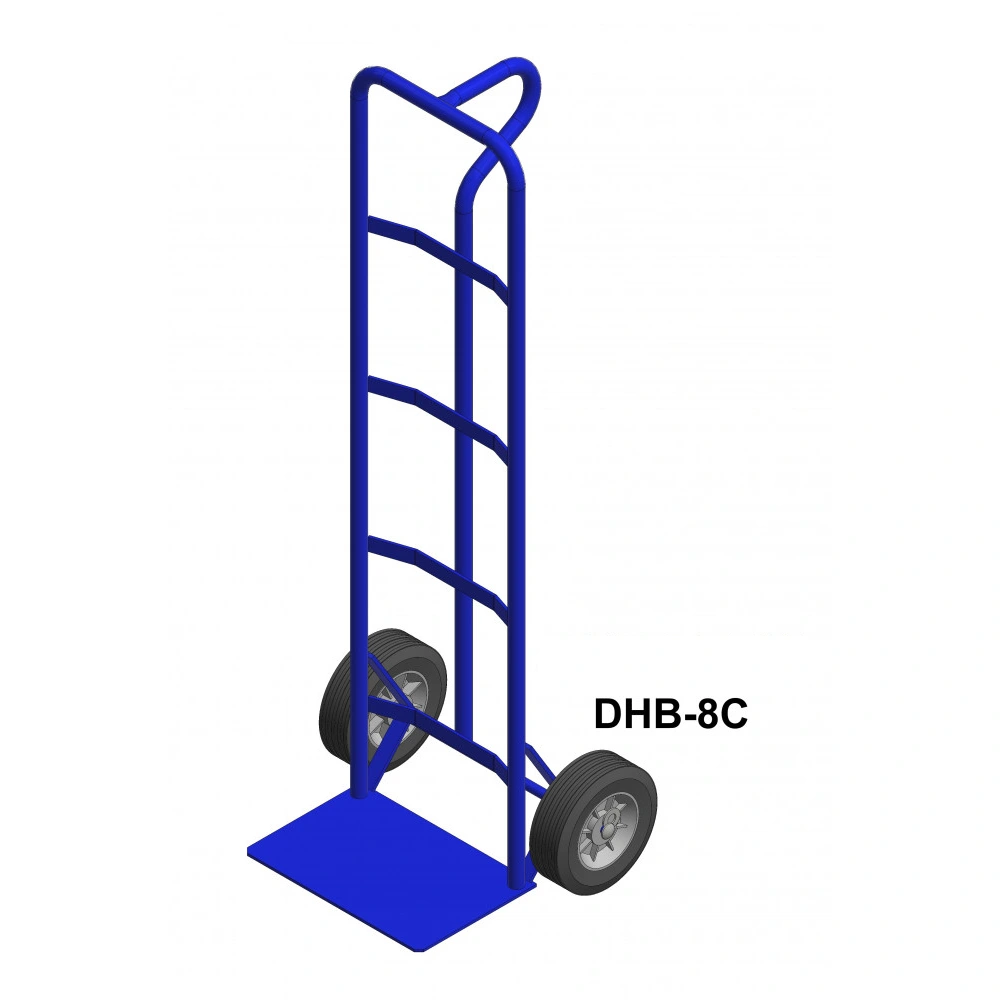

| DHB-8C | 20 | 17 | 51 | 29 | 14 x 8 | 1000 | Steel | D-Handle | Powder Coat | Blue | 8 x 2 | Cushion Rubber | 20 x 17 x 51 | Not listed |
| DHB-10C | 20 | 17 | 51 | 34 | 14 x 8 | 1000 | Steel | D-Handle | Powder Coat | Blue | 10 x 2.5 | Cushion Rubber | 20 x 17 x 51 | Not listed |
| DHB-10FF | 20 | 17 | 51 | 34 | 14 x 8 | 600 | Steel | D-Handle | Powder Coat | Blue | 10 | Flat Free Polyurethane | 20 x 17 x 51 | Not listed |
| DHB-10PN | 20 | 17 | 51 | 27 | 14 x 8 | 700 | Steel | D-Handle | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 20 x 17 x 51 | Not listed |
| DHB-FDN-8C | 20 | 17 | 51 | 35 | 14 x 8 | 1000 | Steel | D-Handle | Powder Coat | Blue | 8 x 2 | Cushion Rubber | 20 x 17 x 51 | 51 |
| DHB-FDN-10C | 19 | 19 | 51 | 40 | 14 x 8 | 1000 | Steel | D-Handle | Powder Coat | Blue | 10 x 2.5 | Cushion Rubber | 19 x 19 x 51 | 51 |
| DHB-FDN-10PN | 21 | 20 | 51 | 33 | 14 x 8 | 700 | Steel | D-Handle | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 21 x 20 x 51 | 51 |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Toe plate extension, up to 15 inches
- Wheel guards
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
