Product overview

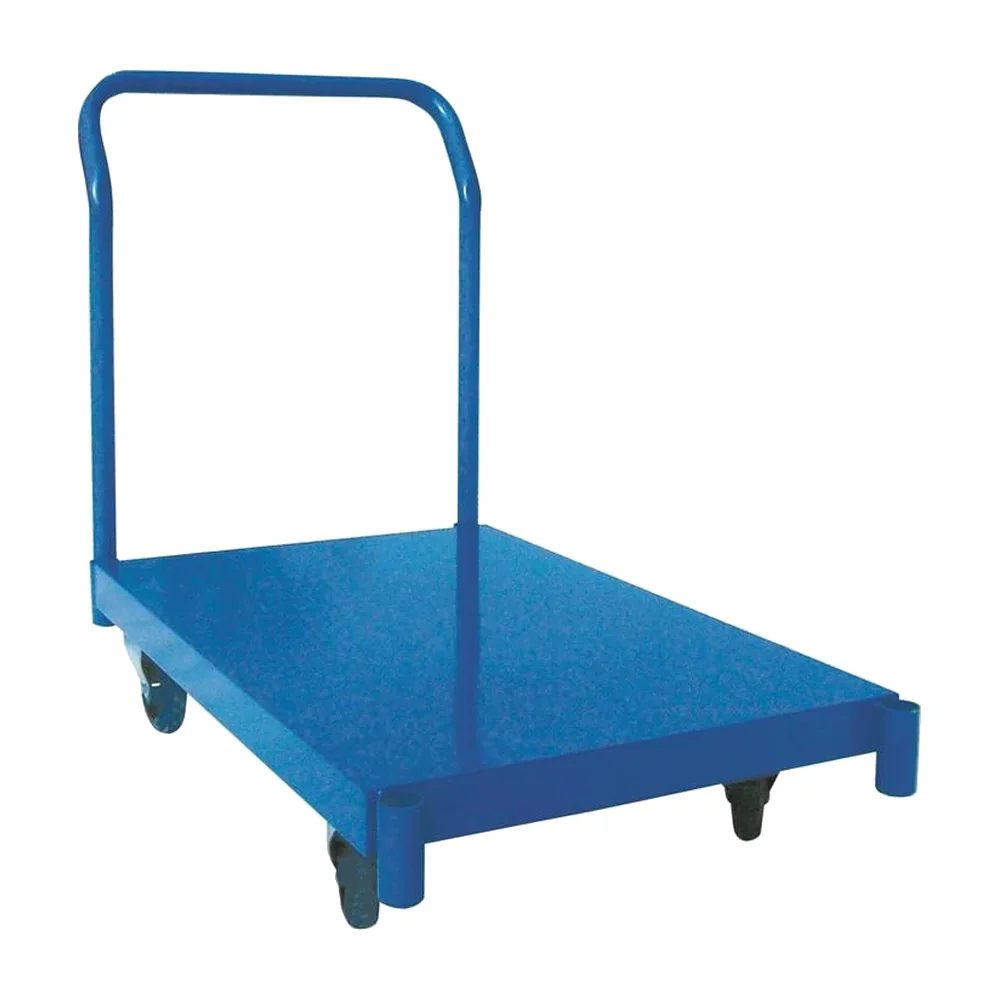

These cushion-ride platform trucks combine a reinforced steel deck with large flat-free wheels for moving materials. The removable handle fits at either end, and welded construction with a blue powder coat finish completes the platform truck.
Construction and features
- Deck is reinforced with 14-gauge steel.
- Removable 1-5/16-inch-diameter tube handle fits at either end.
- Flat-free casters provide the cushion-ride configuration.
- Welded construction supports material handling.
- Blue powder coat finish.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Deck Height (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Handle Type | Finish | Colour | Caster Size (in) | Caster Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24x48SD-10FF | 24 | 48 | 14-1/2 | 41 | 94 | 1000 | Removable | Powder Coat | Blue | 10 x 4 | Flat Free | 52 x 24 x 21 |
| 24x48SD-10PN | 24 | 48 | 14-1/2 | 41 | 95 | 1200 | Removable | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 52 x 24 x 21 |
| 24x48SD-8FF | 24 | 48 | 12 | 39 | 90 | 1000 | Removable | Powder Coat | Blue | 8 x 4 | Flat Free | 52 x 24 x 18 |
| 24x48SD-8PN | 24 | 48 | 12 | 39 | 91 | 1200 | Removable | Powder Coat | Blue | 8 x 2-1/2 | Pneumatic | 52 x 24 x 18 |
| 24x60SD-10FF | 24 | 60 | 14-1/2 | 41 | 104 | 1000 | Removable | Powder Coat | Blue | 10 x 4 | Flat Free | 64 x 24 x 21 |
| 24x60SD-10PN | 24 | 60 | 14-1/2 | 41 | 105 | 1200 | Removable | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 64 x 24 x 21 |
| 24x60SD-8FF | 24 | 60 | 12 | 39 | 100 | 1000 | Removable | Powder Coat | Blue | 8 x 4 | Flat Free | 64 x 24 x 18 |
| 24x60SD-8PN | 24 | 60 | 12 | 39 | 101 | 1200 | Removable | Powder Coat | Blue | 8 x 2-1/2 | Pneumatic | 64 x 24 x 18 |
| 30x48SD-10FF | 30 | 48 | 15 | 42 | 104 | 1000 | Removable | Powder Coat | Blue | 10 x 4 | Flat Free | 52 x 30 x 21 |
| 30x48SD-10PN | 30 | 48 | 15 | 42 | 105 | 1200 | Removable | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 52 x 30 x 21 |
| 30x48SD-8FF | 30 | 48 | 12-1/2 | 39 | 100 | 1000 | Removable | Powder Coat | Blue | 8 x 4 | Flat Free | 52 x 30 x 18 |
| 30x48SD-8PN | 30 | 48 | 12-1/2 | 39 | 101 | 1200 | Removable | Powder Coat | Blue | 8 x 2-1/2 | Pneumatic | 52 x 30 x 18 |
| 30x60SD-10FF | 30 | 60 | 15 | 42 | 123 | 1000 | Removable | Powder Coat | Blue | 10 x 4 | Flat Free | 64 x 30 x 21 |
| 30x60SD-10PN | 30 | 60 | 15 | 42 | 124 | 1200 | Removable | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 64 x 30 x 21 |
| 30x60SD-8FF | 30 | 60 | 12-1/2 | 39 | 118 | 1000 | Removable | Powder Coat | Blue | 8 x 4 | Flat Free | 64 x 30 x 18 |
| 30x60SD-8PN | 30 | 60 | 12-1/2 | 39 | 119 | 1200 | Removable | Powder Coat | Blue | 8 x 2-1/2 | Pneumatic | 64 x 30 x 18 |
| 36x60SD-10FF | 36 | 60 | 15 | 42 | 133 | 1000 | Removable | Powder Coat | Blue | 10 x 4 | Flat Free | 64 x 36 x 21 |
| 36x60SD-10PN | 36 | 60 | 15 | 42 | 134 | 1200 | Removable | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 64 x 36 x 21 |
| 36x60SD-8FF | 36 | 60 | 12-1/2 | 39 | 128 | 1000 | Removable | Powder Coat | Blue | 8 x 4 | Flat Free | 64 x 36 x 18 |
| 36x60SD-8PN | 36 | 60 | 12-1/2 | 39 | 129 | 1200 | Removable | Powder Coat | Blue | 8 x 2-1/2 | Pneumatic | 64 x 36 x 18 |
| 36x72SD-10FF | 36 | 72 | 15 | 42 | 144 | 1000 | Removable | Powder Coat | Blue | 10 x 4 | Flat Free | 76 x 36 x 21 |
| 36x72SD-10PN | 36 | 72 | 15 | 42 | 145 | 1200 | Removable | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 76 x 36 x 21 |
| 36x72SD-8FF | 36 | 72 | 12-1/2 | 39 | 139 | 1000 | Removable | Powder Coat | Blue | 8 x 4 | Flat Free | 76 x 36 x 18 |
| 36x72SD-8PN | 36 | 72 | 12-1/2 | 39 | 140 | 1200 | Removable | Powder Coat | Blue | 8 x 2-1/2 | Pneumatic | 76 x 36 x 18 |
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
