Product overview

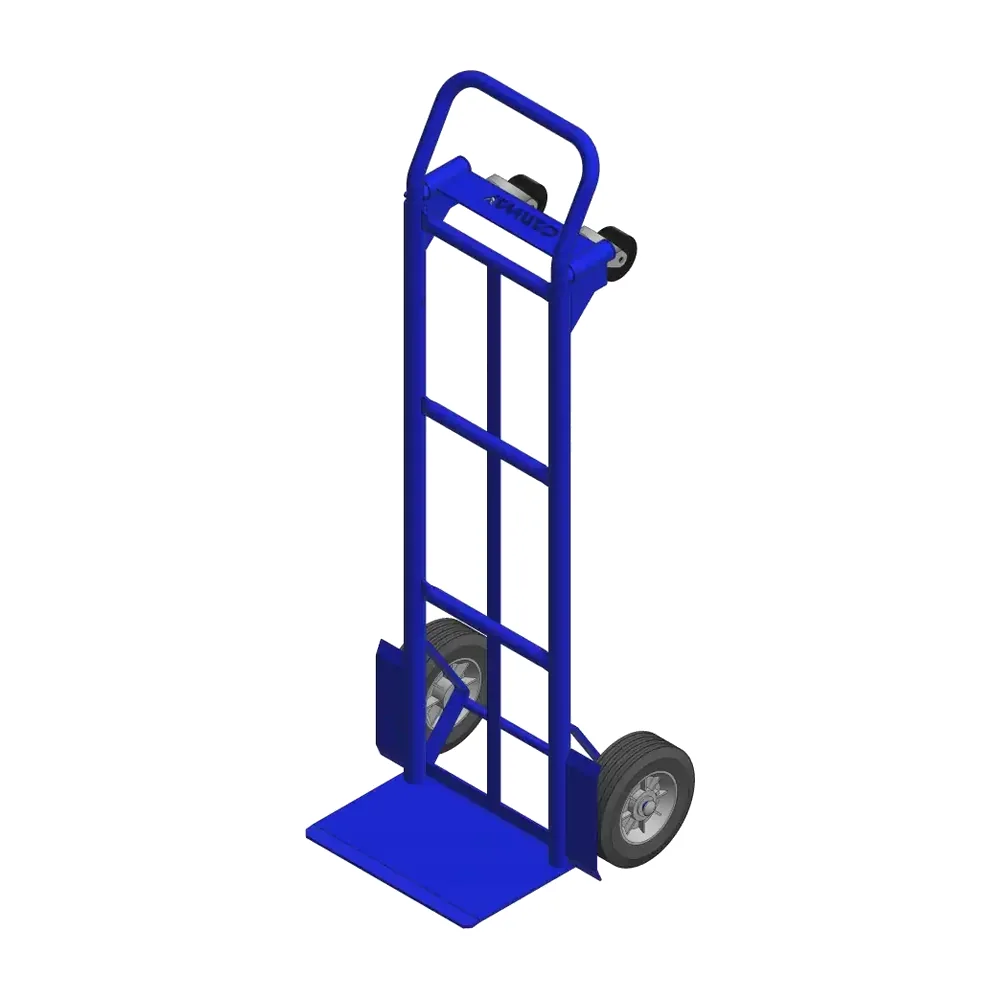

These steel convertible hand trucks switch between hand-truck and platform-truck use. They have a loop handle, wheel guards, and a blue powder-coated finish, with a 14 x 8-inch toe plate and black rubber casters across the listed family.
Construction and features
- Converts between hand-truck and platform-truck configurations
- Main frame tubing is 1-5/16-inch diameter with 12-gauge walls
- Handle tubing is 1-inch diameter with 14-gauge walls
- 14 x 8-inch toe plate
- Black rubber casters
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Deck Height (in) | Overall Height (in) | Weight (lbs) | Toe Plate | Capacity (lbs) | Material | Handle Type | Finish | Colour | Wheel Size (in) | Wheel Type | Caster Size (in) | Caster Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HL3S-8C | 20 | 17 | 51 | 9 | 51 | 50 | 14 x 8 | 1000 Handtruck / 1200 Platform Truck | Steel | Loop | Powder Coat | Blue | 8 x 2-1/2 | Cushion Rubber | 3 x 1-1/4 | Black Rubber | 20 x 17 x 51 |
| HL3S-10C | 19 | 18 | 51 | Not listed | 51 | 50 | 14 x 8 | 1000 Handtruck / 1200 Platform Truck | Steel | Loop | Powder Coat | Blue | 10 x 2-1/2 | Cushion Rubber | 3 x 1-1/4 | Black Rubber | 19 x 18 x 51 |
| HL3S-10PN | 19 | 18 | 51 | Not listed | 51 | 50 | 14 x 8 | 700 Handtruck / 900 Platform Truck | Steel | Loop | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 3 x 1-1/4 | Black Rubber | 19 x 18 x 51 |
| LL3S-8C | 20 | 17 | 45 | 9 | 45 | 45 | 14 x 8 | 1000 Handtruck / 1200 Platform Truck | Steel | Loop | Powder Coat | Blue | 8 x 2 | Cushion Rubber | 3 x 1-1/4 | Black Rubber | 20 x 17 x 45 |
| LL3S-10C | 19 | 20 | 45 | Not listed | 45 | 45 | 14 x 8 | 1000 Handtruck / 1200 Platform Truck | Steel | Loop | Powder Coat | Blue | 10 x 2-1/2 | Cushion Rubber | 3 x 1-1/4 | Black Rubber | 19 x 20 x 45 |
| LL3S-10PN | 19 | 20 | 45 | Not listed | 45 | 45 | 14 x 8 | 700 Handtruck / 900 Platform Truck | Steel | Loop | Powder Coat | Blue | 10 x 3-1/2 | Pneumatic | 3 x 1-1/4 | Black Rubber | 19 x 20 x 45 |
Available options
Confirm availability and compatibility for the selected model when requesting a quote.
- Toe plate extension, up to 15 inches deep
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
