Compact Hand-Winch Fork Lifts
This range uses manual winch lifting and offers different base layouts and mast heights. Normal fork positions and forks-up positions have different working ranges, which are kept separate in the specifications.
Features and selection
- Manual hand-winch lift
- Standard, straddle and counterbalanced bases
- Normal and forks-up height information
Check base access, load centre and the exact fork orientation required. These compact manual lifts are not direct replacements for powered warehouse counterbalanced stackers.
Models and specifications
Select a JB part number to view its photo. Representative photos may differ from the selected size or configuration. On smaller screens, swipe the table to see all columns.
| JB part number / photo | Rated capacity | Height / range | Platform or forks | Model details |
|---|---|---|---|---|

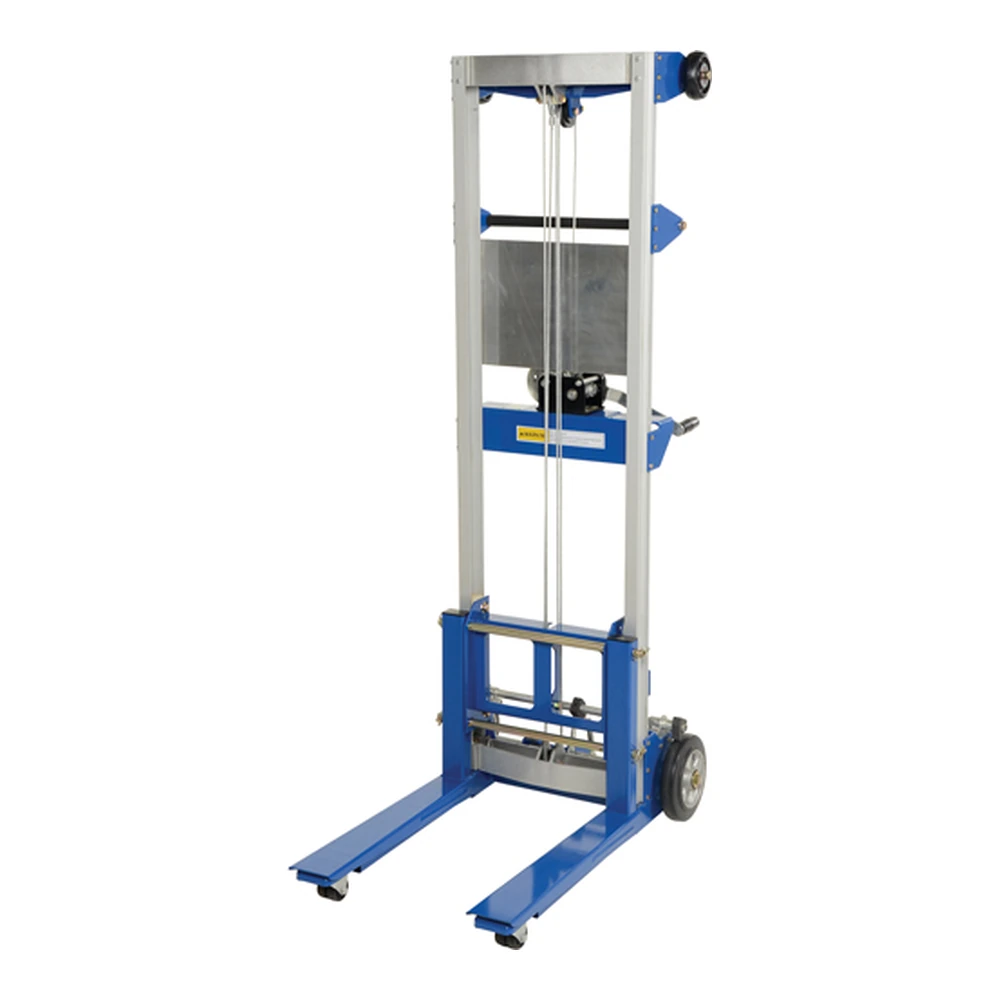

| JLBU498 | 500 lb | 3.5 to 47; forks-up 23.5 to 67 in | Fork W4 x L22 each in | Standard base; Fork thickness and outside spacing to be confirmed |

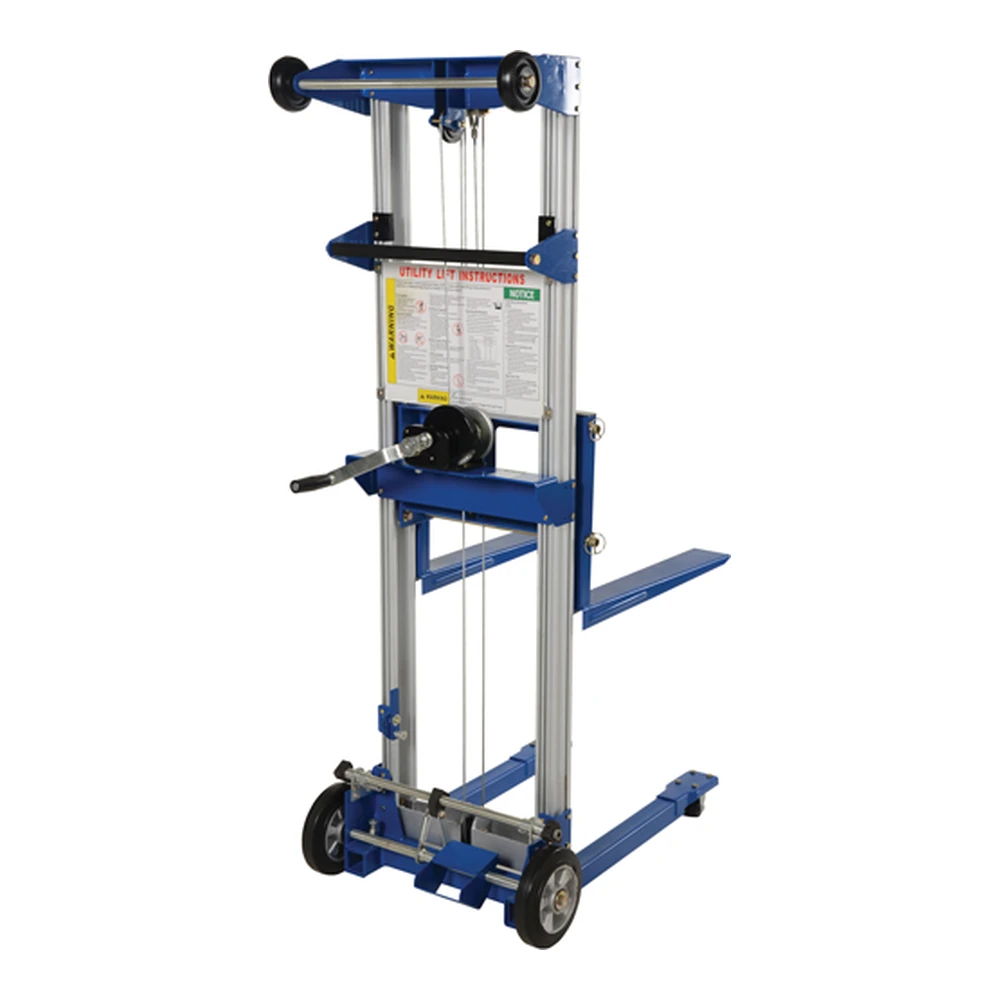

| JLBU499 | 400 lb | 3.5 to 97; forks-up 23.5 to 117 in | Fork W4 x L22 each in | Standard base |

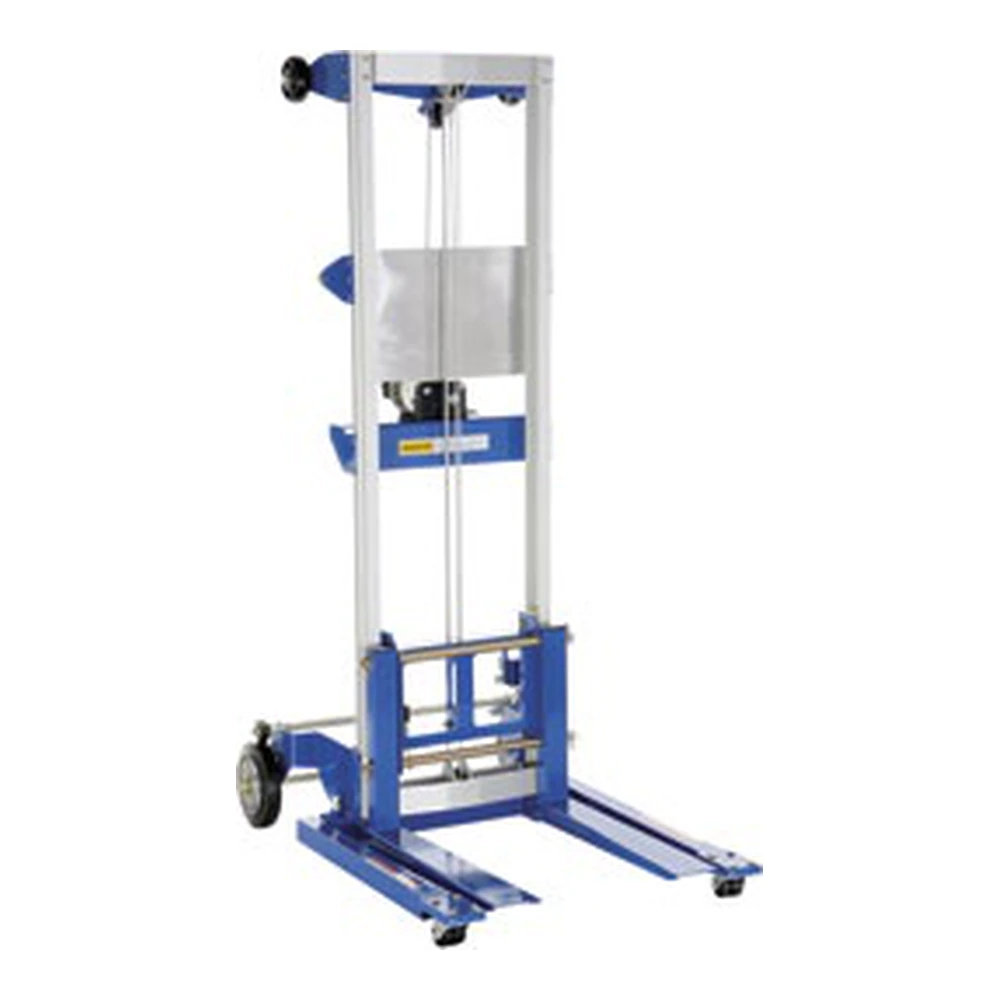

| JLBU500 | 500 lb | 1.25 to 47; forks-up 21.25 to 68 in | Fork W4 x L22 each in | Straddle base |
| JLBU501 | 400 lb | 1.25 to 98; forks-up 21.25 to 120 in | Fork W4 x L22 each in | Straddle base |

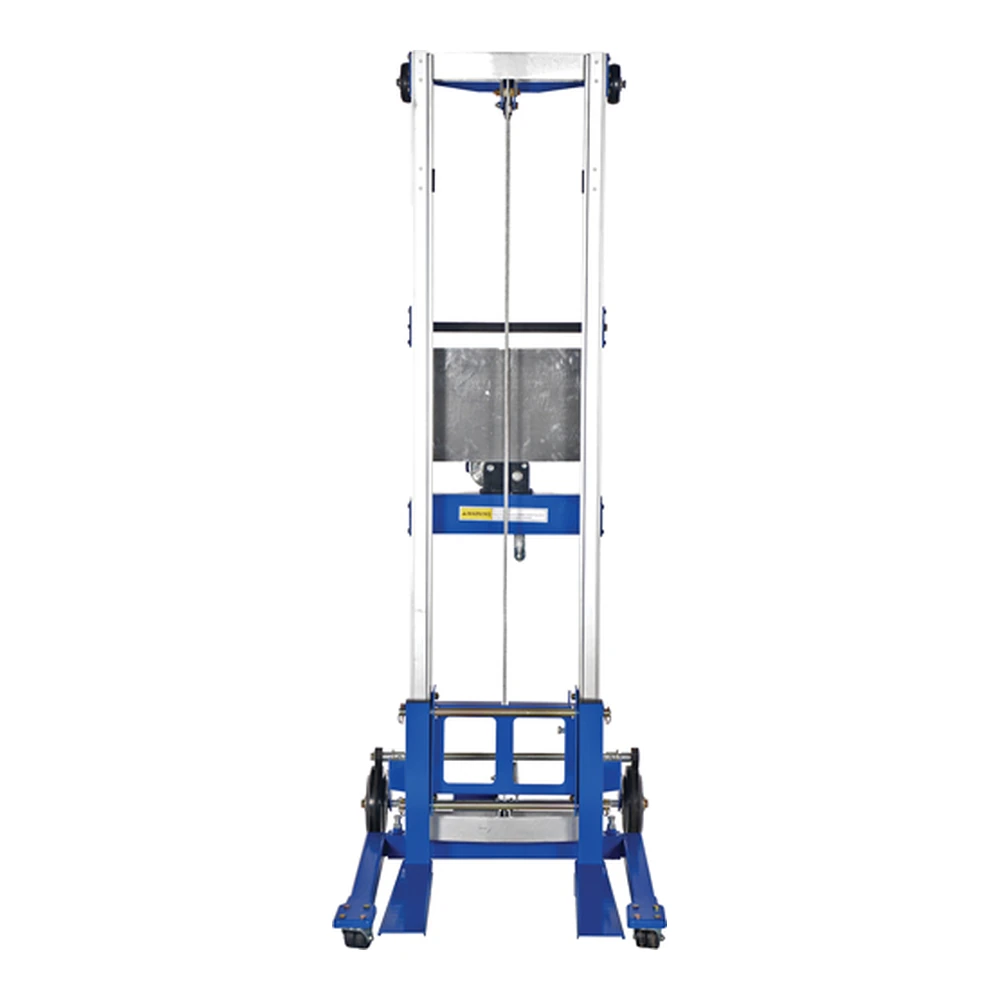

| JLBU502 | 350 lb | 1.25 to 122; forks-up 21.25 to 143 in | Fork W4 x L22 each in | Straddle base |

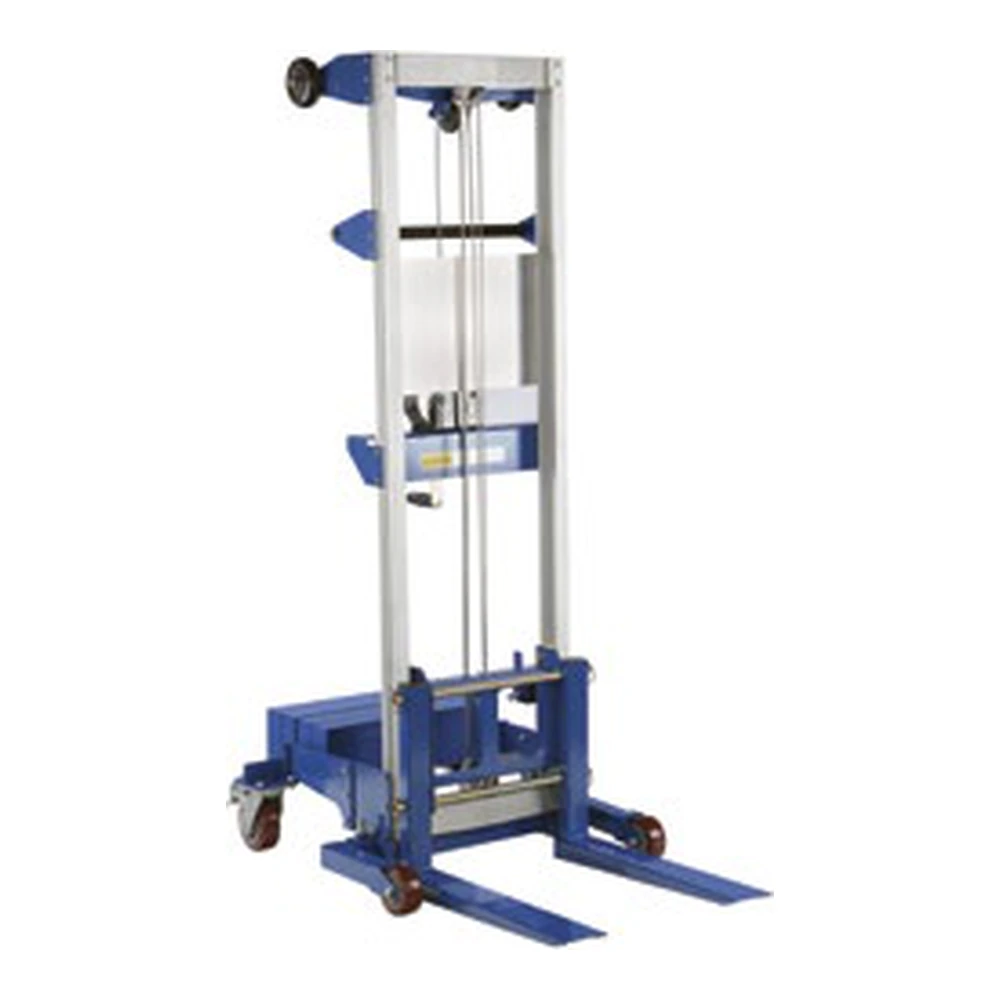

| JLBU503 | 500 lb | Normal forks: 2 to 47 in; forks-up range to be confirmed | Fork W4 x L22 each in | Counterbalanced base; Alternate fork-position range to be confirmed |

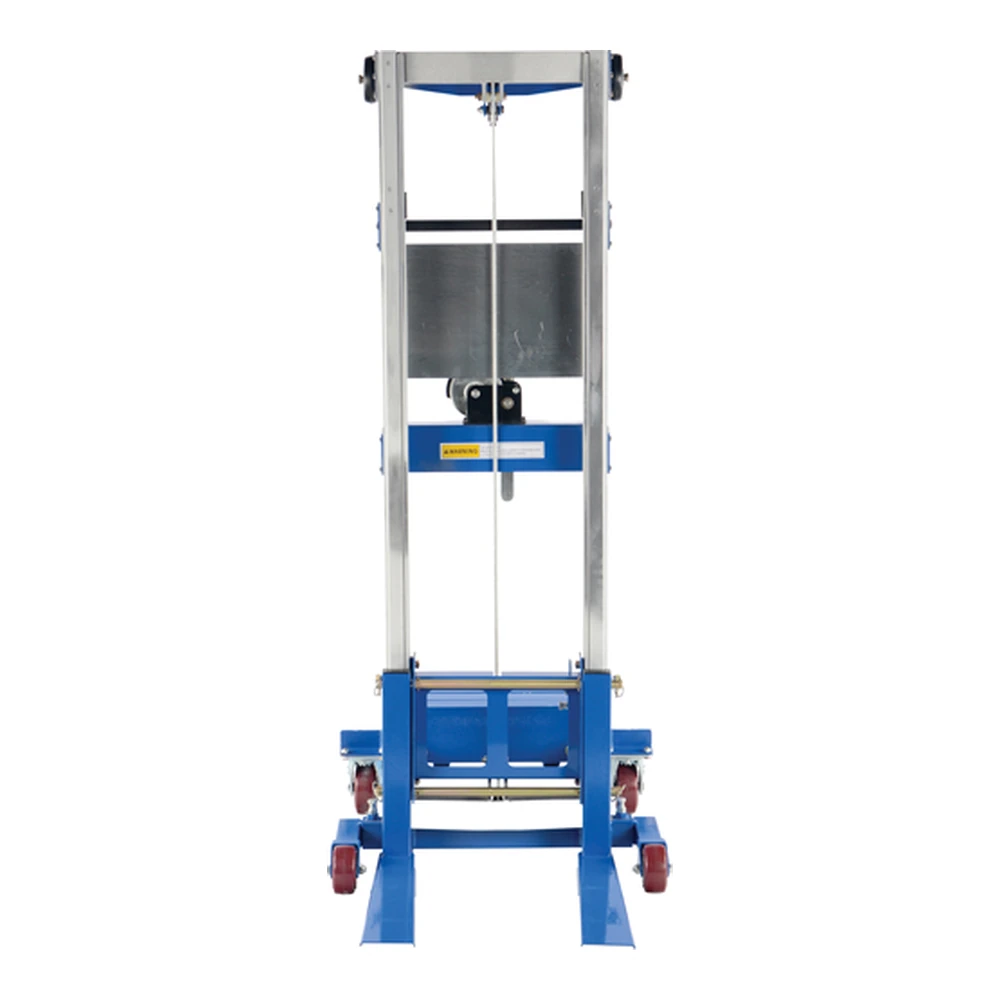

| JLBU504 | 400 lb | 2 to 98; forks-up 21.25 to 120 in | Fork W4 x L22 each in | Counterbalanced base |

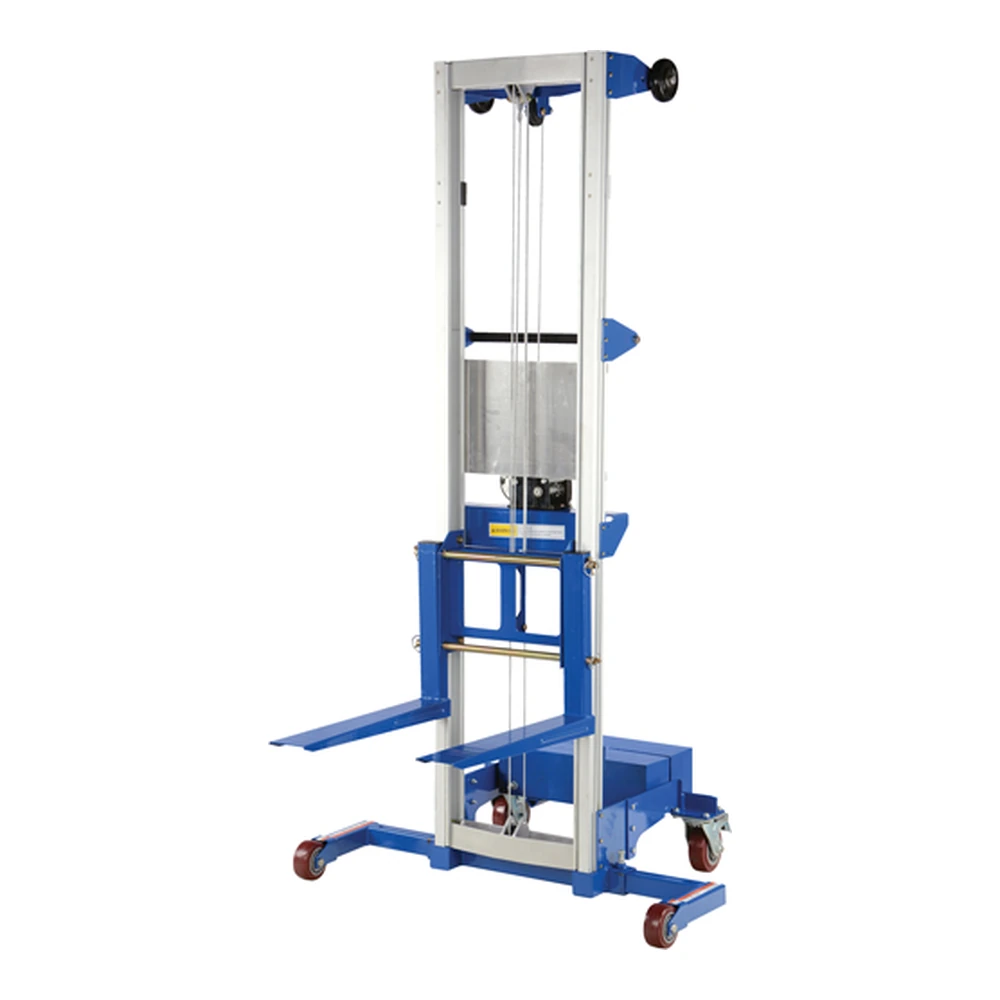

| JLBU505 | 350 lb | 2 to 122; forks-up 21.25 to 143 in | Fork W4 x L22 each in | Counterbalanced base |
Dimensions are in inches unless otherwise stated. Capacity is subject to the selected model’s load centre, load distribution and operating instructions. Height-specific ratings are not interchangeable.
Common questions
Does a counterbalanced base mean powered driving?
No. The listed counterbalanced versions are still manual hand-winch lifts.
Can I use the forks-up height as the normal lift height?
No. The height ranges refer to different fork positions; use the correct configuration and instructions.
Request a quote
Send the JB part number, quantity, load weight, load dimensions and required working height. Include your delivery postal code and any pallet-base, power-supply or operating-space requirements so we can check the configuration.
