Product overview

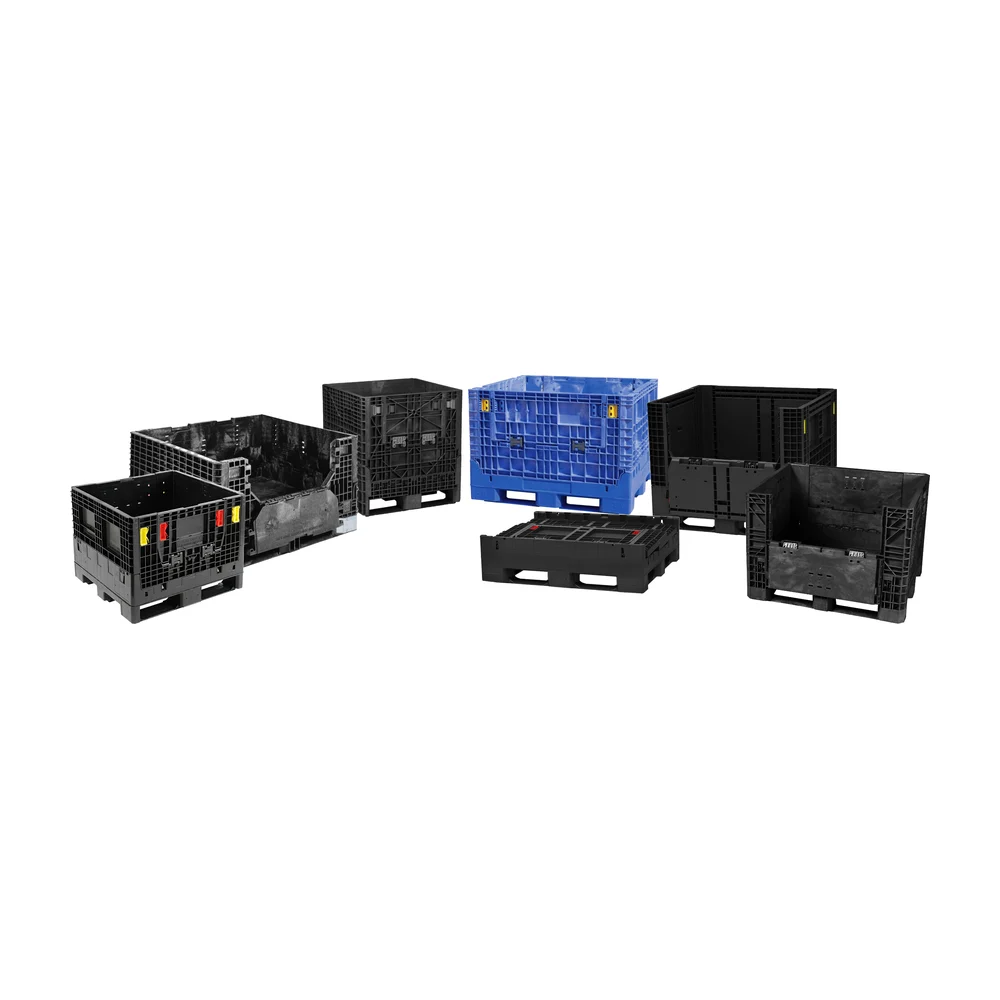

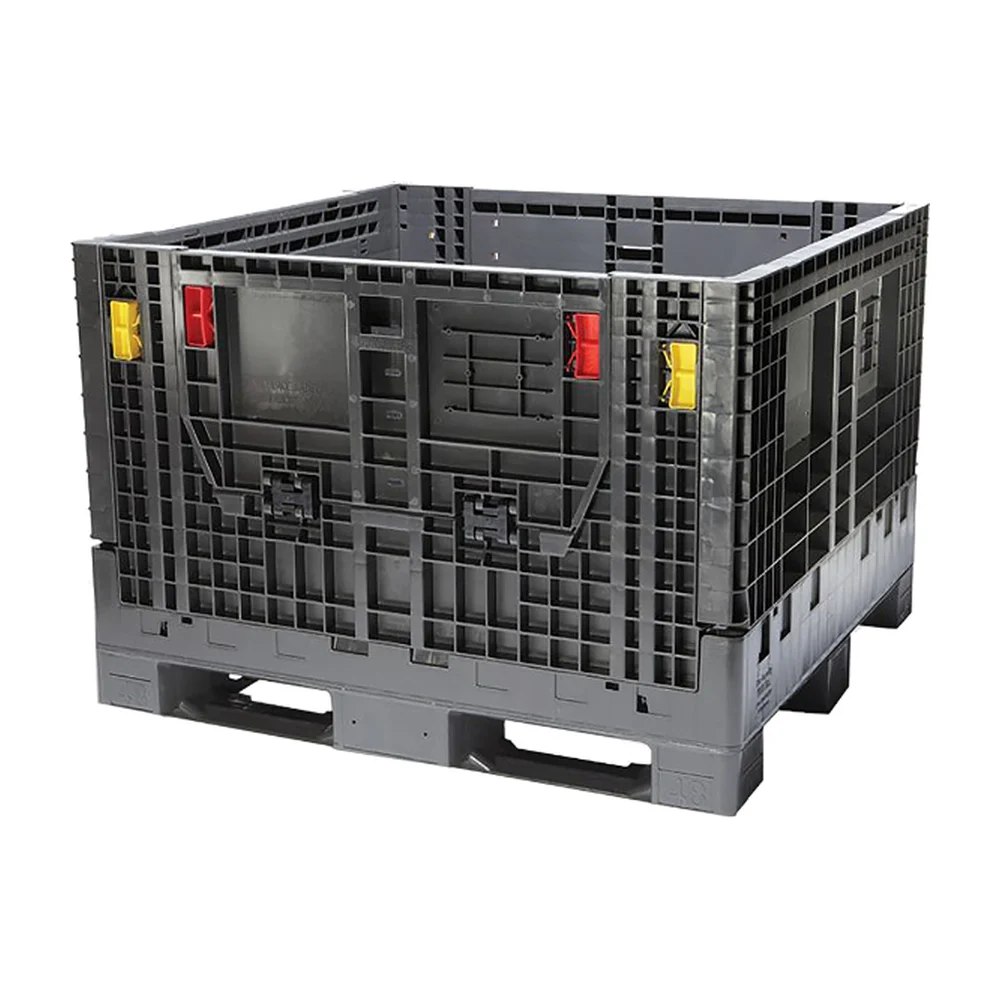

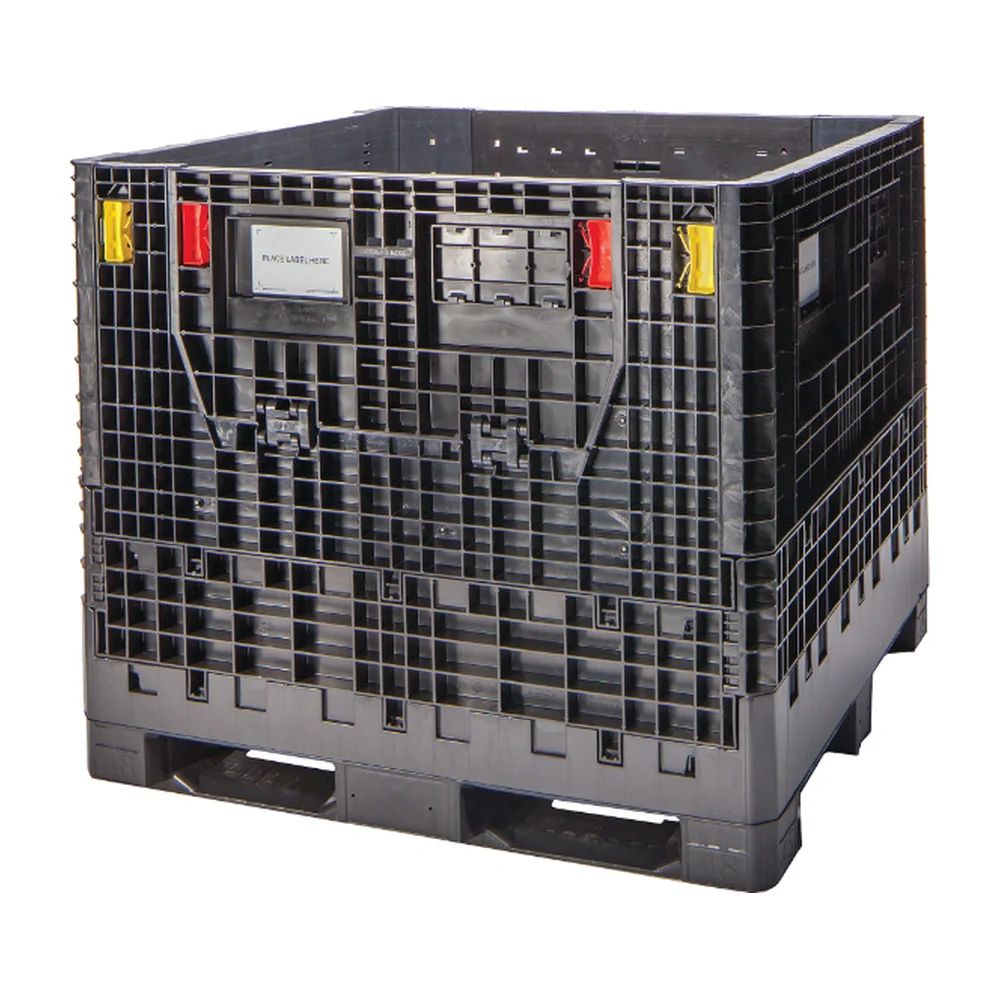

Collapsible bulk containers replace one-way corrugated gaylords with a durable, reusable pallet box. They are made from 100% recyclable HDPE with an injection-moulded, two-piece compression-welded base, and they stand up to impacts, moisture and repeated handling. The walls fold down when the container is empty, giving return ratios of up to 3.6:1. Drop doors let workers reach parts without climbing in or unstacking. Plastic latches and hinges are 100% field-repairable, and the containers work with forklifts, pallet jacks and automation.
Construction and features
- Injection-moulded, 100% recyclable HDPE
- Walls fold down for empty return and storage

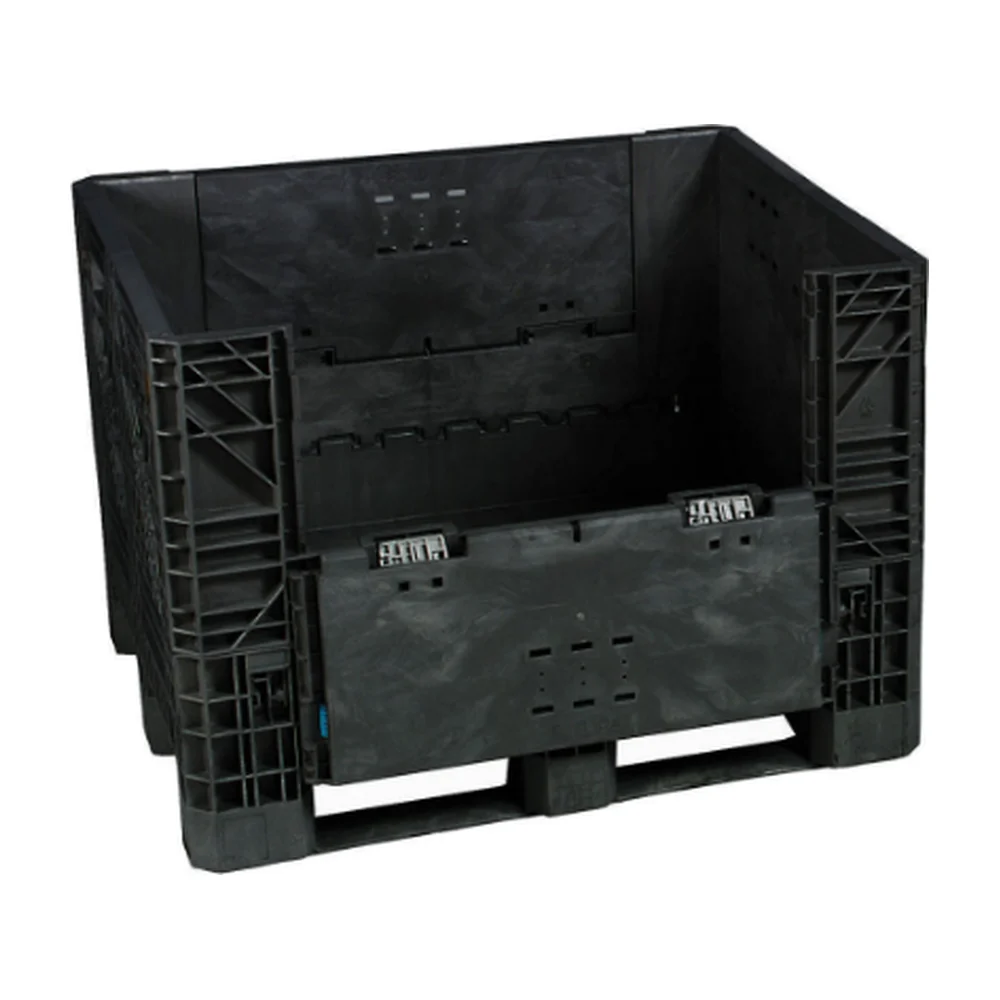

- Drop doors for easy access when stacked
- Four-way forklift and pallet jack entry
- Field-repairable plastic latches and hinges
- Optional lids (see Bulk Container Lids)
- Footprints: 24 × 44, 32 × 30, 48 × 40 and 48 × 45 in; colour: black (general purpose model in grey)
Collapsible bulk container sizes
Scroll sideways to see all specification columns. Capacity is based on an evenly distributed load and may be reduced by high temperatures or concentrated loads.
| Part number | Outside L × W × H (in) | Inside L × W × H (in) | Capacity (lbs) | Volume (cu ft) | Return ratio | Drop doors |
|---|---|---|---|---|---|---|
| JBBC24442520 | 24 × 44 × 25 | – | 1,800 | – | – | 2 |
| JBBC32302520 | 32 × 30 × 25 | 29-1/2 × 27-1/2 × 18-1/2 | 1,800 | 8.7 | 2:1 | 2 (long side) |
| JBBC32303420 | 32 × 30 × 34 | 29-1/2 × 27-1/2 × 27-1/2 | 1,800 | 12.9 | 2.7:1 | 2 (long side) |
| JBBC48403420 | 48 × 40 × 34 | 45 × 37 × 27-3/10 | 1,800 | 26.3 | 2:1 | 2 (long side) |
| JBBC48403920 | 48 × 40 × 39 | 45 × 37 × 32-3/10 | 1,800 | 31.1 | 2.5:1 | 2 (long side) |
| JBBC48452520 | 48 × 44-1/2 × 25 | 44-1/2 × 41-1/2 × 18-1/5 | 1,800 | 19.5 | 2:1 | 2 (long side) |
| JBBC48453420 | 48 × 44-1/2 × 33-4/5 | 44-1/2 × 41-1/2 × 27 | 1,800 | 28.9 | 2.7:1 | 2 (long side) |
| JBBC48454220 | 48 × 44-1/2 × 41-4/5 | 44-1/2 × 41-1/2 × 35 | 1,800 | 37.4 | 2:1 | 2 (long side) |
| JBBC48455020 | 48 × 44-1/2 × 49-4/5 | 44-1/2 × 41-1/2 × 43 | 1,800 | 46.0 | 1.75:1 | 2 (long side) |
| JBBG48404602 | 48 × 40 × 46 | 45 × 37 × 40 | 1,200 | 38.5 | 3.6:1 | 2 (short side) |
| JFBB48403222 | 48 × 40 × 32 | – | – | – | – | 4 (vented field bin) |
Ordering notes
Tell us your footprint, height and quantity, and whether you need lids. Use the inquiry form below and include your delivery location.
