Product overview

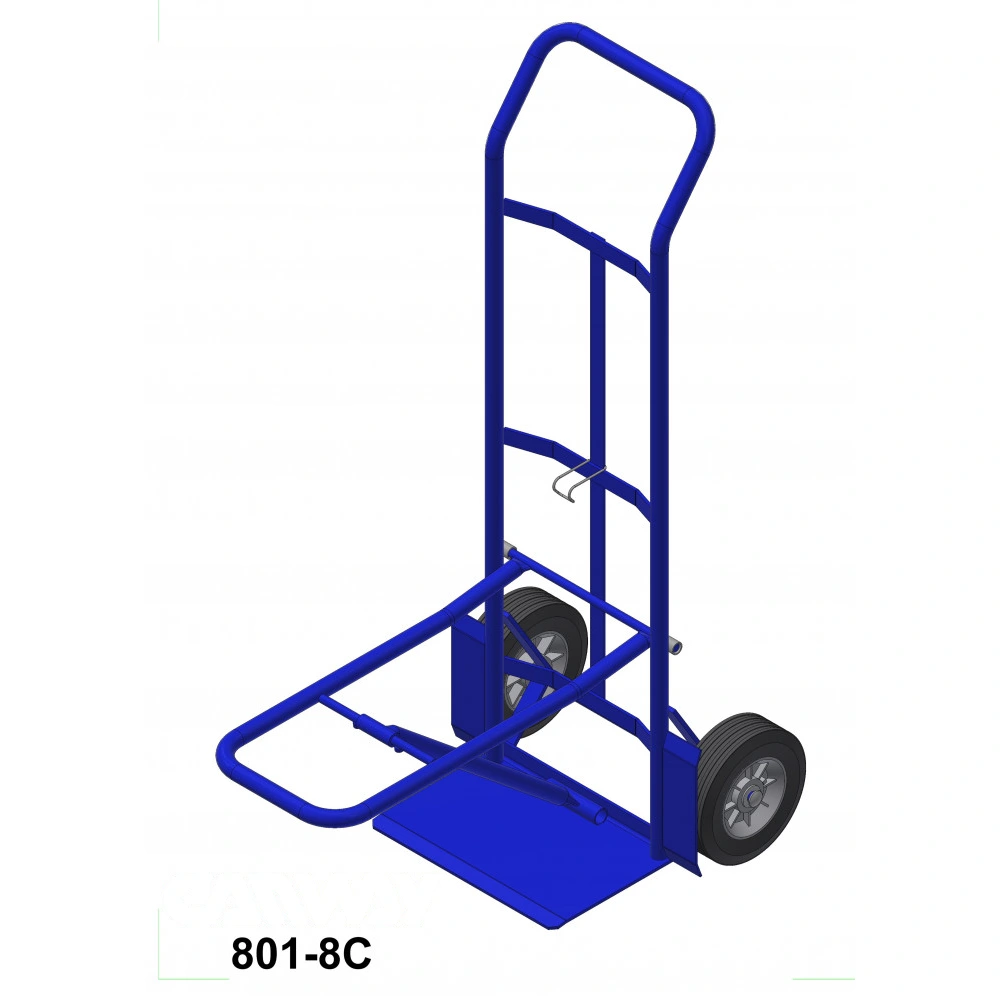

The chair mover hand truck has a loop handle and wheel guards, with a standard toe plate plus a fold-down elevated toe plate for handling chairs. Its steel frame has a blue powder-coat finish and a shared frame capacity of 1,000 lbs.
Construction and features
- Loop handle and wheel guards
- Steel tubing with 1-inch diameter and 14-gauge walls
- 14 x 8-inch toe plate
- Fold-down elevated toe plate measures 24 inches deep by 10-1/2 inches wide and sits 13-1/4 inches from the floor
- Blue powder-coat finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Overall Height (in) | Weight (lbs) | Toe Plate | Capacity (lbs) | Material | Handle Type | Finish | Colour | Wheel Size (in) | Wheel Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 801-8C | 20 | 17 | 47 | 47 | 37 | 14 x 8 | 1000 | Steel | Loop | Powder Coat | Blue | 8 x 2-1/2 | Cushion Rubber | 20 x 17 x 47 |
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
