Product overview
Cast iron casters and wheels are intended for applications where high load weights and sharp impacts are concerns. Cast iron offers high strength, but these wheels provide limited floor protection and may be unsuitable where quiet operation or protection of fragile loads is important.
Construction and features
- Cast iron construction provides strength against sharp impacts.
- Intended for applications involving excessive load weights where floor protection is not a priority.
- Operating temperature range: -45°F to +180°F.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Overall Height (in) | Weight (lbs) | Tread Width (in) | Caster Size (in) | Caster Type | Swivel Radius (in) | Stem Size (in) | Bearing Type | Tire Capacity |
|---|---|---|---|---|---|---|---|---|---|
| CAS-6CIC-RG | 7 1/2 | 11 | 2 | 6 | Cast Iron | Not listed | Not listed | Roller | 1250 |
| CAS-6CIC-SW | 7 1/2 | 12 1/2 | 2 | 6 | Cast Iron | 5 | Not listed | Roller | 1250 |
| CAS-6CIC-SW-TLB | 7-1/2 | 12-1/2 | Not listed | 6 | Cast Iron | Not listed | Not listed | Not listed | 1250 |
| CAS-8CIC-RG | 9 1/2 | 15 3/4 | 4 | 8 | Cast Iron | Not listed | Not listed | Roller | 1250 |
| CAS-8CIC-SW | 9 1/2 | 16 1/4 | 4 | 8 | Cast Iron | 6 1/2 | Not listed | Roller | 1250 |
Application notes
These wheels can be noisy and offer little floor protection. Avoid them where noise is a major concern or loads are fragile.
Photo and ordering notes

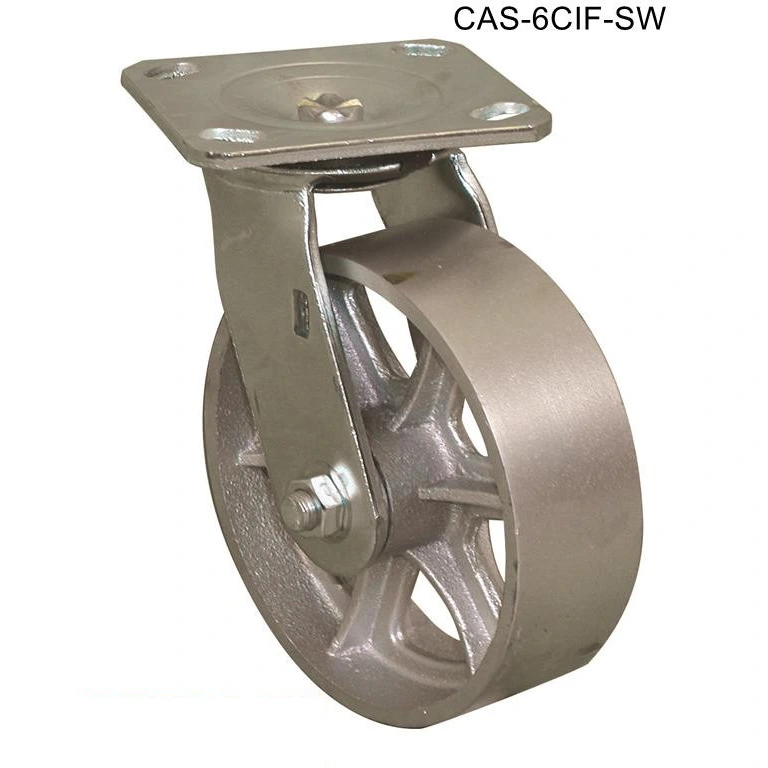

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
