Product overview
Angle-frame dollies provide a sturdy platform for transporting materials around a facility. Each configuration uses an angle-frame design, four phenolic swivel casters and a blue powder-coated finish.
Construction and features
- Frame made from 1-1/2-inch angle
- Four 4-inch phenolic swivel casters
- Blue powder-coated finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Weight (lbs) | Capacity (lbs) | Finish | Colour | Caster Size (in) | Caster Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| 18x18AFD-4PHL | 18 | 18 | 7 | 19 | 1200 | Powder Coat | Blue | 4 x 1-1/2 | Phenolic | 18 x 18 x 7 |
| 18x24AFD-4PHL | 18 | 24 | 7 | 20 | 1200 | Powder Coat | Blue | 4 x 1-1/2 | Phenolic | 18 x 24 x 7 |
| 24x24AFD-4PHL | 24 | 24 | 7 | 22 | 1200 | Powder Coat | Blue | 4 x 1-1/2 | Phenolic | 24 x 24 x 7 |
Photo and ordering notes

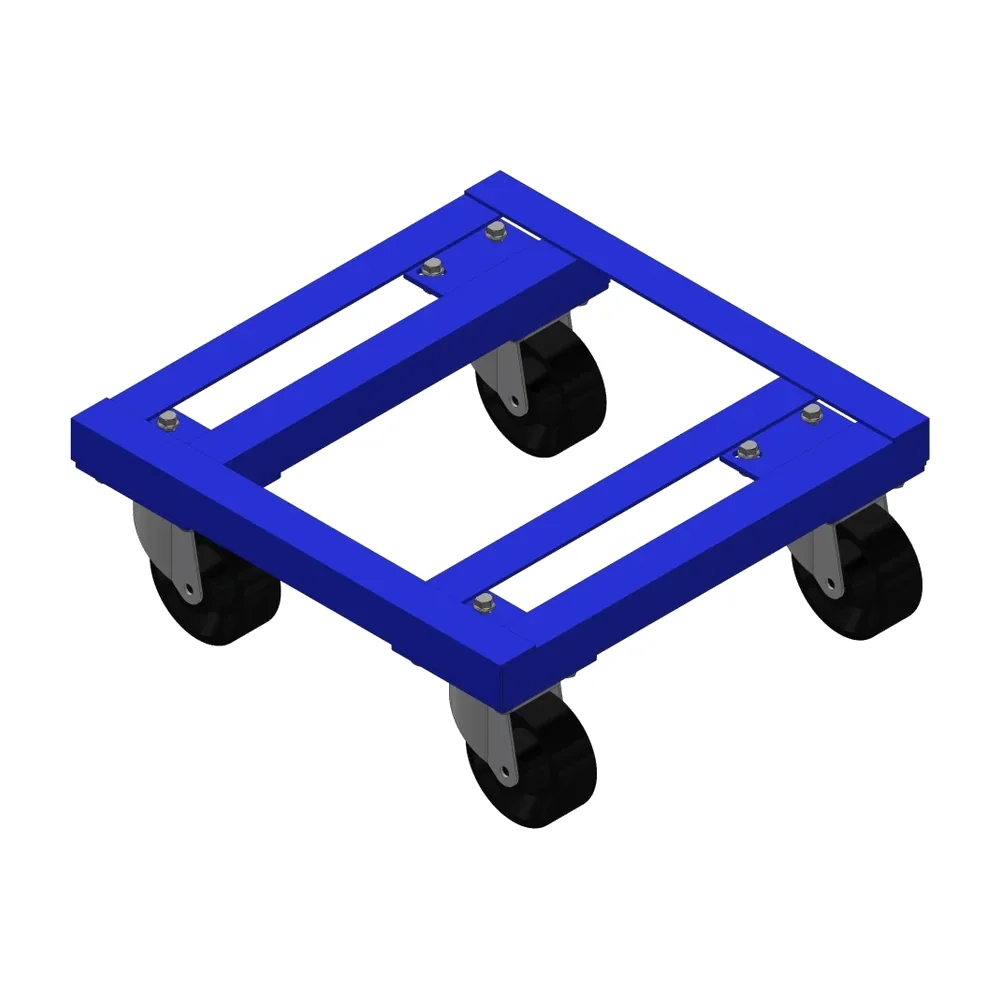

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
