Product overview

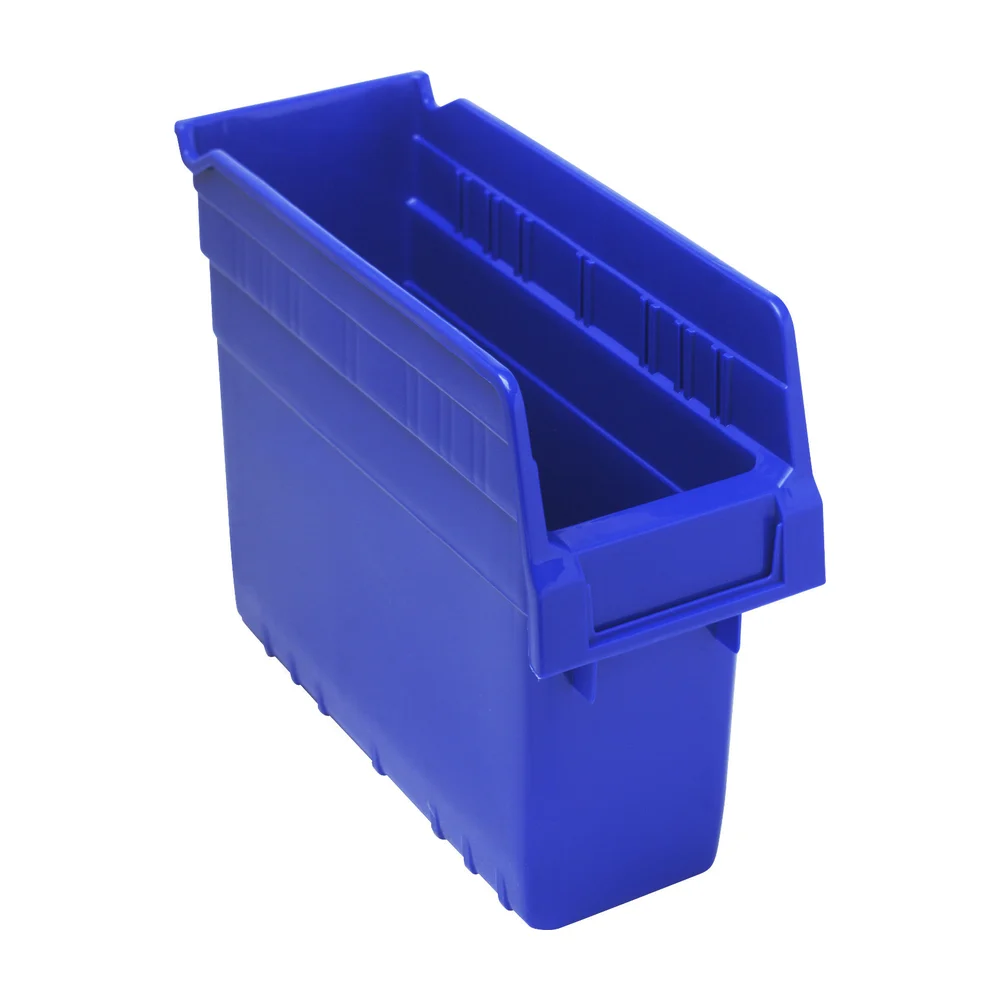

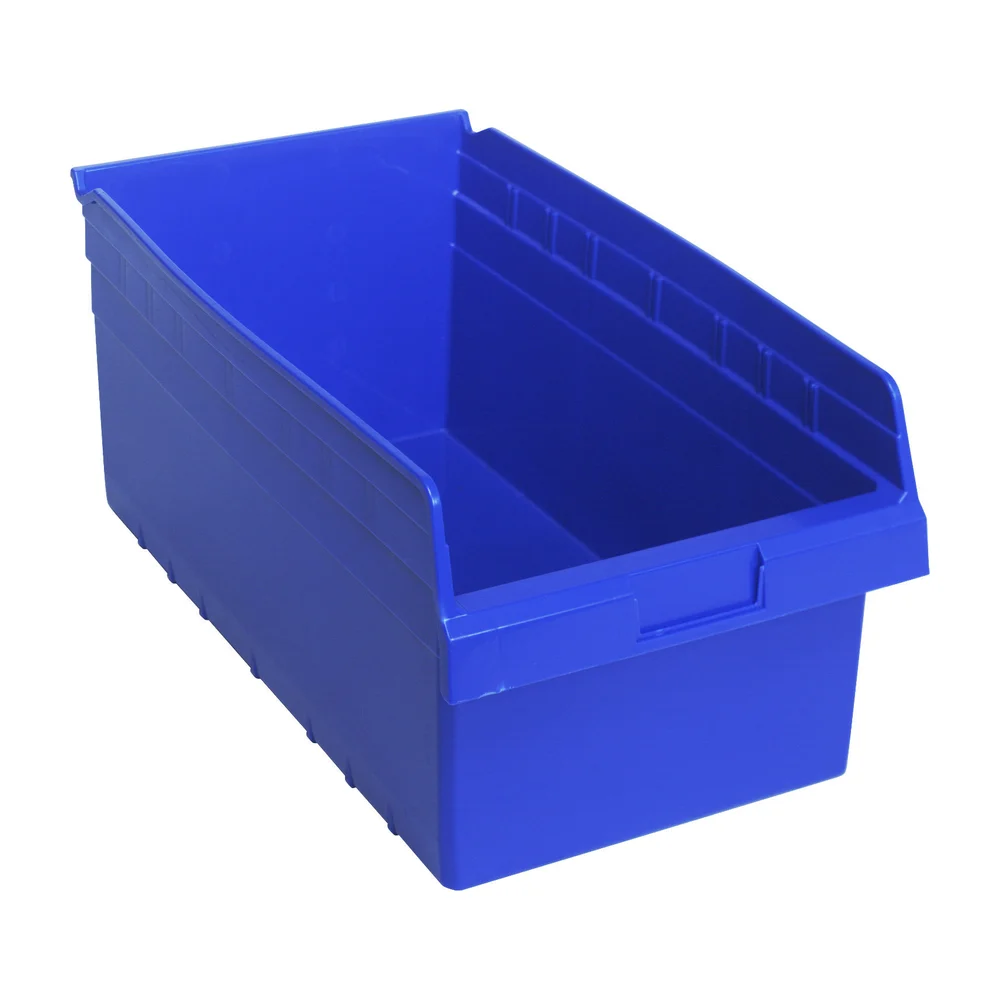

When 4- and 6-inch bins are too shallow, 8-inch shelf bins add height without extra shelf depth. They suit bulkier components, packaging, maintenance supplies and kits. The open front makes picking easy, and the ribbed walls keep the bin rigid when it is loaded. Choose the heavy-duty series for demanding use or the economy series for high-volume, budget-friendly storage.
Construction and features
- 8 inch height for bulky parts and supplies
- Fits 12, 18 and 24 inch deep steel and wire shelving
- Open hopper front with a label area
- Rigid, ribbed one-piece construction
- Heavy-duty series in blue or yellow; economy series in blue
Heavy-duty 8 inch shelf bins
Scroll sideways to see all specification columns. L is the front-to-back depth. Order in full carton quantities.
| Part number | Outside L × W × H (in) | Carton qty |
|---|---|---|
| JB30800 | 11-5/8 × 11-1/8 × 8 | 4 |
| JB30804 | 23-5/8 × 11-1/8 × 8 | 4 |
| JB30820 | 11-5/8 × 22-1/2 × 8 | 4 |
| JB30824 | 23-5/8 × 22-1/2 × 8 | 4 |
| JB30826 | 15-5/8 × 22-1/2 × 8 | 4 |
| JB30840 | 11-5/8 × 4-1/8 × 8 | 16 |
| JB30844 | 23-5/8 × 4-1/8 × 8 | 8 |
| JB30846 | 15-5/8 × 4-1/8 × 8 | 8 |
| JB30848 | 17-5/8 × 4-1/8 × 8 | 8 |
| JB30866 | 15-5/8 × 6-5/8 × 8 | 10 |
| JB30868 | 17-5/8 × 6-5/8 × 8 | 10 |
| JB30880 | 11-5/8 × 8-2/7 × 8 | 8 |
| JB30884 | 23-5/8 × 8-2/7 × 8 | 8 |
| JB30886 | 15-5/8 × 8-2/7 × 8 | 8 |
Economy 8 inch shelf bins
| Part number | Outside L × W × H (in) | Carton qty |
|---|---|---|
| JQBSB801 | 11-5/8 × 4-1/8 × 8 | 36 |
| JQBSB802 | 11-5/8 × 6-5/8 × 8 | 30 |
| JQBSB803 | 17-7/8 × 4-1/8 × 8 | 20 |
| JQBSB804 | 17-7/8 × 6-5/8 × 8 | 20 |
| JQBSB805 | 23-5/8 × 4-1/8 × 8 | 16 |
| JQBSB806 | 23-5/8 × 6-5/8 × 8 | 8 |
| JQBSB807 | 11-5/8 × 8-3/8 × 8 | 20 |
| JQBSB808 | 17-7/8 × 8-3/8 × 8 | 10 |
| JQBSB809 | 11-5/8 × 11-1/8 × 8 | 8 |
| JQBSB810 | 17-7/8 × 11-1/8 × 8 | 8 |
| JQBSB814 | 23-5/8 × 8-3/8 × 8 | 6 |
| JQBSB816 | 23-5/8 × 11-1/8 × 8 | 6 |
Ordering notes
Send us part numbers, colours and quantities, or the shelf size you need to fill, and we will put the quote together. Use the inquiry form below and include your delivery location.
