Product overview

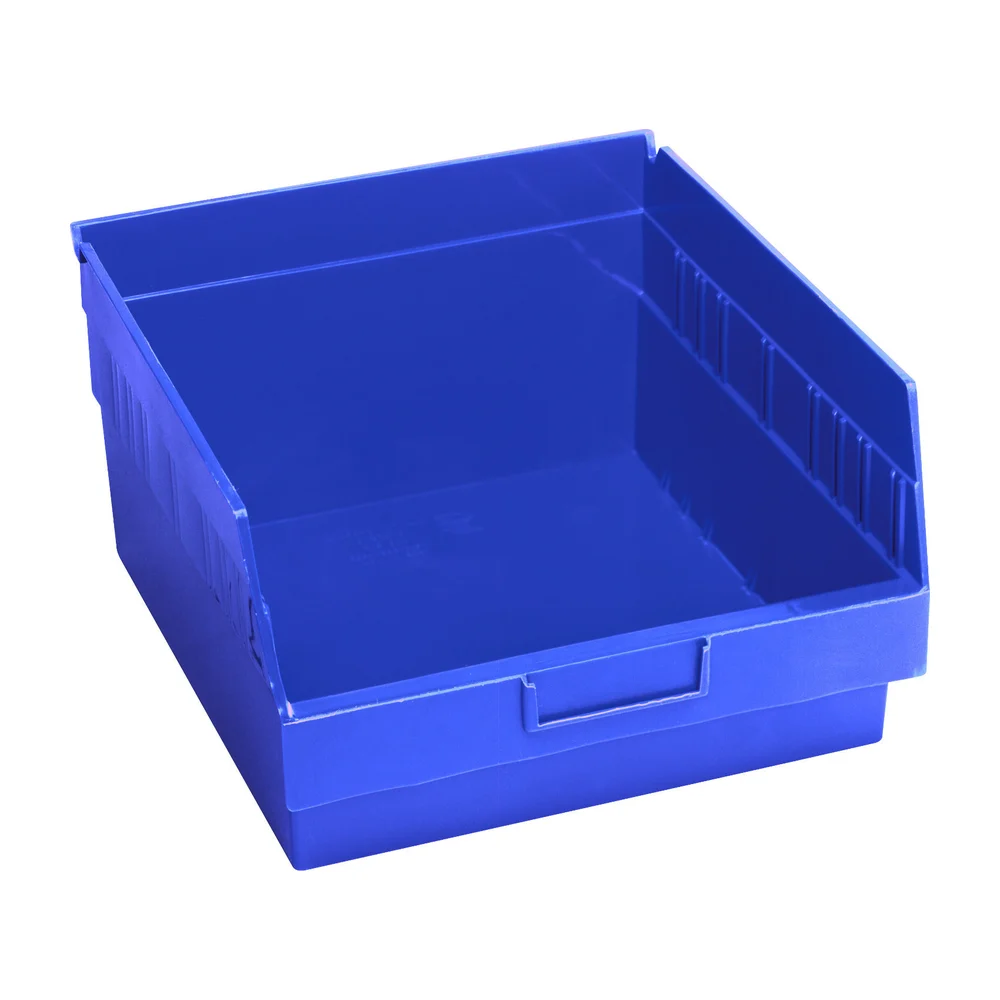

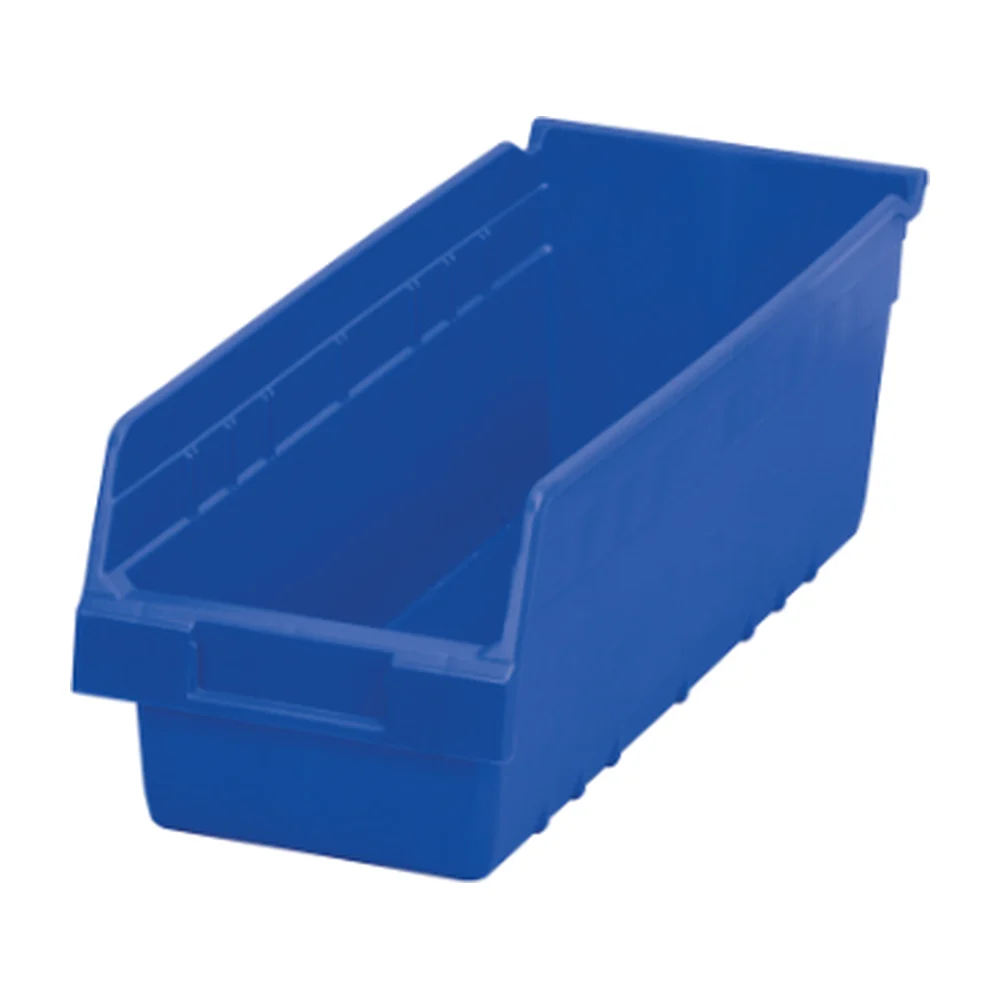

6-inch plastic shelf bins give you more storage per shelf opening than standard 4-inch bins. The front opening is taller for easier reach, reinforced side ribs and a rolled rim keep the bin rigid when it is full, and a rear hang-lock lets the bin tilt out from the shelf for full access. They work with steel and wire shelving, pick racks and bench racks.
Construction and features
- About 85% more capacity than a comparable 4 inch bin
- Taller front opening for easier access
- Reinforced side ribs and rolled top ridge
- Rear hang-lock lets the bin tilt out for full access
- Large front label area; accepts card stock holder JB29301 and angled label holders

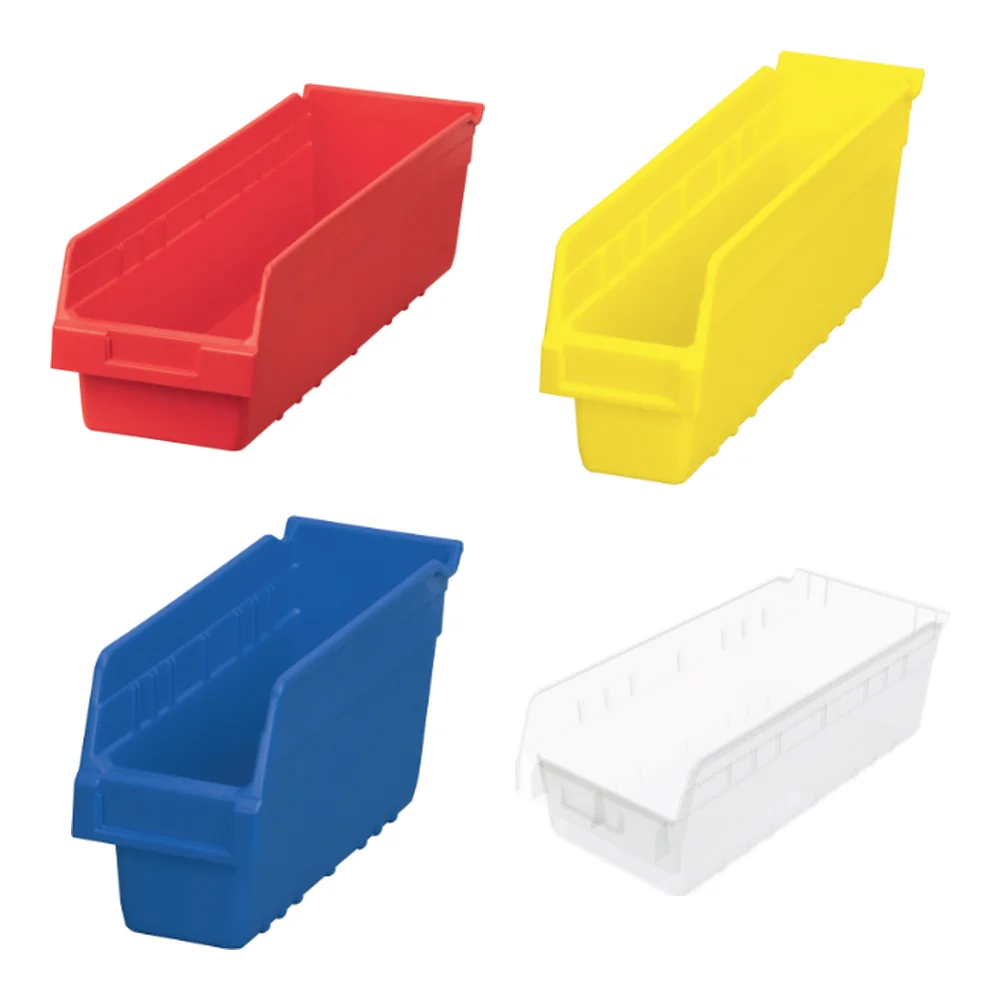

- Heavy-duty series colours: blue, red, yellow and clear. Economy series: blue
Heavy-duty 6 inch shelf bins

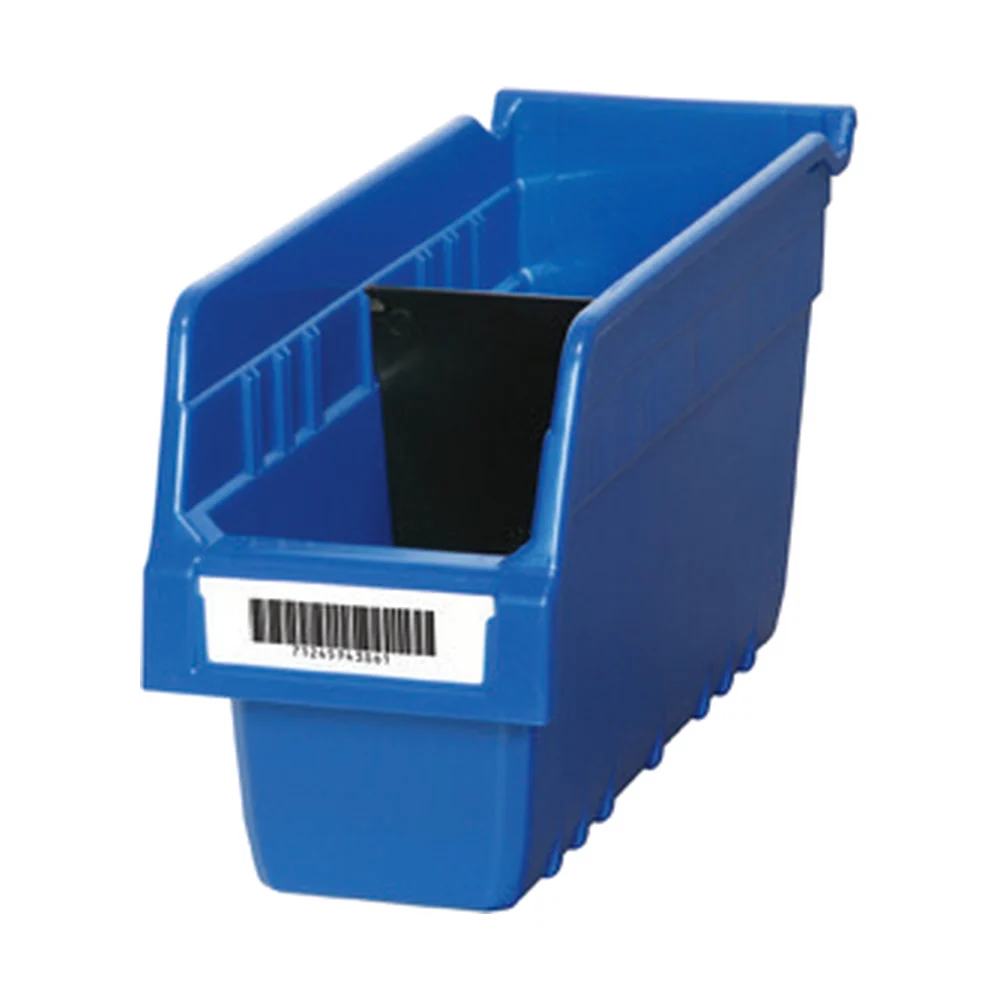

Black width dividers are sold separately.
Scroll sideways to see all specification columns. L is the front-to-back depth. Capacity is per bin with an evenly distributed load. Order in full carton quantities.
| Part number | Outside L × W × H (in) | Inside L × W × H (in) | Capacity (lbs) | Carton qty | Dividers |
|---|---|---|---|---|---|
| JB30040 | 11-5/8 × 4-1/8 × 6 | 9-3/4 × 2-1/2 × 5-15/16 | 20 | 16 | JB40020 |
| JB30090 | 11-5/8 × 6-5/8 × 6 | 9-3/4 × 5 × 5-15/16 | 30 | 10 | JB40030 |
| JB30080 | 11-5/8 × 8-3/8 × 6 | 9-3/4 × 6-5/8 × 5-15/16 | 35 | 8 | JB40040 |
| JB30048 | 17-7/8 × 4-1/8 × 6 | 16 × 2-1/2 × 5-15/16 | 25 | 8 | JB40020 |
| JB30098 | 17-7/8 × 6-5/8 × 6 | 16 × 5 × 5-15/16 | 35 | 10 | JB40030 |
| JB30088 | 17-7/8 × 8-3/8 × 6 | 16 × 6-5/8 × 5-15/16 | 35 | 8 | JB40040 |
| JB30094 | 23-5/8 × 6-5/8 × 6 | 21-3/4 × 5 × 5-15/16 | 35 | 10 | JB40030 |
| JB30084 | 23-5/8 × 8-3/8 × 6 | 21-3/4 × 6-5/8 × 5-15/16 | 35 | 6 | JB40040 |
| JB30044 | 23-5/8 × 4-1/8 × 6 | – | – | 16 | JB40020 |
| JB30014 | 23-5/8 × 11-1/8 × 6 | 21-3/4 × 9-1/2 × 5-15/16 | 35 | 6 | – |
Economy 6 inch shelf bins
A lighter, economical series in the same footprints, packed in larger cartons.
| Part number | Outside L × W × H (in) | Carton qty |
|---|---|---|
| JQBSB201 | 11-5/8 × 4-1/8 × 6 | 36 |
| JQBSB202 | 11-5/8 × 6-5/8 × 6 | 30 |
| JQBSB203 | 17-7/8 × 4-1/8 × 6 | 20 |
| JQBSB204 | 17-7/8 × 6-5/8 × 6 | 20 |
| JQBSB205 | 23-5/8 × 4-1/8 × 6 | 16 |
| JQBSB206 | 23-5/8 × 6-5/8 × 6 | 8 |
| JQBSB207 | 11-5/8 × 8-3/8 × 6 | 20 |
| JQBSB208 | 17-7/8 × 8-3/8 × 6 | 10 |
| JQBSB209 | 11-5/8 × 11-1/8 × 6 | 8 |
| JQBSB210 | 17-7/8 × 11-1/8 × 6 | 8 |
| JQBSB214 | 23-5/8 × 8-3/8 × 6 | 6 |
| JQBSB216 | 23-5/8 × 11-1/8 × 6 | 6 |
Ordering notes
Include part numbers, colours and quantities in your inquiry. We can quote matching shelving or pick racks too. Use the inquiry form below and include your delivery location.
