Product overview

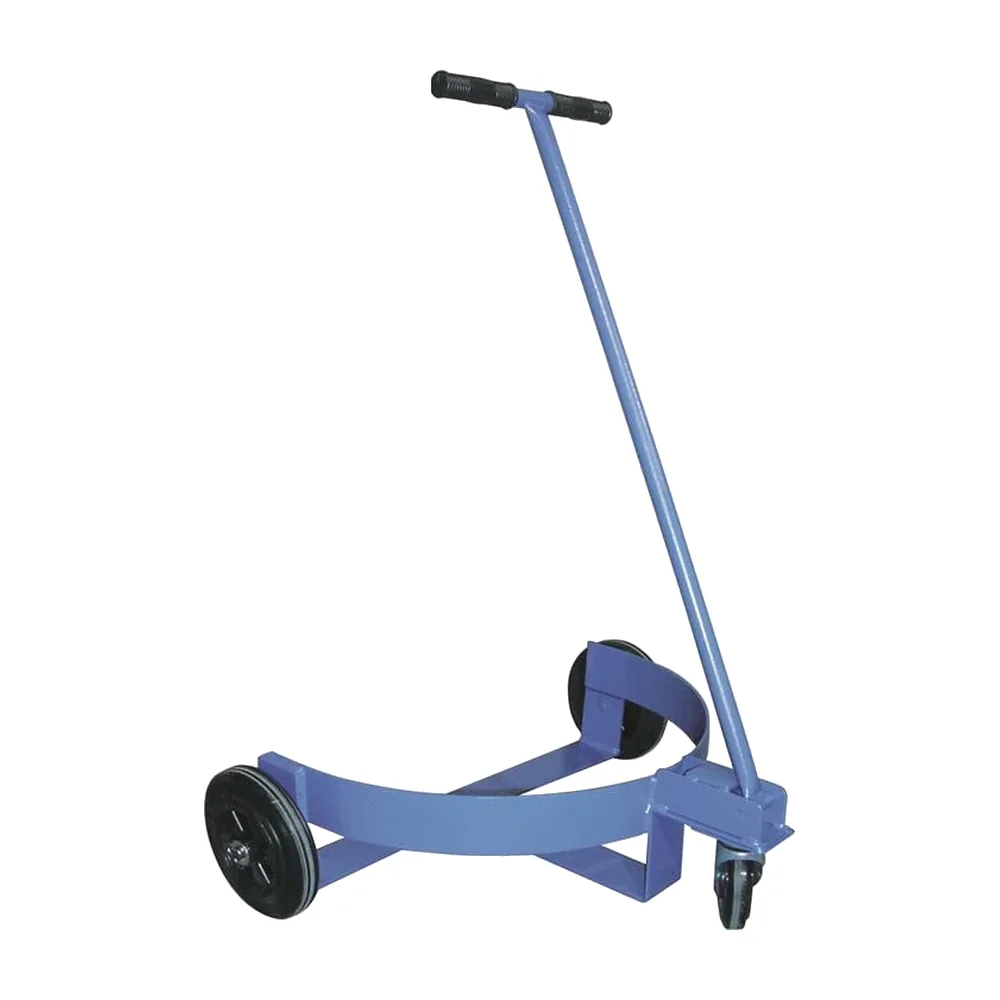

This open-frame drum truck is intended for moving 45-gallon drums. Its low-profile frame supports loading, while a T-bar pull handle and a combination of cushion-rubber wheels and a swivel caster provide the rolling arrangement.
Construction and features
- Designed for 45-gallon drums
- Low-profile frame for loading
- T-bar pull handle
- Two cushion-rubber wheels and one swivel rubber caster
- Blue powder-coat finish
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Weight (lbs) | Capacity (lbs) | Handle Type | Finish | Colour | Wheel Size (in) | Wheel Type | Caster Size (in) | Caster Type | Shipping Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3003 | 24 | 32 | 41 | 34 | 1000 | T-bar | Powder Coat | Blue | 8 x 2 | Cushion Rubber | 5 x 1-1/4 | Blue Rubber, Swivel | 32 x 24 x 41 |
Application notes
Use with 45-gallon drums only.
Photo and ordering notes
Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
