Product overview
These three-sided box carts combine an enclosed cargo area with an open side for access. A reinforced steel deck, welded construction, and handle at the swivel end make them practical for moving materials through work areas.
Construction and features
- Deck is reinforced with 14-gauge steel.
- Three-sided steel and mesh construction contains the load while allowing visibility.
- Push handle is positioned at the swivel end.
- Welded construction supports heavy-duty material handling.
- Four 5-inch blue rubber, non-marking casters include two swivel and two rigid wheels.
- Blue powder coat finish.
Models and specifications
Compare the complete part number before ordering. Units and any stated dimension order appear in the column headings. Confirm any unstated dimension order before ordering; shipping dimensions are not operating dimensions.
Scroll sideways to see all specification columns. “Not listed” means the supplier did not publish a value for that model.
| Part number | Width (in) | Depth (in) | Height (in) | Overall Height (in) | Weight (lbs) | Capacity (lbs) | Finish | Colour | Caster Size (in) | Caster Type | Shipping Size (in) | Inside Width (in) | Inside Length (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24x36TSM-5RSX | 24 | 36 | 48 | 57 | 106 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 42 x 25 x 57 | Not listed | Not listed |
| 24x36TSS-5RSX | 24 | 36 | 48 | 57 | 175 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 42 x 24 x 57 | Not listed | Not listed |
| 24x48TSM-5RSX | 24 | 48 | 48 | 57 | 118 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 54 x 25 x 57 | 24 | 45 |
| 24x48TSS-5RSX | 24 | 48 | 48 | 57 | 191 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 54 x 25 x 57 | Not listed | Not listed |
| 30x60TSM-5RSX | 30 | 60 | 48 | 57 | 135 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 66 x 31 x 57 | Not listed | Not listed |
| 30x60TSS-5RSX | 30 | 60 | 48 | 57 | 220 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 66 x 31 x 57 | Not listed | Not listed |
| 36x60TSM-5RSX | 36 | 60 | 48 | 57 | 150 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 66 x 37 x 57 | Not listed | Not listed |
| 36x60TSS-5RSX | 36 | 60 | 48 | 57 | 253 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 66 x 37 x 57 | Not listed | Not listed |
| 36x72TSM-5RSX | 36 | 72 | 48 | 57 | 170 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 78 x 37 x 57 | Not listed | Not listed |
| 36x72TSS-5RSX | 36 | 72 | 48 | 57 | 294 | 1000 | Powder Coat | Blue | 5 x 1-1/4 | Blue Rubber | 78 x 37 x 57 | 36 | 69 |
Photo and ordering notes

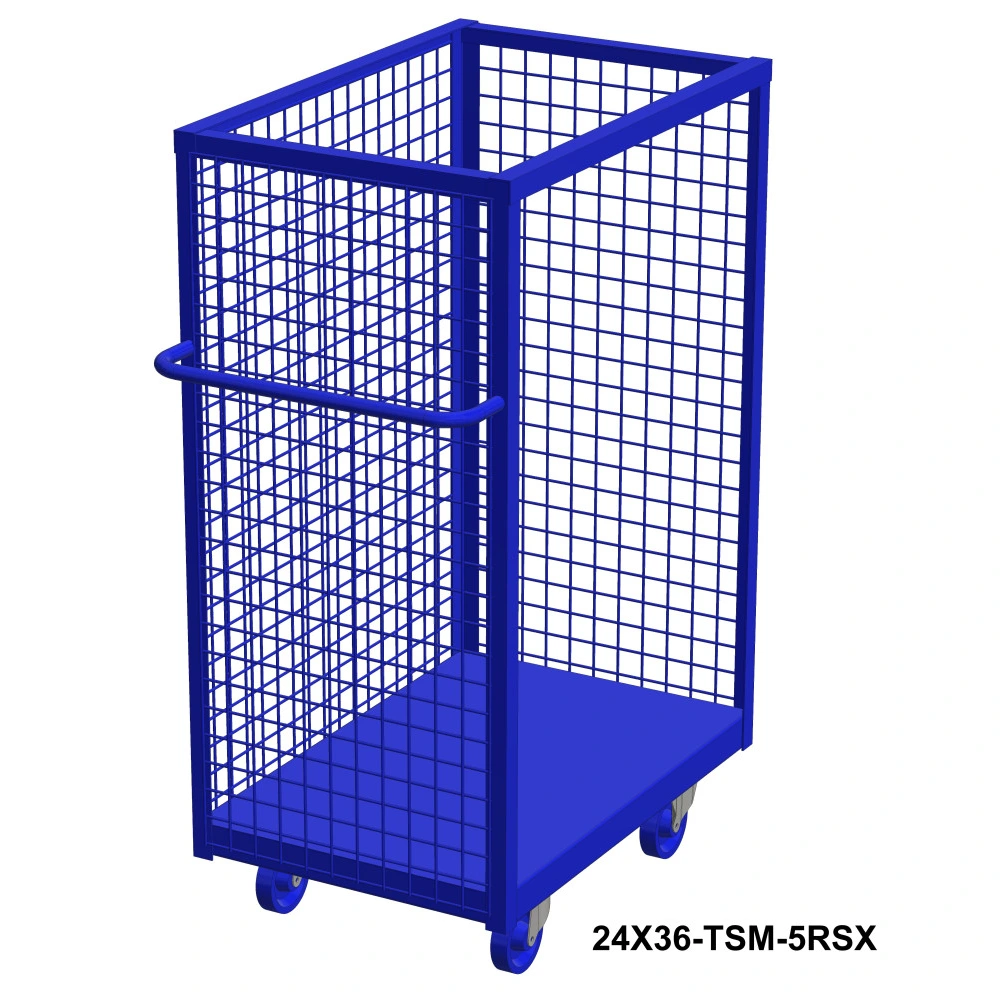

Photos show representative family configurations. Dimensions, materials, finishes, wheels and fittings can differ; use the selected part number and specification table rather than the photograph to define your order.
Include the complete part number, quantity, load details, any required options and your delivery location in the inquiry form. Confirm suitability for your operating conditions and follow the instructions supplied with the equipment.
