Product overview
4-inch plastic shelf bins are the go-to choice for organizing small parts on 12, 18 and 24 inch deep steel or wire shelving. The one-piece moulded bins are far stronger than corrugated bins, wipe clean, and resist weak acids, alkalis, water and rust. A wide front opening and built-in label slot make picking and identifying parts quick, and optional dividers and lift-out bin cups let you split each bin into compartments.
Construction and features
- One-piece moulded industrial-grade polymer construction
- Sized to fit 12, 18 and 24 inch deep shelving
- Label slot on the front accepts card stock holders and angled label holders

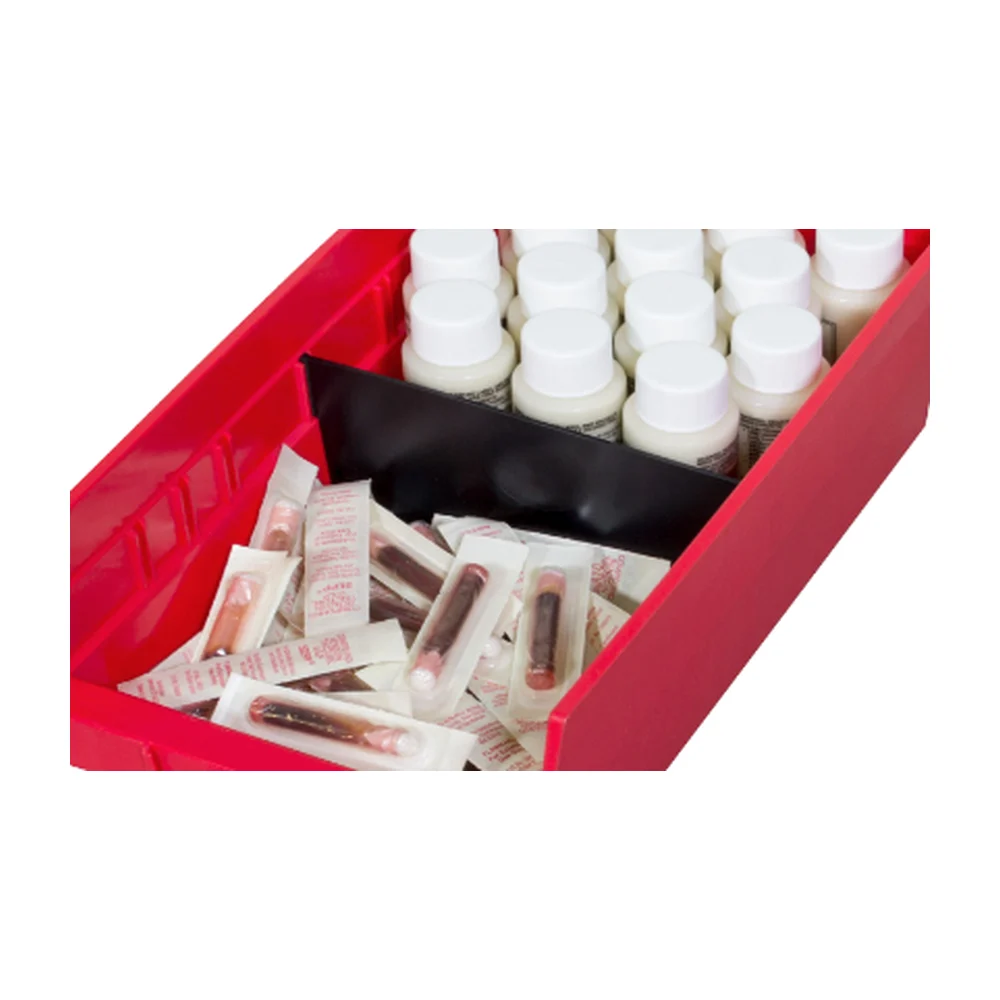

- Moulded divider slots (up to 7) for black width dividers, sold separately

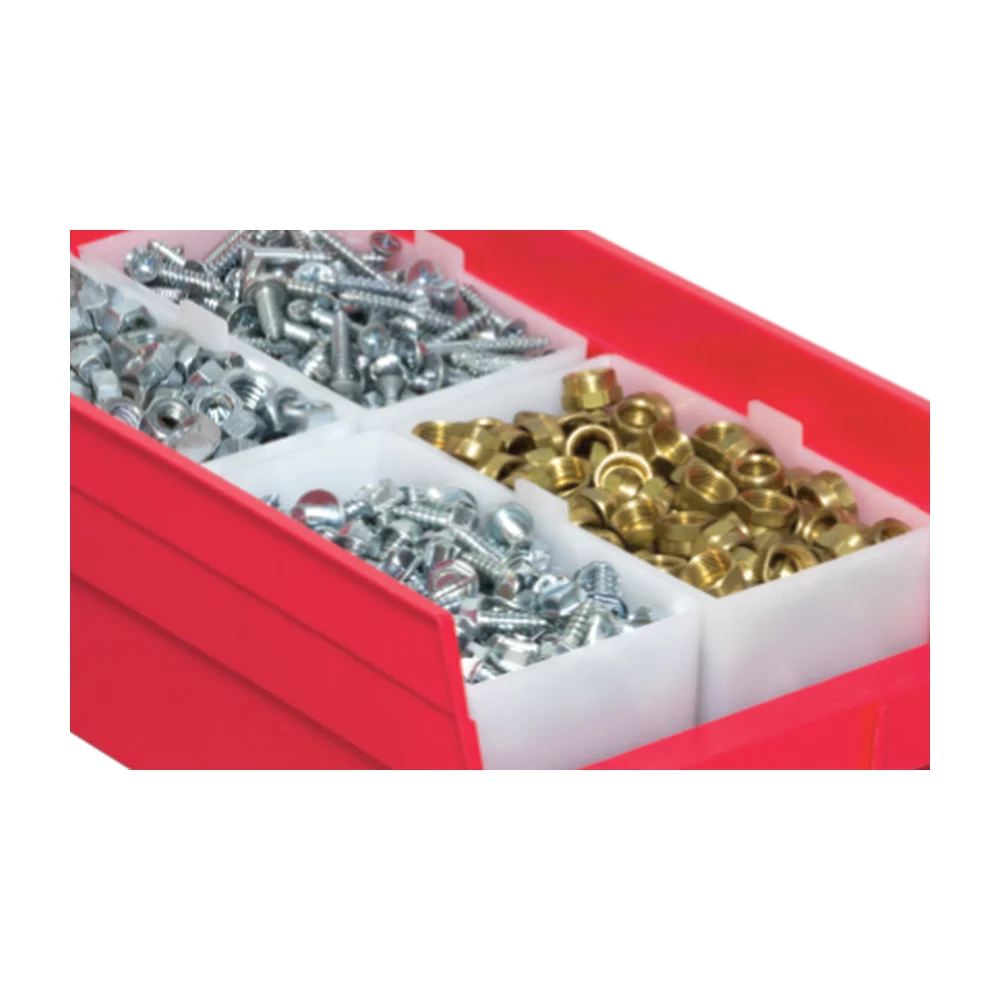

- Optional lift-out small and large bin cups for very small parts

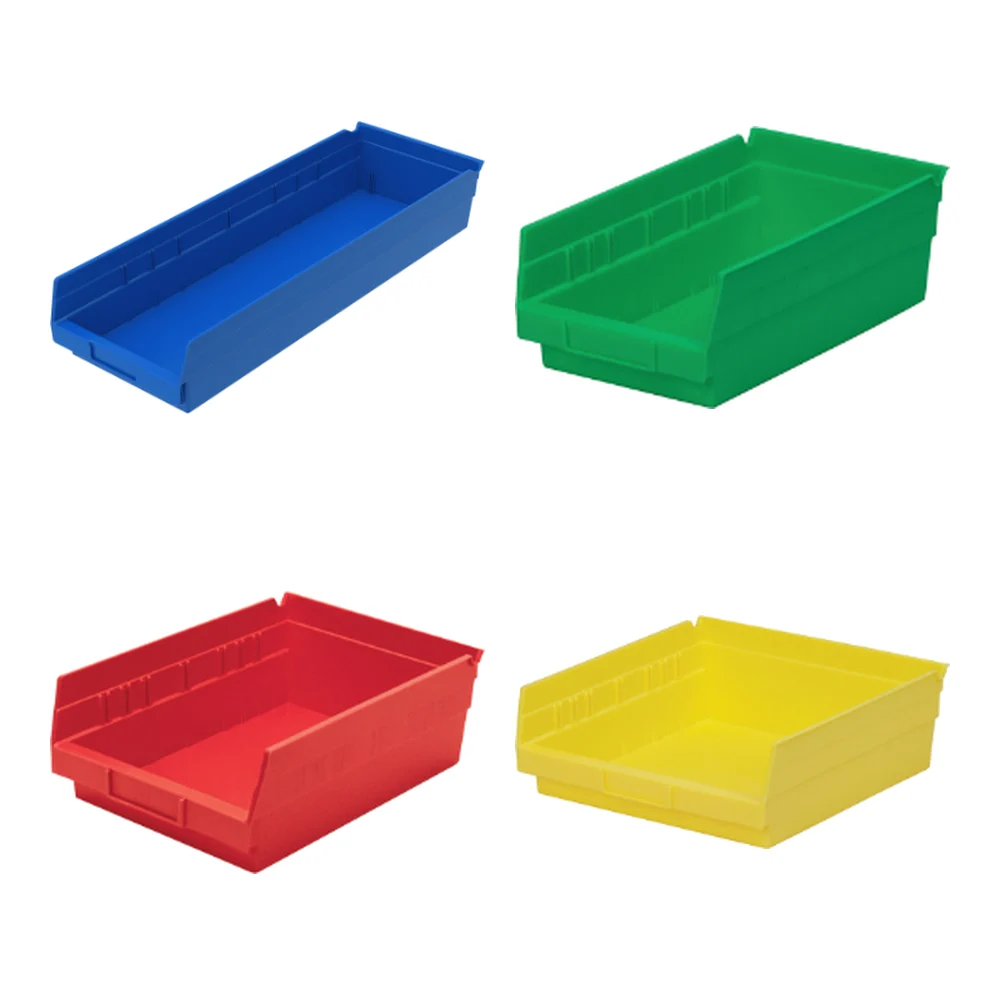

- Standard colours: blue, red, yellow, green, stone, black and clear
4 inch shelf bin sizes
Card stock holder JB29300 fits all sizes (cut to length for JB30110).
Scroll sideways to see all specification columns. L is the front-to-back depth. Capacity is per bin with an evenly distributed load. Order in full carton quantities.
| Part number | Outside L × W × H (in) | Inside L × W × H (in) | Capacity (lbs) | Carton qty | Small cups / bin | Large cups / bin | Dividers |
|---|---|---|---|---|---|---|---|
| JB30110 | 11-5/8 × 2-3/4 × 4 | 10-1/4 × 1-5/8 × 4 | 7 | 24 | 3 | – | – |
| JB30120 | 11-5/8 × 4-1/8 × 4 | 10-1/4 × 3 × 4 | 10 | 24 | 5 | 2 | JB40120 |
| JB30130 | 11-5/8 × 6-5/8 × 4 | 10-1/4 × 5-1/2 × 4 | 15 | 12 | 9 | 4 | JB40130 |
| JB30150 | 11-5/8 × 8-3/8 × 4 | 10-1/4 × 7-1/8 × 4 | 15 | 12 | 11 | 4 | JB40150 |
| JB30170 | 11-5/8 × 11-1/8 × 4 | 10-1/4 × 10 × 4 | 20 | 12 | 15 | 6 | JB40170 |
| JB30128 | 17-7/8 × 4-1/8 × 4 | 16-1/2 × 3 × 4 | 15 | 12 | 8 | 3 | JB40120 |
| JB30138 | 17-7/8 × 6-5/8 × 4 | 16-1/2 × 5-1/2 × 4 | 20 | 12 | 15 | 6 | JB40130 |
| JB30158 | 17-7/8 × 8-3/8 × 4 | 16-1/2 × 7-1/8 × 4 | 20 | 12 | 15 | 6 | JB40150 |
| JB30178 | 17-7/8 × 11-1/8 × 4 | 16-1/2 × 10 × 4 | 20 | 12 | 25 | 12 | JB40170 |
| JB30124 | 23-5/8 × 4-1/8 × 4 | 22-1/8 × 3 × 4 | 20 | 12 | 11 | 4 | JB40120 |
| JB30164 | 23-5/8 × 6-5/8 × 4 | 22-1/8 × 5-1/2 × 4 | 20 | 6 | 21 | 8 | JB40130 |
| JB30184 | 23-5/8 × 8-3/8 × 4 | 22-1/8 × 7-1/8 × 4 | 20 | 6 | 25 | 8 | JB40150 |
| JB30174 | 23-5/8 × 11-1/8 × 4 | 22-1/8 × 10 × 4 | 20 | 6 | 35 | 16 | JB40170 |
Ordering notes
Tell us the part numbers, colours and quantities you need. Dividers, bin cups and label holders are listed on the Bin Accessories pages. Use the inquiry form below and include your delivery location.
